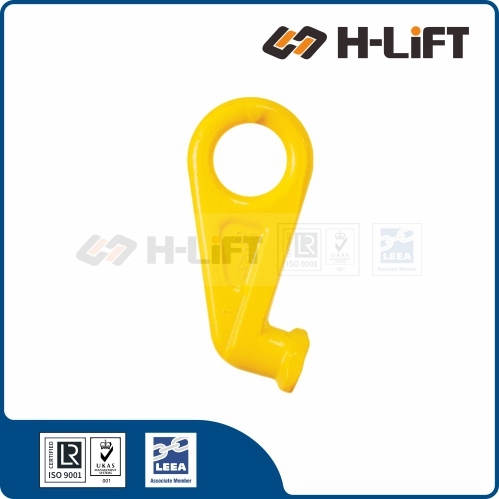

The Grade 80 Container Hook (CTK Type) is a specialized, heavy-duty lifting component engineered specifically for the safe and efficient hoisting of ISO shipping containers. It is designed to connect directly and securely into the standard corner casting twist-lock pockets of shipping containers, making it an essential tool for port operations and logistics.

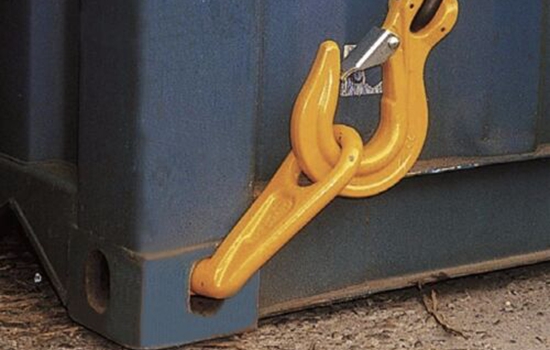

*Locks into bottom corner casting with 90° turn
| Requirement | Configuration | Important Note |
|---|---|---|
| Quantity | Set of 4 Hooks | Never lift a container with fewer than 4 points. |

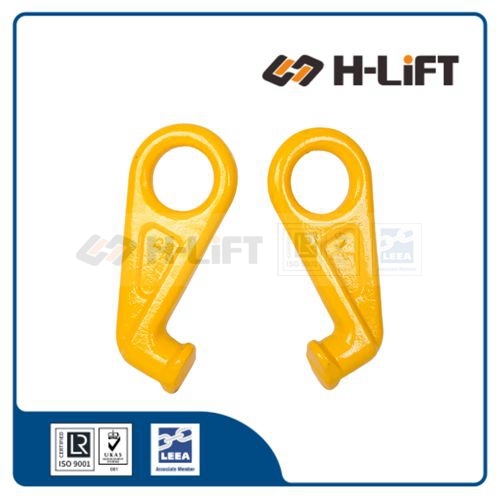

| Orientation | 2x Left + 2x Right | Hooks are marked "L" or "R". They must be installed symmetrically to ensure proper engagement. |
| Rigging Method | Use Spreader Beam | Lifting angle should be vertical to prevent hook disengagement. Max angle 45° from vertical. |

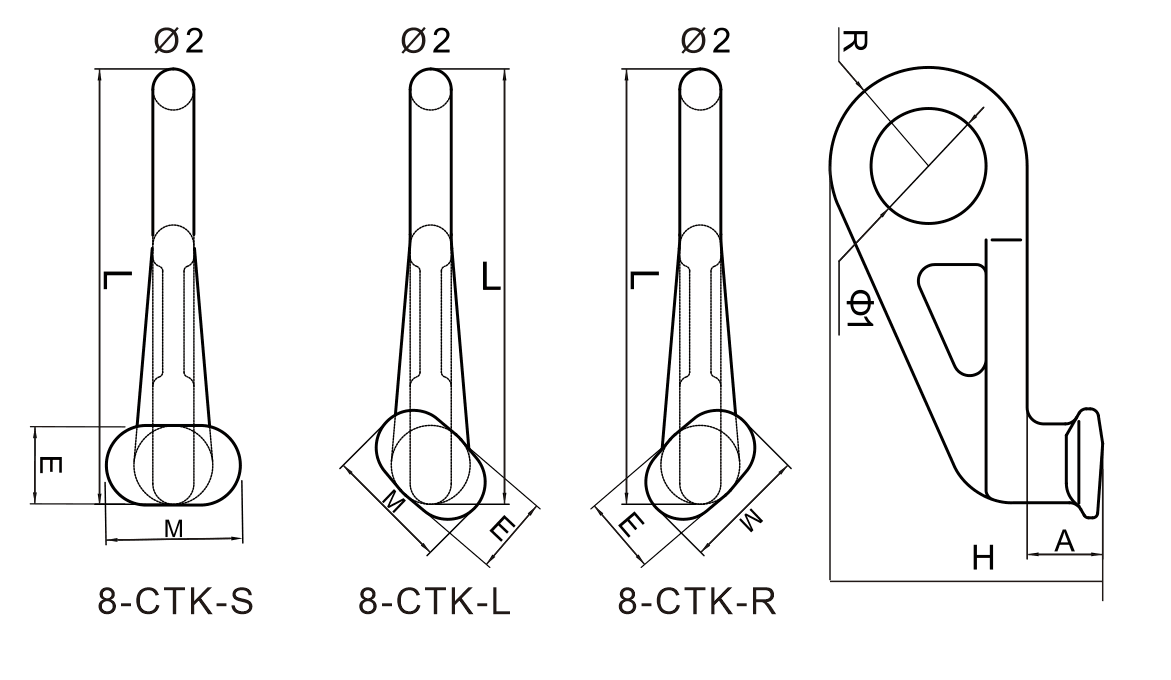

| Item No. | Type | WLL (t) |
Dimensions (mm) | Weight (kg) |
Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M | H | E | R | Φ1 | Φ2 | L | |||||

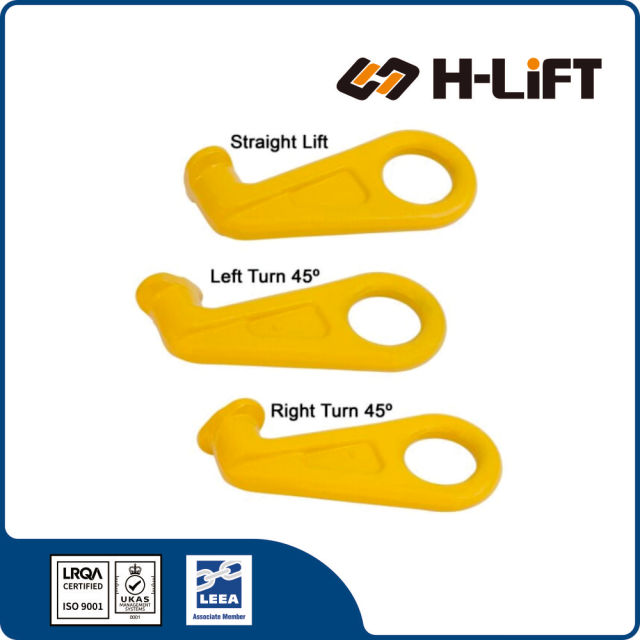

| 8-CTK-S | Straight | 12.5 | 46 | 75 | 166 | 46 | 60 | 70 | 25 | 265 | 4.12 | 502031001 |
| 8-CTK-L | Left | 12.5 | 46 | 75 | 166 | 46 | 60 | 70 | 25 | 265 | 4.12 | 502031002 |
| 8-CTK-R | Right | 12.5 | 46 | 75 | 166 | 46 | 60 | 70 | 25 | 265 | 4.12 | 502031003 |

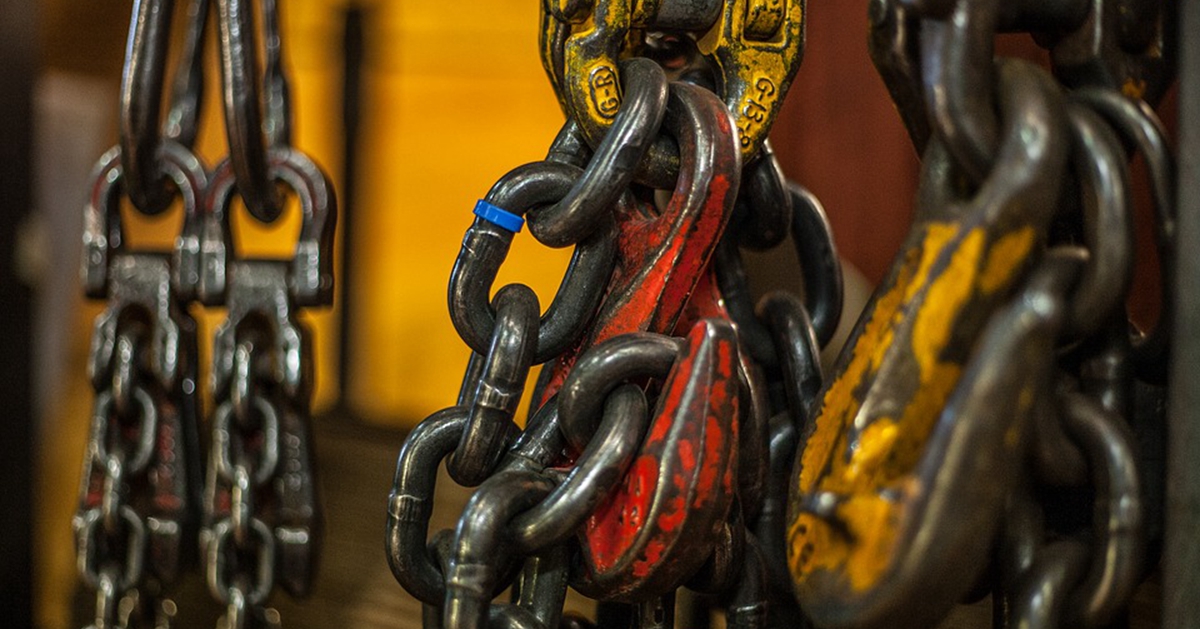

Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
