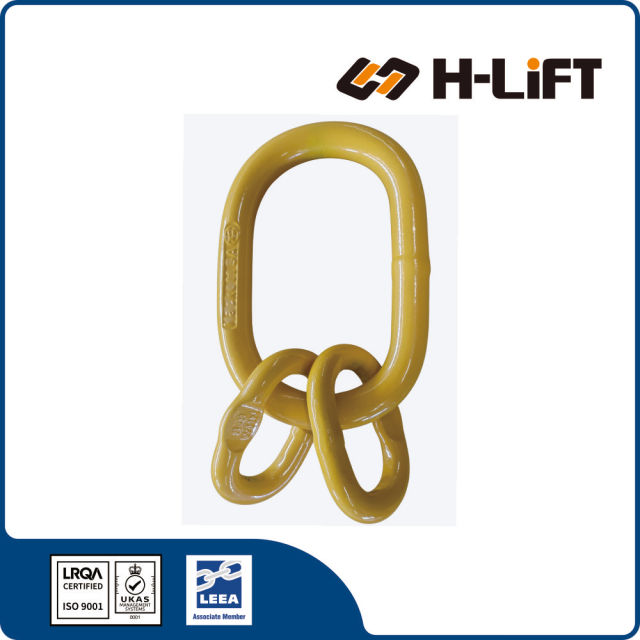

The Grade 80 European Type Master Link Assembly (MAU Type) is a high-strength alloy steel head-ring equipped with two intermediate sub-links. It is engineered specifically to serve as the upper terminal for 3-leg and 4-leg chain sling assemblies, fully complying with EN 1677-4 and EN 818 standards.
The MAU Master Link Assembly is the standard European head-ring configuration for constructing heavy-duty 3-leg and 4-leg chain slings. Featuring a primary master link with two intermediate sub-links, it ensures proper multi-point load distribution and prevents the crowding of connecting hardware at the crane hook.
| Size Range | Method | Performance Benefit |
|---|---|---|
| Small to Medium (6mm - 18mm) |
Flash Butt Welded | High-quality welded construction. Ensures consistent tensile strength and offers a highly cost-effective solution for standard capacities. |
| Large Sizes (20mm and above) |
Drop Forged Main Link | The massive primary master link is Drop Forged for superior structural integrity in extreme heavy-lift scenarios, while the intermediate sub-links remain welded. |
| Item No. | Chain Size (mm) |
WLL (Tonnes) |
Main Link Dimensions (mm) | Sub Link Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | a | b | d | |||||
| 8-MAU-06 | 6 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 1.18 | 502041006 |
| 8-MAU-07 | 7 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 1.24 | 502041007 |
| 8-MAU-08 | 8 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 2.20 | 502041008 |
| 8-MAU-10 | 10 | 6.70 | 180 | 100 | 26 | 85 | 40 | 18 | 3.40 | 502041010 |
| 8-MAU-13 | 13 | 11.20 | 200 | 110 | 32 | 115 | 50 | 22 | 6.10 | 502041013 |
| 8-MAU-16 | 16 | 17.00 | 260 | 140 | 36 | 140 | 65 | 26 | 9.98 | 502041016 |
| 8-MAU-18 | 18 | 21.20 | 340 | 180 | 45 | 180 | 100 | 32 | 18.90 | 502041018 |
| 8-MAU-20 | 20 | 26.50 | 350 | 190 | 50 | 180 | 100 | 32 | 23.70 | 502041020 |
| 8-MAU-22 | 22 | 31.50 | 350 | 190 | 50 | 180 | 100 | 36 | 25.20 | 502041022 |
| 8-MAU-26 | 26 | 45.00 | 400 | 200 | 56 | 180 | 100 | 40 | 35.20 | 502041026 |
| 8-MAU-28 | 28 | 50.00 | 430 | 220 | 63 | 180 | 100 | 45 | 47.00 | 502041028 |
| 8-MAU-32 | 32 | 67.00 | 460 | 250 | 72 | 200 | 110 | 50 | 66.46 | 502041032 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
