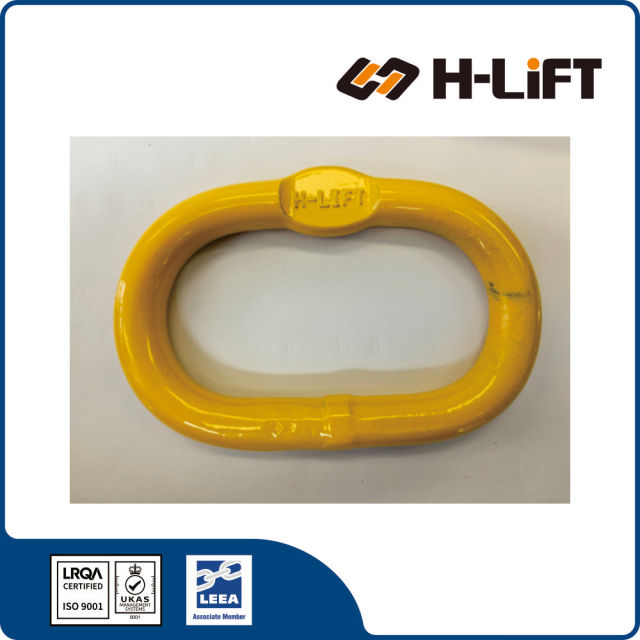

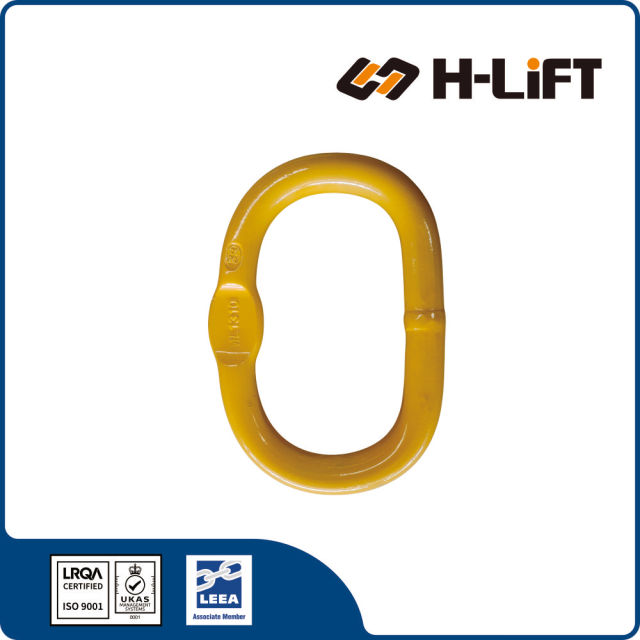

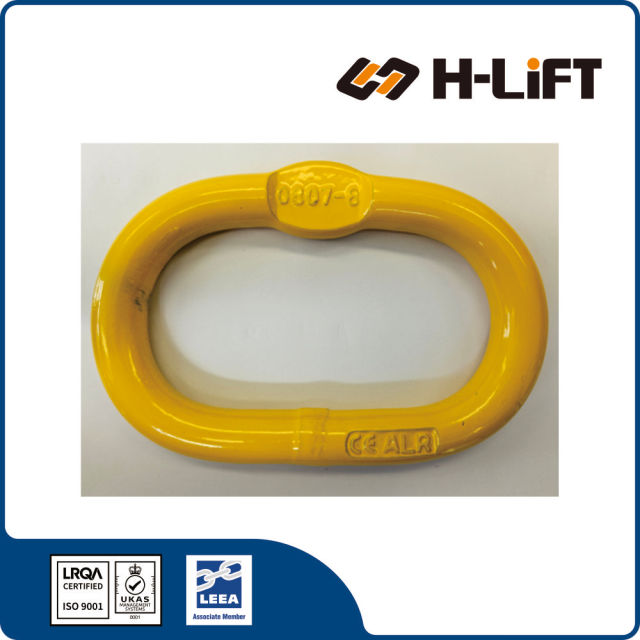

Grade 80 European type Welded Master Link, MLU type
Grade 80 European type Welded Master Link, MLU type Grade 80 European type Welded Master Link, MLU type Grade 80 European type Welded Master Link, MLU type
  • Grade 80 European type Welded Master Link, MLU type

Grade 80 European type Welded Master Link, MLU type

Item No.: 502040
Grade 80 Euorpean type welded master link for 1-leg or 2-leg lifting chain sling.
G80 master links are used on top of lifting sets and their role is to fix the chain, wire rope or textile sling leg(s) to the existing upper clamping system (usually hooks)
Request Quote
Description
Description

H-Lift Grade 80 European type Welded Master Link, MLU type features:

  • Grade 80 master link for 1-leg or 2-leg lifting chain sling.
  • Master link: link forming the upper terminal of a sling by means of which the sling is attached to the hook of a crane or other lifting machine.
  • Standard: EN1677
  • Material: alloy steel, quenched and tempered
  • Surface finish: powder coated
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Engineered flat for use with omega link
Grade 80 Master Link & Master Link Assembly
Grade 80 Master Link
Grade 80 Master Link

Item No. WLL Main Dimensions(mm) Weight Product Code
ton A B D kg
8-MLU-0706 1.6 110 60 13 0.34 5020400706
8-MLU-0807 2.12 110 60 16 0.54 5020400807
8-MLU-1008 3.15 135 75 18 0.823 5020401008
8-MLU-1310 5.3 160 90 22 1.5 5020401310
8-MLU-1613 8 180 100 26 2.32 5020401613
8-MLU-1816 11.2 200 110 32 3.95 5020401816
8-MLU-2018 14 260 140 36 6.34 5020402018
8-MLU-2220 17 300 160 40 8.96 5020402220
8-MLU-2622 21.2 340 180 45 12.8 5020402622
8-MLU-3226 31.5 350 190 50 16.55 5020403226
8-MLU-3632 45 400 200 56 23.28 5020403632
8-MLU-4036 56 430 220 63 32 5020404036
8-MLU-0072 63 460 250 72 45.76 5020400072

* 8-MLU-2622 and above are forged.
