Home > Lifting Chain, Chain Sling & Components > Grade 80 Sling Components > Grade 80 Miscellaneous Ho...

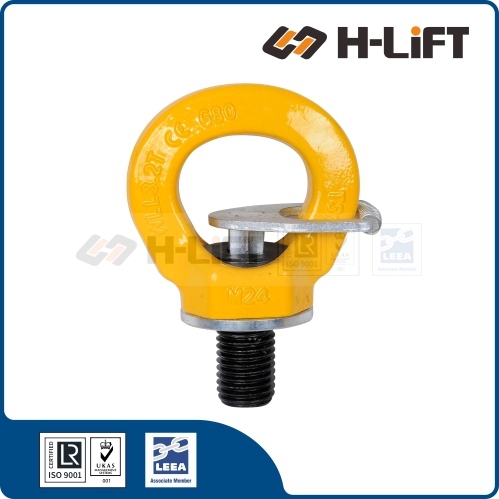

Grade 80 Eye Bolt With Key EBK Type

Grade 80 Eye Bolt With Key EBK Type

Description

Description

H-Lift Grade 80 Eye Bolt With Key, EBK Type features:

Rotates through 360° adjustable in the direction of the load.
Can be fixed in position by the key.
Quenched & tempered.
100% Magnaflux Crack Detection.
Standard: EN 1677
Material: Forged alloy steel
Proof load: 2.5 times the Working Load Limit
Safety factor: 4:1
Surface finish: Powder coated

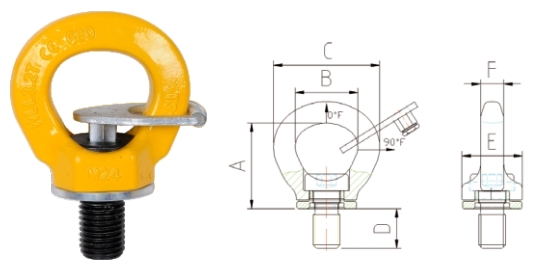

Grade 80 Eye Bolt With Key

Item No.	Size	WLL/T		Main Dimensions(mm)						Weight	Product Code
Item No.	mm	WLL 0°	WLL 90°	A	B	C	D	E	F	kg	Product Code
8-EBK-08	M8	0.8	0.3	38	26	45.3	11.5	25	8	0.11	502038008
8-EBK-10	M10	1	0.4	38	26	45.3	14	25	8	0.12	502038010
8-EBK-12	M12	2	0.75	43.5	32	54	17	33	10	0.2	502038012
8-EBK-16	M16	4	1.5	52	37.5	63.5	24	36	14	0.35	502038016
8-EBK-20	M20	6	2.3	63	44.5	78.5	30	47.5	20.6	0.66	502038020
8-EBK-24	M24	8	3.2	74	51.6	92	35.3	53	20	1.1	502038024
8-EBK-30	M30	12	4.5	92	65	118	45	68	24	2.07	502038030
8-EBK-36	M36	16	7	105	76	136	56.8	82	30	4	502038036
8-EBK-42	M42	24	9	121.5	88	160	66.5	92	35	5.52	502038042
8-EBK-48	M48	32	12	138	100	180	75.5	110	42	8.86	502038048
