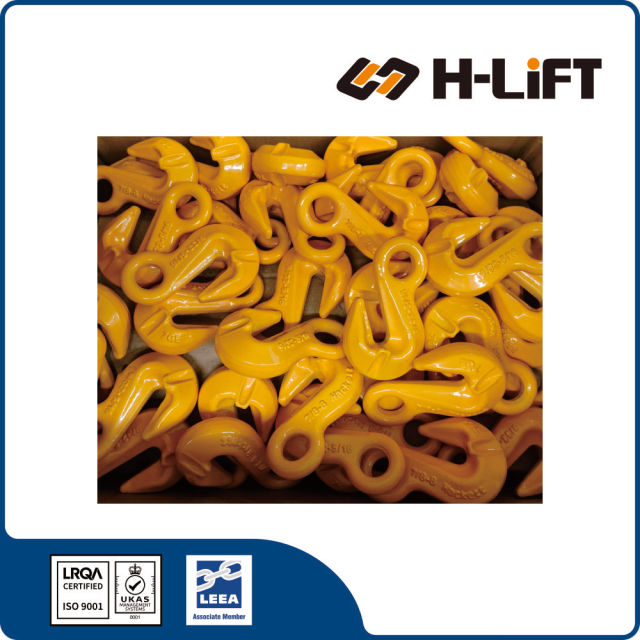

The Grade 80 Eye Cradle Grab Hook (EGK Type) is a heavy-duty shortening hook designed to quickly and safely adjust the length of lifting chains. Its specialized cradle design fully supports the chain link, preventing distortion and allowing the assembly to safely maintain 100% of its rated capacity.
*Winged cradle supports the chain link fully
| Model | Type | Performance & Features |
|---|---|---|
| Cradle Grab (EGK) (This Product) |
Winged No Pin |
100% WLL Best Balance. Full capacity lifting + fast operation (easy on/off). |
| Cradle w/ Pin (EGS) (Safety Version) |
Winged With Pin |
100% WLL Most Secure. Full capacity + locking pin keeps chain from falling out. |
| Standard Grab (EGH) (Basic Version) |
Non-Winged | -20% Capacity Economical. Cheaper, but requires derating the sling. |
| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| E | Φ | H | R | L | |||||
| 8-EGK-06 | 6 | 1.12 | 8 | 13.5 | 17.9 | 51.4 | 75.3 | 0.14 | 502010006 |
| 8-EGK-08 | 7+8 | 2 | 10.8 | 18 | 20 | 61.5 | 91.2 | 0.25 | 502010008 |
| 8-EGK-10 | 10 | 3.15 | 13 | 20 | 29 | 80 | 122 | 0.65 | 502010010 |
| 8-EGK-13 | 13 | 5.3 | 16.5 | 26 | 42.8 | 99.7 | 158 | 1.39 | 502010013 |
| 8-EGK-16 | 16 | 8 | 20 | 30.5 | 47.7 | 104 | 169 | 2.20 | 502010016 |
| 8-EGK-20 | 20 | 12.5 | 25 | 37.5 | 56 | 140 | 219 | 4.60 | 502010020 |
| 8-EGK-22 | 22 | 15 | 28 | 44 | 68 | 165 | 259 | 8.20 | 502010022 |
| 8-EGK-26 | 26 | 21.2 | 30 | 44 | 77 | 188.8 | 298 | 9.80 | 502010026 |
| 8-EGK-32 | 32 | 31.5 | 38 | 57 | 95 | 228 | 361 | 19.40 | 502010032 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
