Home > Lifting Chain, Chain Sling & Components > Grade 80 Sling Components > Grade 80 Eye type Hooks

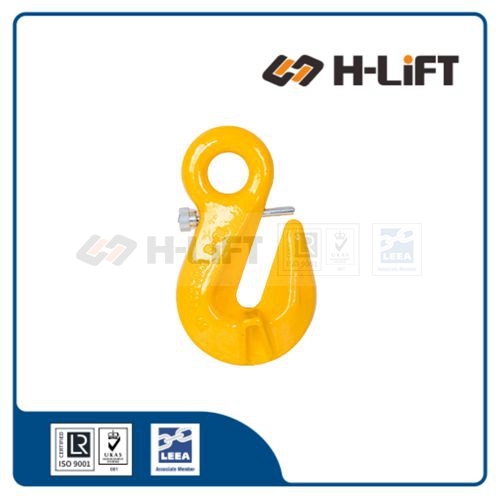

Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type
Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type
  • Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type

Grade 80 Eye Cradle Grab Hook with Safety Pin EGS Type

Item No.: 502011
The eye cradle grab hooks with safety pin(shortening eye hooks) ensure the non-destructive shortening of a chain, in this way the chain or chain system with multiple legs can be adapted to different lifting heights.
Request Quote
Description
Description

H-Lift Grade 80 Eye Cradle Grab Hook with Safety Pin, EGS Type:

  • Used for shortening chain legs.
  • Hook to be attached to the master link with the same connecting link as the chain.
  • No reduction of working load limit due to supporting cradle in saddle of hook.
  • Hook with a safety pin which prevents chain from falling out.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Standard: EN 1677
  • Material: Forged alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: Powder coated





Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm ton Φ B D E L kg
8-EGS-08 7+8 2 17 50 9.5 10.5 88.5 0.29 502011008
8-EGS-10 10 3.15 20 71 13 13 121.5 0.75 502011010
8-EGS-13 13 5.3 26 96 15.5 16.5 158 1.62 502011013
8-EGS-16 16 10 36 112.5 19 18.5 183 3 502011016
