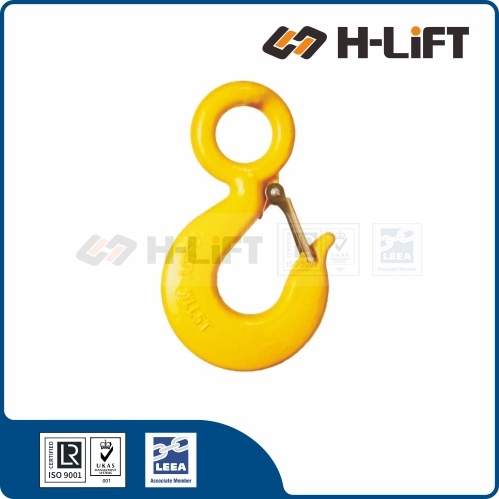

The Grade 80 Eye Hook with Latch (EHL Type) is a highly versatile, general-purpose rigging hook designed for secure attachment to chain sling assemblies. It features a heavy-duty safety latch that remains positively closed under load, ensuring safe and reliable lifting across a wide range of industrial applications.
*Universal replacement hook for hoists and winches
| Model | Focus | Best Application |
|---|---|---|
| Eye Hook (EHL) (This Product) |
General / Hoist | Equipment Replacement. Best for replacing hooks on hoists, winches, or general lifting utility. |
| Eye Sling Hook (ESH) (Alternative) |
Sling Assembly | Chain/Wire Slings. Optimized profile specifically for building multi-leg lifting slings. |
| Item No. | Chain Size (mm) |
WLL (t) |

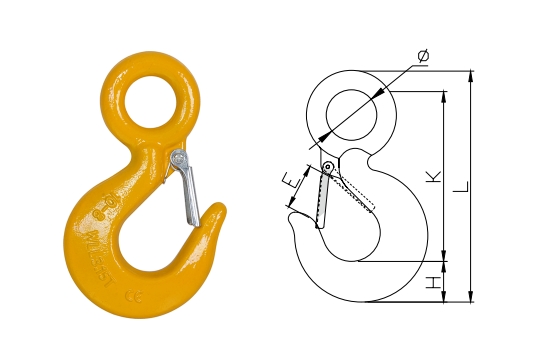

Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| Φ | E | H | K | L | |||||
| 8-EHL-06 | 6 | 1.12 | 19 | 22 | 20.5 | 82 | 112 | 0.27 | 502017006 |
| 8-EHL-08 | 7+8 | 2 | 28 | 25 | 26 | 104.5 | 142 | 0.60 | 502017008 |
| 8-EHL-10 | 10 | 3.15 | 31 | 27 | 28 | 120 | 163 | 0.84 | 502017010 |
| 8-EHL-13 | 13 | 5.3 | 39 | 35.5 | 40 | 146 | 203 | 1.81 | 502017013 |
| 8-EHL-16 | 16 | 8 | 51 | 44 | 45 | 187.5 | 255 | 3.35 | 502017016 |
| 8-EHL-20 | 20 | 12.5 | 62 | 55 | 57 | 231.5 | 317 | 6.10 | 502017020 |
| 8-EHL-22 | 22 | 15 | 73 | 57 | 66 | 262 | 360 | 9.60 | 502017022 |
| 8-EHL-26 | 26 | 21.2 | 89 | 83 | 79.6 | 318 | 434 | 16.00 | 502017026 |
| 8-EHL-32 | 32 | 31.5 | 90 | 95 | 91 | 360 | 495.5 | 25.80 | 502017032 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
