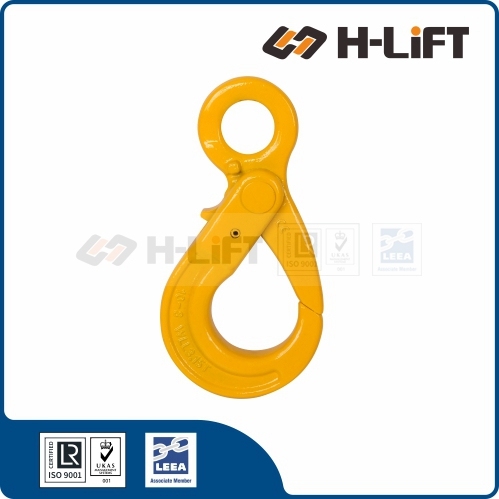

Grade 80 Eye Self Locking Hook ESK type

Item No.: 502004
Eye self locking hooks are the most common style of bottom hook used on chain slings. The hook design ensure the hook will close when loaded and thus the load is captured in the hook and is not able to release should the load line become slack or into con
Description
Description
H-Lift Grade 80 Eye Self Locking Hook, ESK type features:
Eye self locking hooks are the most common style of bottom hook used on chain slings. The hook design ensure the hook will close when loaded and thus the load is captured in the hook and is not able to release should the load line become slack or into contact with another object.
Eye self locking hooks will not open when under load as the latch closes automatically.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Standard: EN 1677
  • Material: forged alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Surface finish: powder coated.

Grade 80 Eye Self Locking Hook EN 1677
G8 Eye Self Locking Hook EN 1677
G8 EN 1677 chain fittings H-Lift China

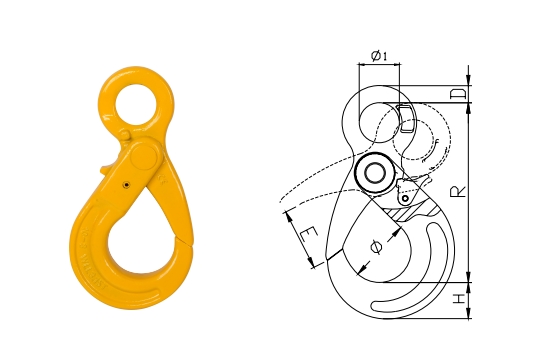

Item No. Chain Size WLL Main Dimensions(mm) Weight Product Code
mm ton Φ1 R D Φ H E kg
8-ESK-06 6 1.12 21 110 11 34 20 32 0.5 502004006
8-ESK-08 7+8 2 25 136 13 44 26 40 0.85 502004008
8-ESK-10 10 3.15 34.5 168 15 58 30 48 1.42 502004010
8-ESK-13 13 5.3 39.5 207 21 70 40 52 2.86 502004013
8-ESK-16 16 8 50 254 27 86 50.5 65 5.9 502004016
8-ESK-20 20 12.5 64.5 278 27 97 55 82 8.5 502004020
8-ESK-22 22 15 70 319 32 98 67 80 11.6 502004022
8-ESK-26 26 21.2 80 362 34 110 75 109 18 502004026
8-ESK-32 32 31.5 105 470 45 164 97 131 46 502004032



TRIGGER KITS FOR ESK, CSK, SSK AND SSB TYPE SELF LOCKING HOOK

Trigger Kits for self locking safety hooks

Item No. Chain Size Item No. Chain Size
mm mm
8-SP-SK-06 6 8-SP-SK-20 20
8-SP-SK-08 7+8 8-SP-SK-22 22
8-SP-SK-10 10 8-SP-SK-26 26
8-SP-SK-13 13 8-SP-SK-32 32
8-SP-SK-16 16 / /
