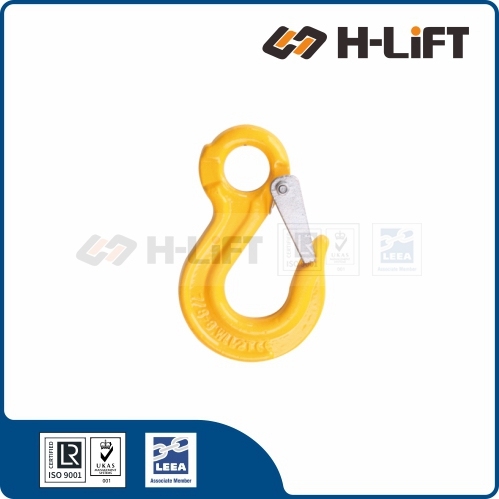

The Grade 80 Eye Sling Hook (ESH Type) is a highly versatile, general-purpose rigging hook designed for building secure chain sling assemblies. It provides a reliable lifting point for a wide variety of industrial material handling and hoisting applications.
*Universal eye fits thimbles, couplers, and shackles
| Type | Connection | Best Application |
|---|---|---|
| Eye Sling Hook (ESH / This Product) |
Round Eye Universal |
Wire Rope & Mixed Rigging. Fits thimbles, shackles, and couplers. Best choice if you are NOT using standard chain. |
| Clevis Sling Hook (CSR / CSC) |
Clevis Pin Chain Only |
Chain Slings. Connects directly to the chain link. No extra connector needed. More compact. |
| Item No. | Chain Size (mm) |
WLL (t) |

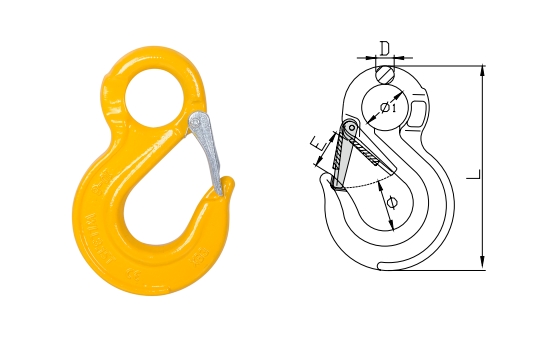

Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| D | E | Φ | Φ1 | L | |||||
| 8-ESH-06 | 6 | 1.12 | 9 | 21.5 | 20 | 20 | 108 | 0.30 | 502008006 |
| 8-ESH-08 | 7+8 | 2 | 11 | 27.5 | 24 | 25 | 133 | 0.40 | 502008008 |
| 8-ESH-10 | 10 | 3.15 | 15 | 27.2 | 38 | 38 | 167 | 0.90 | 502008010 |
| 8-ESH-13 | 13 | 5.3 | 19 | 38.5 | 51 | 43 | 213 | 2.20 | 502008013 |
| 8-ESH-16 | 16 | 8 | 23 | 42 | 62 | 50 | 255 | 3.20 | 502008016 |
| 8-ESH-20 | 20 | 12.5 | 24 | 44.6 | 74.8 | 63 | 305 | 5.80 | 502008020 |
| 8-ESH-22 | 22 | 15 | 32 | 70 | 68 | 62 | 348 | 9.20 | 502008022 |
| 8-ESH-26 | 26 | 21.2 | 35 | 84 | 84 | 64 | 394 | 13.00 | 502008026 |
| 8-ESH-32 | 32 | 31.5 | 37 | 102 | 100 | 88 | 480 | 18.50 | 502008032 |
| Item No. | For Chain Size (mm) |
|---|---|
| 8-SP-ESH-06 | 6 |
| 8-SP-ESH-08 | 7+8 |
| 8-SP-ESH-10 | 10 |
| 8-SP-ESH-13 | 13 |
| 8-SP-ESH-16 | 16 |
| 8-SP-ESH-20 | 20 |
| 8-SP-ESH-22 | 22 |
| 8-SP-ESH-26 | 26 |
| 8-SP-ESH-32 | 32 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
