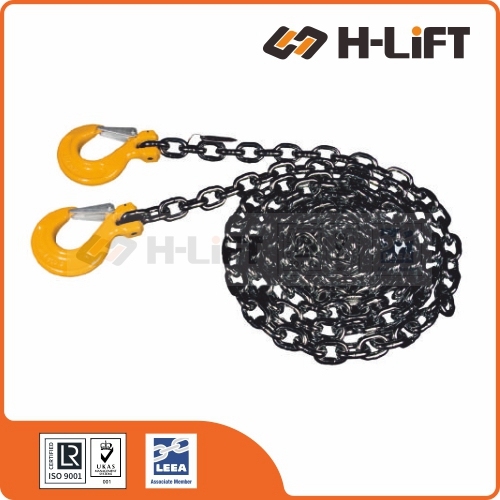

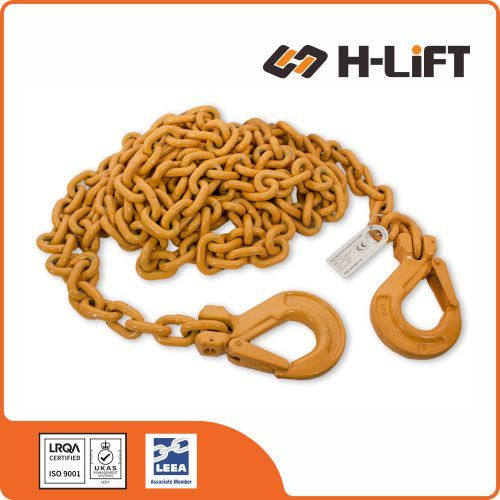

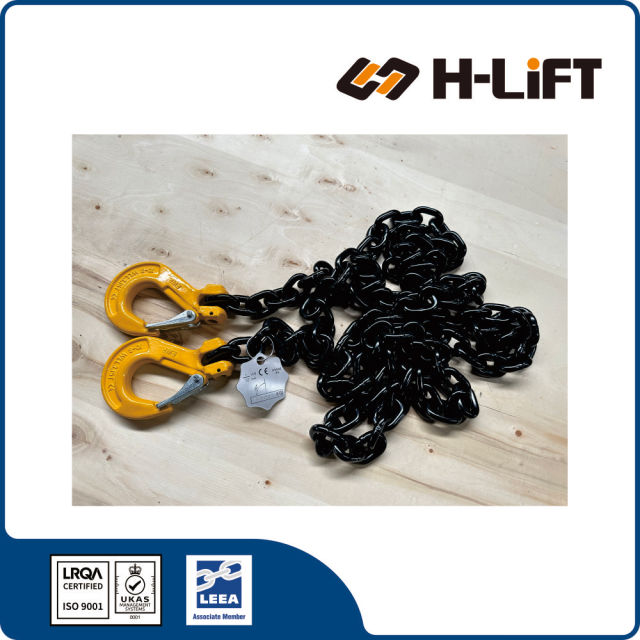

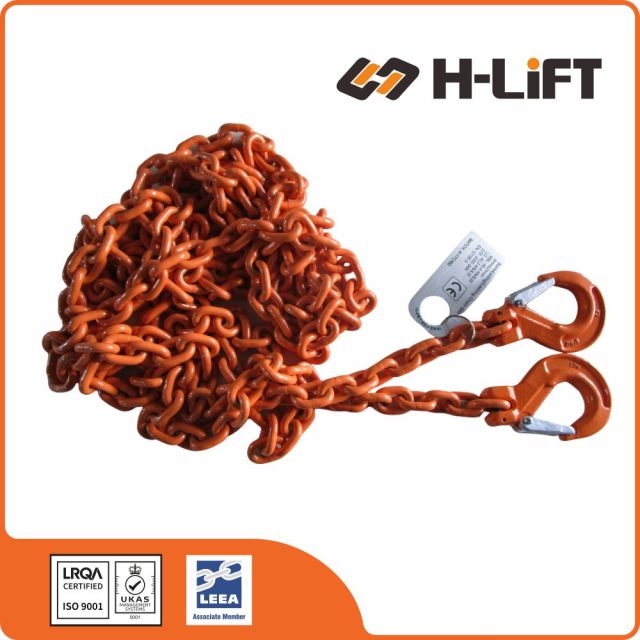

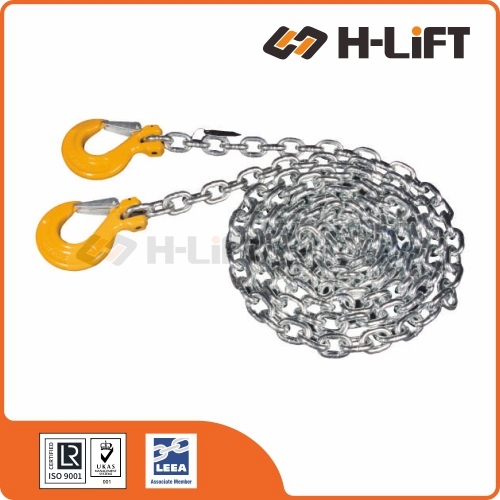

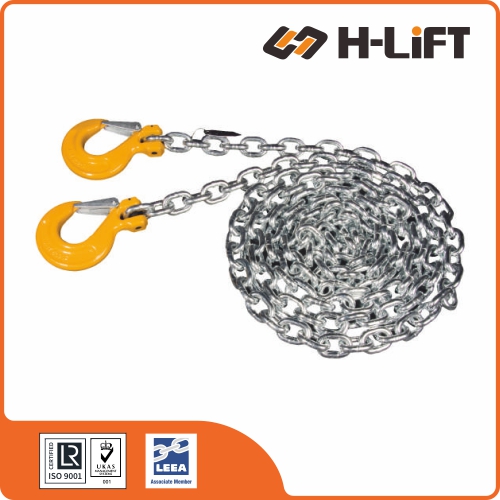

Grade 80 Lashing Chain with Clevis Hooks

Item No.: 4113
The G80 Lashing Chain with Clevis Hooks is designed for heavy-duty load securing applications, particularly suitable for transport and logistics. Here are the key specifications and features:
Description Safe Use of Load Binder and Chain Lashing
Description
The G80 Lashing Chain with Clevis Hooks is designed for heavy-duty load securing applications, particularly suitable for transport and logistics. Here are the key specifications and features:

Specifications

  • Material: Made from Grade 80 forged steel, which provides high strength and durability, making it ideal for heavy loads.
  • Lashing Capacities:
    • 8 mm Chain: Lashing Capacity of 40 kN (approximately 4 tons)
    • 10 mm Chain: Lashing Capacity of 63 kN (approximately 6.3 tons)
    • 13 mm Chain: Lashing Capacity of 100 kN (approximately 10 tons)
    • 16 mm Chain: Lashing Capacity of 160 kN (approximately 16 tons)
  • Standard Length: Typically available in lengths of 3.5 meters, but can vary based on specific requirements.
  • Weight: Varies by chain size, with heavier chains providing greater lashing capacities.

Features

  • Clevis Hooks: The G80 lashing chain is equipped with clevis hooks that allow for secure attachment to load points. This design enhances the stability and safety of the load during transport.
  • Compliance: The chains and hooks meet relevant safety and performance standards, ensuring reliability in load securing operations.
  • Versatility: Suitable for various lashing methods, including diagonal and cross lashing, making it adaptable for different load configurations.

Applications

G80 Lashing Chains with Clevis Hooks are commonly used in:
  • Transport and Logistics: For securing loads on flatbed trailers and other transport vehicles.
  • Construction: In lifting and securing heavy materials and equipment.
  • Towing and Recovery: For safely dragging or towing vehicles and equipment.
  • Surface finish of chain: electro galvanized, black painted or black E-coated.
Overall, the G80 Lashing Chain with Clevis Hooks is a robust and reliable solution for professionals needing to secure heavy loads effectively and safely during transport operations.

Item No. Chain Size Lashing Capacity MBF Standard Length Weight Product Code
mm kN kN m kg
LCLB08 8 40 80.4 3.5 7.7 411301008
LCLB10 10 63 126 3.5 12.7 411301010
LCLB13 13 100 212 3.5 21.5 411301013
LCLB16 16 160 322 3.5 33.7 411301016

Safe Use of Load Binder and Chain Lashing
Grade 80 Lashing Chain with Hooks, Ratchet and Lever Load Binder
Ratchet type Load Binder
Grade 80 Lashing Chain with Clevis Hooks
Lever type Load Binder

ALWAYS:
• Inspect chain lashings before use.
• Calculate the lashing force(s) required for the chosen method of load restraint.
• Select the capacity and number of chain lashings to provide at least the calculated lashing force(s)
• Ensure the lashing points on the vehicle and/or load are of adequate strength.
• Protect the chain lashing from small radii edges or reduce the lashing capacity in accordance with the manufacturer’s instructions.
• Ensure the chain lashings are correctly tensioned.
• Exercise care when releasing chain lashings in case the load has become unstable since the lashings were applied.



NEVER:
• Use chain lashings to lift a load.
• Knot, tie or modify chain lashings.
• Overload chain lashings.
• Use chain lashings over a sharp edge without edge protection or reducing the lashing capacity.
• Expose chain lashings to chemicals without consulting the supplier.
• Use chain lashings which have any distorted chain links, a damaged tensioner, damaged terminal fittings or a missing ID tag.



Selecting the Correct Chain Lashing
The standard for chain lashings is BS EN 12195-3: 2001. It requires the chain to conform to EN 818-2 and the connecting components to conform to EN 1677-1, 2 or 4 as appropriate. Connecting and shortening components must have a have a securing device such as a safety latch.
These standards are for grade 8 items. Some manufacturers also offer higher grades which, size for size, have a greater lashing capacity.
Chain lashings are available in a range of capacities and lengths and in various configurations. Some are general
purpose. Others are intended for specific applications.
Selection should start with an assessment of the forces acting on the load. The lashing force(s) required should be calculated in accordance with BS EN 12195-1: 2010.
Next check whether the lashing points on the vehicle and/or load are of adequate strength. If necessary apply a greater number of lashings to spread the force across more lashing points.
Chain lashings are marked with their lashing capacity (LC). expressed in daN (deca Newton = 10 Newtons) This is a force approximately equivalent to a weight of 1kg.



Using Chain Lashings Safely
Ensure that the tensioner is free to align and not bent over an edge. Ensure that the chain is not twisted or knotted and that the terminal fittings engage correctly with the lashing points.
For two part lashings, ensure the parts are compatible.
Ensure that the chain is protected from sharp and small radius edges by suitable packing or edge protectors.
Note: The manufacturer’s instructions may permit use over small radius edges provided the lashing capacity is reduced.



In-service Inspection and Storage
Chain lashings can be damaged by tensioning the chain across small radius edges without adequate edge protection. However damage may occur accidentally as a result of the load moving in transit hence the need to inspect before each use.
Chain lashings should not be exposed to chemicals, particularly acids which can cause hydrogen embrittlement. If accidental contamination occurs, the lashings should be cleaned with clear water and allowed to dry naturally. Weak chemical solutions will become increasingly stronger by evaporation.
Chain lashings should be inspected for obvious signs of damage before each use. Do not use the chain lashing if any of the following defects are found: illegible markings; bent, elongated or notched chain links, distorted or notched coupling components or end fittings, ineffective or missing safety latches.
Chain lashings will gradually wear over time. The LEEA recommends that they should be inspected by a competent
person at least every 6 months and a record made of the result.
Chain lashings should only be repaired by someone competent to do so.
For long term storage the storage area should be dry, clean and free of any contaminates.
