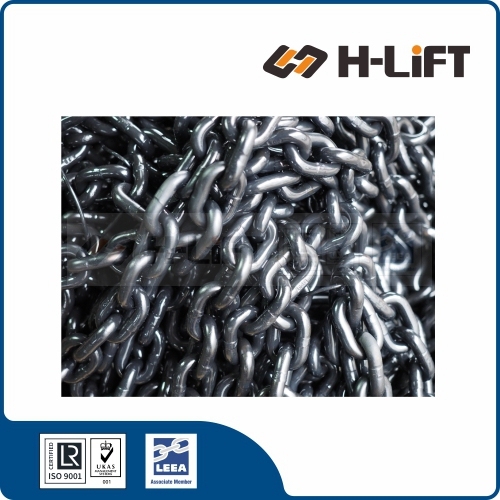

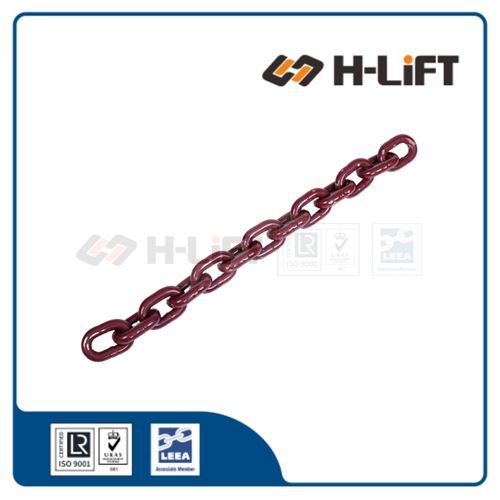

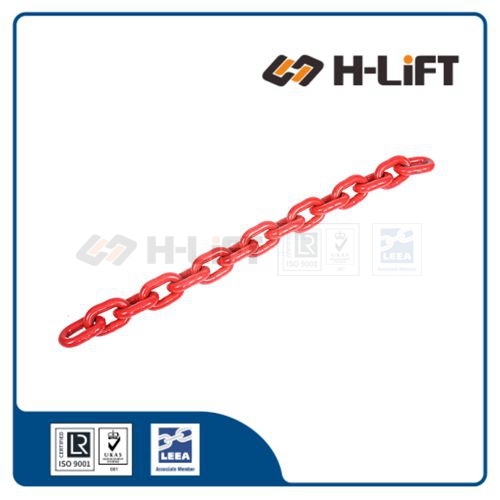

H-Lift Grade 80 Lifting Chain is a high-strength, heat-treated alloy steel chain designed specifically for demanding overhead lifting and rigging applications. It fully complies with the European EN 818 safety standard.
High Tensile Strength: Features a minimum tensile strength of 800 N/mm², providing exceptional durability and a high strength-to-weight ratio for safe overhead lifting.
EN 818 Certified: Manufactured and tested to strict European standards, ensuring reliable safety and performance in heavy industrial environments.
Easy Identification: Chains are permanently embossed with specific grade markings (such as G-8, G-80, or T) to guarantee correct usage and safe load tracking.
Versatile Finishes: Available in various protective surface finishes, including black e-coated, powder-coated, black oxidized, or electro-galvanized, to enhance wear and corrosion resistance.
Dual Standard Compliance Manufactured to meet both EN 818-2 (for lifting slings) and EN 818-7 (fine tolerance for hoists), ensuring versatility across rigging applications.
High-Strength Alloy Made from heat-treated Alloy Steel (Mn-Ni-Cr-Mo), offering a high strength-to-weight ratio and excellent durability.
Safety Assurance Every batch is Proof Load Tested at 2.5 times the Working Load Limit (WLL) and has a Minimum Breaking Load (MBL) of 4 times the WLL (Safety Factor 4:1).
Identification Each link (or periodic links) is stamped with "G80" or manufacturer marks for easy grade identification and traceability.
Finish Options Available in Black Electrophoretic, Black Painted, or Galvanized finishes to prevent corrosion in different environments.
Full Size Range Stocked sizes from 6mm to 32mm to cover capacities from 1.12 Tonnes to 31.5 Tonnes per single leg.
Technical Guide: EN 818-2 vs. EN 818-7
Standard
Primary Use
Tolerance
Why it matters?
EN 818-2 Sling Chain
Chain Slings & Lashing
Medium Tolerance
Designed for flexibility and hook attachment. NOT for powered hoists.
EN 818-7 Hoist Chain
Electric/Manual Hoists
Fine Tolerance (Calibrated)
Strict dimensions ensure the chain fits perfectly into the hoist's sprocket wheel without jamming.
Working Load Limit (WLL): Maximum load the chain is designed to sustain. Based on a 4:1 safety factor. Manufacturing Proof Force (MPF): Force applied during manufacture (2.5x WLL) to verify integrity. Minimum Breaking Load (MBL): Minimum force the chain must withstand before failure (4x WLL). Min elongation: 20%.
Grade 80 Chain for Chain Sling (EN 818-2)
Surface Finish: Black e-coated, powder coated, black painted, or black oxidized.
Item No.
Nominal Size (mm)
Pitch (mm)
Width (mm)
WLL (t)
Weight (kg/m)
Product Code
Inside Min
Outside Max
G8S0618
6
18
7.8
22.2
1.12
0.78
501010618
G8S0721
7
21
9.1
25.9
1.50
1.06
501010721
G8S0824
8
24
10.4
29.6
2.00
1.38
501010824
G8S1030
10
30
13.0
37.0
3.15
2.20
501011030
G8S1339
13
39
16.9
48.1
5.30
3.70
501011339
G8S1648
16
48
20.8
59.2
8.00
5.60
501011648
G8S2060
20
60
26.0
74.0
12.50
8.60
501012060
G8S2266
22
66
28.6
81.4
15.00
12.00
501012266
G8S2678
26
78
33.8
96.2
21.20
14.87
501012678
G8S3296
32
96
41.6
118.0
31.50
22.29
501013296
Grade 80 Chain for Chain & Lever Hoists (EN 818-7)
Surface Finish: Black oxidized or electro galvanized.
Item No.
Nominal Size (mm)
Pitch (mm)
Width (mm)
WLL (t)
Weight (kg/m)
Product Code
Inside Min
Outside Max
G8H0412
4
12
4.8
13.6
0.50
0.35
501020412
G8H0515
5
15
6.0
17.0
0.80
0.55
501020515
G8H0618
6
18
7.2
20.4
1.10
0.78
501020618
G8H0721
7
21
8.4
23.8
1.50
1.06
501020721
G8H0824
8
24
9.6
27.2
2.00
1.38
501020824
G8H0927
9
27
10.8
30.6
2.50
1.78
501020927
G8H1030
10
30
12.0
34.0
3.20
2.20
501021030
Grade 80 Case Hardened Chain for Power Driven Hoist (Type DAT)
Surface Finish: Black Oxidized. Designed specifically for power-driven hoists requiring high wear resistance.
Item No.
Nominal Size (mm)
Pitch (mm)
Width (mm)
Length 11x Pitch (mm)
WLL (t)
Proof Force (kN)
Min Breaking Load (kN)
Weight (kg/m)
Product Code
Inside Min
Outside Max
G8P0412
4
12
4.8
13.6
132
0.40
12.6
20.1
0.35
501030412
G8P0515
5
15
6.0
17.0
165
0.63
19.6
31.4
0.54
501030515
G8P0618
6
18
7.2
20.4
198
0.90
28.3
45.2
0.78
501030618
G8P0619
6.3
19
7.2
20.4
209
1.00
31.2
49.9
0.85
501030619
G8P0721
7.1
21
8.4
23.8
231
1.20
38.5
61.6
1.07
501030721
G8P0824
8
24
9.6
27.2
264
1.60
50.3
80.4
1.37
501030824
G8P0927
9
27
10.8
30.6
297
2.00
63.6
102
1.78
501030927
G8P1030
10
30
12.0
34.0
330
2.50
78.5
126
2.14
501031030
G8P1134
11.2
34
13.2
37.4
374
3.20
98.5
157.6
2.65
501031134
Chain Grade Guide
What is the Difference Between Welded Chain Grades?
🚫 Carbon Steel ChainGrades 30, 43, 70 Used for tie-downs, towing, and securement. NEVER used for overhead lifting.
✅ Alloy Steel ChainGrades 80, 100 Specifically designed and heat-treated for Overhead Lifting and Sling Assemblies.
How is "Grade" Calculated?
The grade number represents the chain's tensile strength (mean stress value). It is calculated by dividing the tensile force (Newtons) by the cross-sectional area of the two links ($mm^2$).
As the Grade Increases:
The material becomes harder and more resistant to abrasion.
The Strength-to-Weight ratio increases (more lifting power, less weight).
The Working Load Limit (WLL) increases significantly.
Towing, general utility, load securement. Stronger than G30.
NO
Grade 70 (Transport)
Heat-Treated Carbon
Heavy Duty Securement. Standard for trucking tie-downs. Identified by Gold/Yellow finish.
NO
Grade 80 (Alloy)
Alloy Steel
Standard Lifting Slings. High ductility (stretch) to absorb shock.
YES
Grade 100 (Premium)
Alloy Steel
Heavy Lifting. 25% stronger than G80. Harder surface for abrasion resistance.
YES
Common Problems & Critical Safety Warnings
Even with the correct grade, misuse can lead to catastrophic failure. Ensure your riggers are trained to avoid these three common hazards:
⚠️ 1. The Hoist Chain Trap
A frequent and dangerous mistake is using the load chain inside a hoist to wrap around a load.
The Design: Hoist load chain is hardened specifically to fit internal sprockets (tight tolerances). It lacks the ductility (stretch) required for a sling.
The Risk: Wrapping it around a load deforms the links. When retracted, the deformed links can snap or destroy the internal hoist mechanism.
⚠️ 2. The "Gold Chain" Error
Using Grade 70 (Gold) chain for overhead lifting is a common error because the chain looks robust.
Why it Fails: Grade 70 is heat-treated for abrasion resistance (for rubbing against truck beds), not for the elongation needed to absorb the dynamic shock of a crane lift. It may snap suddenly without warning.
⚠️ 3. General Neglect
Alloy chain is tough, but not invincible. Proper storage and inspection are vital.
Corrosion: Leaving chain on damp shop floors promotes pitting and stress corrosion cracking.
Inspection: Chains must be inspected regularly for nicks, gouges, and elongation (stretching).
