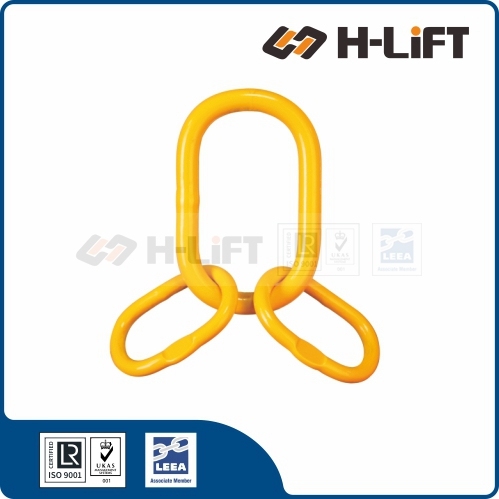

Grade 80 Master Link Assembly MAE type
Grade 80 Master Link Assembly MAE type Grade 80 Master Link Assembly MAE type Grade 80 Master Link Assembly MAE type
  • Grade 80 Master Link Assembly MAE type

Grade 80 Master Link Assembly MAE type

Item No.: 502043
Grade 80 master link assembly is used on top of lifting sets and its role is to fix the chain. It is recommended to be used with 3 or 4 legs chain system.
Grade 80 master link with two sub-links for 3-leg and 4-leg lifting chain sling.
Request Quote
Description
Description

H-Lift Grade 80 Forged Master Link Assembly, Master Link and Sub Assembly, MAE type features:

  • Grade 80 master link with two sub-links for 3-leg and 4-leg lifting chain sling.
  • Master link assembly: assembly consisting of a master link together with two intermediate master links.
  • Standard: EN1677
  • Material: alloy steel — quenched and tempered
  • Surface finish: powder coated
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 4:1
  • Engineered flat for use with omega link.
Grade 80 Master Link Assembly, 4 leg chain sling
3-leg Chain Sling



Item No. WLL/T B.L./T Main Dimensions(mm) Weight Product Code
A B D a b d kg
8-MAE-0006 3.1 12.4 130 60 14 54 25 12 0.6 502043006
8-MAE-0708 4.6 18.4 160 90 20 60 35 13 1.6 502043008
8-MAE-0010 7.8 31.2 195 110 25 80 40 16 3.08 502043010
8-MAE-0013 14 56 240 140 32 90 50 22 6.5 502043013
8-MAE-0016 24.8 99.2 270 140 40 140 70 28 11.6 502043016
8-MAE-1820 33.3 133.2 300 155 45 180 100 32 17 502043020
8-MAE-0022 37.1 148.4 350 190 50 180 100 40 26.4 502043022
8-MAE-0026 50 200 410 220 60 200 110 45 42.3 502043026
8-MAE-0032 74.8 299.2 420 250 70 200 110 50 61 502043032
