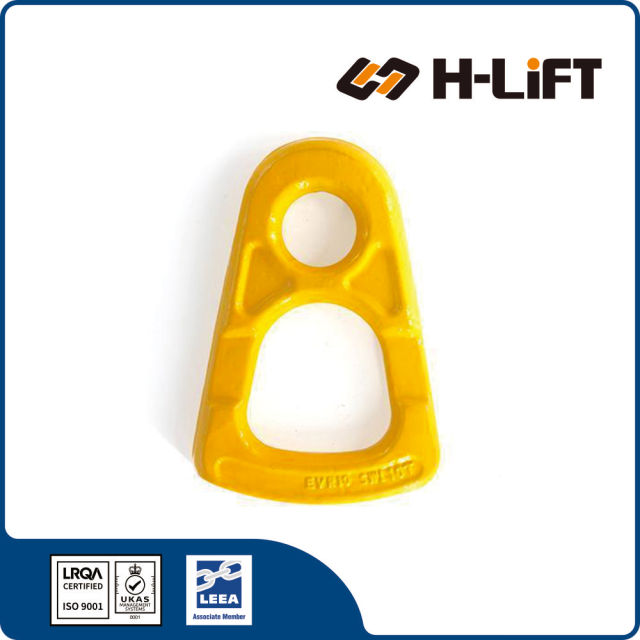

This Grade 80 Forged Alloy Recessed Link is an essential component designed for secure, heavy-duty lifting and material handling in rigorous industrial, construction, and rigging environments.
The Alloy Steel Lift Ring is a critical component for specialized lifting operations. It features unique "recessed" or "flatted" cutouts integrated into its design. These machined sections are engineered specifically to securely accommodate connecting hardware, such as "boss hooks," "G-hooks," or Omega links, offering superior flexibility and safe assembly for complex rigging needs.
Manufactured from high-quality alloy steel, rigorously quenched and tempered to exceed Grade 80 strength and toughness requirements.
The recessed section is precisely machined to allow for the easy attachment of G80 Connecting Links (Omega links). This is vital when the standard link thickness would otherwise prevent the connector's safety gate from fully closing.
Treated with industrial plastics spraying (powder coating), available in safety red (RAL 3020) or yellow (RAL 1003) for instant identification and enhanced corrosion resistance.
Each link is permanently embossed with its physical size, grade (80), and a unique manufacturer batch code to ensure 100% traceability during mandatory safety audits.
To ensure absolute safety in the field, every lift ring undergoes a strenuous testing protocol before leaving the facility.
| Item No. | WLL (t) | Breaking Load (t) | A ±0.5 (mm) | B ±0.5 (mm) | R (mm) | D (mm) | L ±1 (mm) | Weight (kg) | Product Code |
|---|---|---|---|---|---|---|---|---|---|
| 8-RCL-08 | 8 | 40 | 97.5 | 68 | 23.5 | 38 | 176 | 1.47 | 502057080 |
| 8-RCL-10 | 10 | 50 | 140 | 84 | 35 | 40 | 205 | 2.59 | 502057100 |
