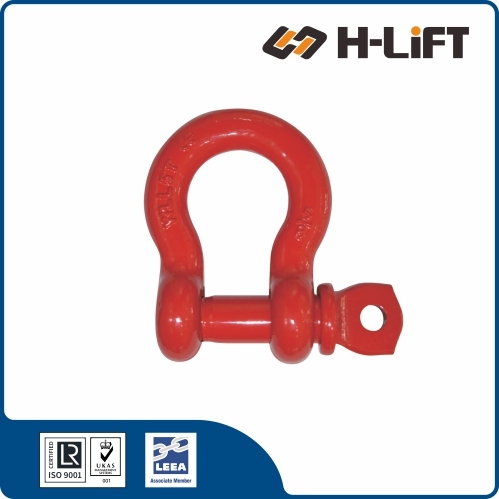

The Grade 80 Screw Pin Alloy Anchor Shackle (SBS Type) is a high-strength, bow-shaped lifting component designed for versatile rigging applications. Manufactured from premium alloy steel, it offers exceptional durability and a superior strength-to-weight ratio for heavy overhead lifting.
*Bow shape allows side loading and multi-leg connections
| Pin Type | Installation | Best Application |
|---|---|---|
| Screw Pin (This Product) |
Quick / Temporary | Pick & Place. Ideal for general lifting where shackles are frequently removed. Note: Pin can back out under vibration. |
| Bolt Type (Safety Pin) |
Secure / Permanent | Long-term / Rotating Load. The nut and cotter pin prevent the bolt from loosening, even under vibration. |
| Product Code | Shape | Pin Type | Best For... |
|---|---|---|---|
| SDS Type | Chain (D-Shape) | Screw Pin | Single-leg, Temporary, Straight Pull. |
| SBS Type (This Product) |
Anchor (Bow) | Screw Pin | Multi-leg, Side loading, Temporary. |
| BDS Type | Chain (D-Shape) | Bolt Type | Single-leg, Permanent installation. |
| BBS Type | Anchor (Bow) | Bolt Type | Multi-leg, Side loading, Permanent/Offshore. |
| Item No. | Size (inch) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | C | D | B | L | |||||
| 8-SBS-08 | 5/16" | 1.2 | 13.5 | 21.3 | 8 | 9.5 | 53 | 0.09 | 502048008 |
| 8-SBS-10 | 3/8" | 1.6 | 16.8 | 25.9 | 9.7 | 11 | 63.2 | 0.14 | 502048010 |
| 8-SBS-11 | 7/16" | 2.5 | 19 | 29.5 | 11.2 | 13 | 74 | 0.17 | 502048011 |
| 8-SBS-13 | 1/2" | 3.3 | 20.6 | 33.3 | 12.7 | 16 | 83.3 | 0.33 | 502048013 |
| 8-SBS-16 | 5/8" | 5 | 27 | 42.9 | 17.5 | 19 | 106.4 | 0.62 | 502048016 |
| 8-SBS-19 | 3/4" | 7 | 32 | 51 | 20.6 | 22 | 126.2 | 1.07 | 502048019 |
| 8-SBS-22 | 7/8" | 9.5 | 36.6 | 57.9 | 24.6 | 25 | 148 | 1.64 | 502048022 |
| 8-SBS-25 | 1" | 12.5 | 43 | 68.3 | 27 | 28 | 166.6 | 2.28 | 502048025 |
| 8-SBS-28 | 1-1/8" | 15 | 46 | 74 | 31.75 | 32 | 190 | 3.36 | 502048028 |
| 8-SBS-32 | 1-1/4" | 18 | 51.6 | 82.5 | 35 | 35 | 210 | 4.31 | 502048032 |
| 8-SBS-35 | 1-3/8" | 21 | 57 | 92 | 36 | 38 | 232.7 | 6.14 | 502048035 |
| 8-SBS-38 | 1-1/2" | 30 | 60.5 | 98 | 41 | 42 | 254 | 7.80 | 502048038 |
| 8-SBS-44 | 1-3/4" | 40 | 73.2 | 126 | 57.2 | 51 | 313.7 | 12.60 | 502048044 |
| 8-SBS-50 | 2" | 55 | 82.5 | 146 | 61 | 57 | 347.5 | 20.43 | 502048050 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
