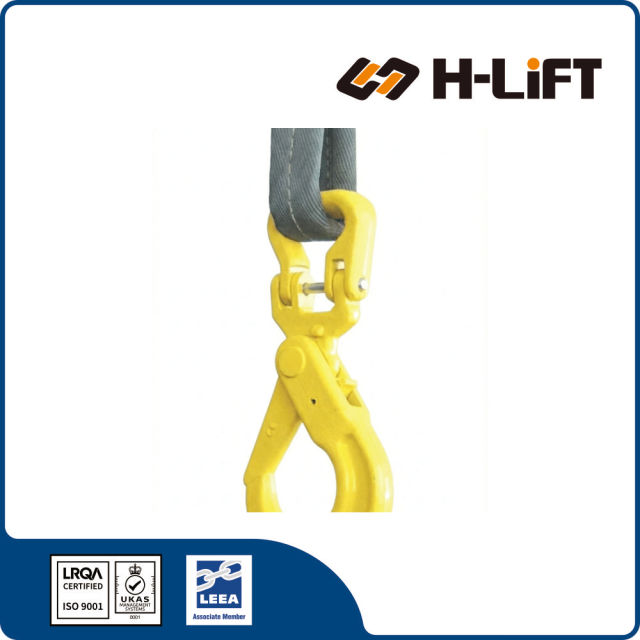

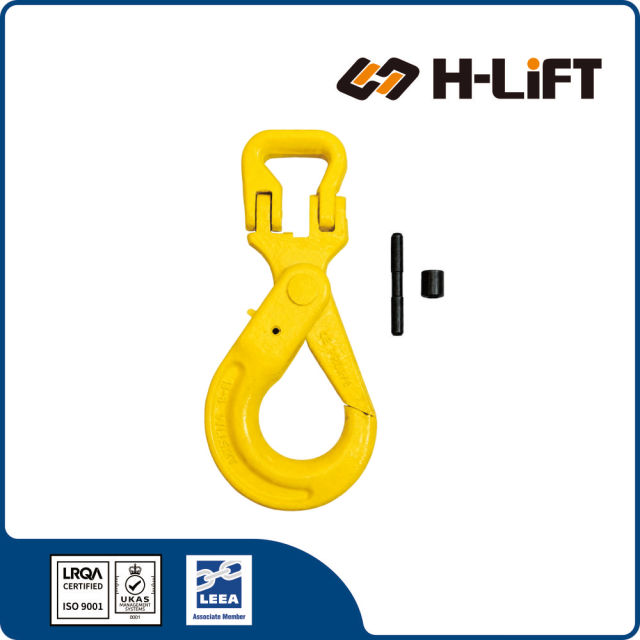

The Grade 80 Clevis Self-Locking Hook (NCS Type) is a high-strength, premium rigging hook engineered to provide maximum load security and operational safety in demanding lifting and material-handling applications.
*Flat eye eliminates bunching of webbing
| Hook Type | Eye Shape | Effect on Webbing Sling |
|---|---|---|
| Standard Chain Hook | Small Round Eye | Problem Webbing bunches up, creating stress points and reducing sling strength (Point Loading). |
| Webbing Hook (This Product) |
Wide Flat Eye | Solution Webbing sits flat, distributing load evenly across the entire width and extending sling life. |
| Item No. | Chain Size (mm) |
WLL (t) |

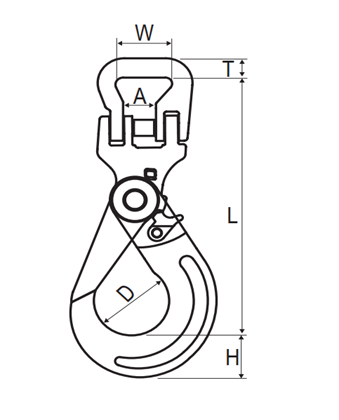

Main Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | H | W | T | D | L | |||||
| 8-HFS-10 | 10 | 3.15 | 26.5 | 28.5 | 47 | 16 | 58 | 199 | 1.8 | 502055010 |
| 8-HFS-13 | 13 | 5.3 | 30 | 40 | 51.5 | 19 | 70 | 256 | 3.52 | 502055013 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
