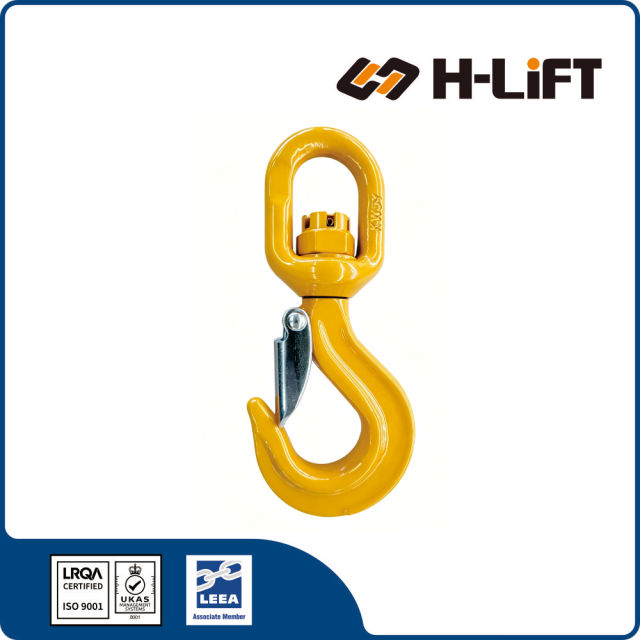

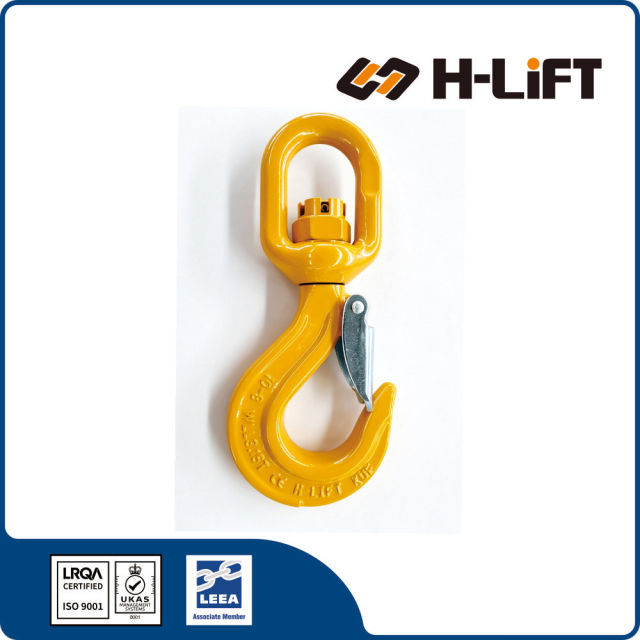

This Grade 80 Swivel Sling Hook (SWK Type) provides secure load attachment with free rotation, making it a versatile bottom fitting for chain sling assemblies.
This hook is a positioning device and is not intended to rotate under load. For a swivel sling hook designed to rotate under load, please refer to our Grade 80 Swivel Sling Hook with ball bearing.
The Grade 80 Swivel Sling Hook is a forged alloy steel rigging component engineered for heavy-duty overhead lifting applications. Manufactured from high-tensile Grade 80 steel and finished with a durable yellow powder coating, it is designed to work seamlessly with Grade 80 chain slings or wire rope assemblies fitted with a swivel eye connection.
This swivel hook is widely used in construction, ports, shipyards, mining, and heavy manufacturing wherever chain slings or wire rope slings need a reliable, rotatable connection point to a crane hook or lifting fixture. The self-locking latch design makes it especially suited for overhead lifting where operator safety and load security are critical, such as steel coil handling, precast concrete lifting, and machinery rigging.

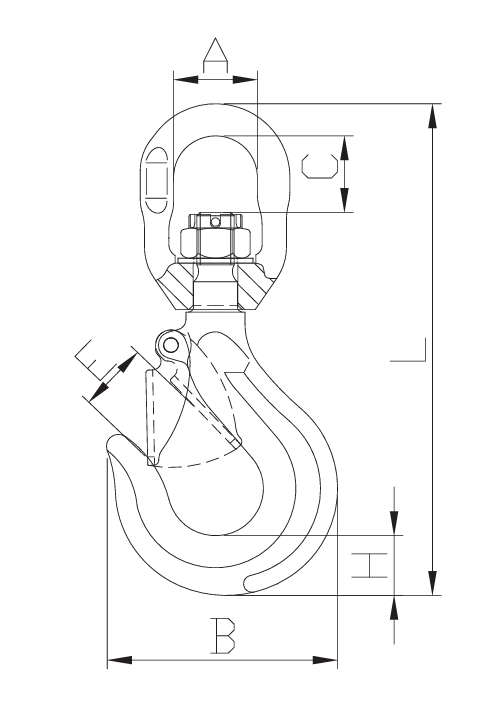

| Item No. | Chain Size | WLL | Main Dimensions (mm) | Weight | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | ton | A | B | E | H | C | L | kg | ||
| 8-SWK-08 | 7+8 | 2 | 35.5 | 88.5 | 27 | 23.5 | 25 | 190 | 0.85 | 502058008 |
| 8-SWK-10 | 10 | 3.15 | 42 | 104.5 | 32 | 29.5 | 34 | 233 | 1.54 | 502058010 |
| 8-SWK-13 | 13 | 5.3 | 49 | 135 | 40 | 38 | 41 | 291.5 | 3.04 | 502058013 |
| 8-SWK-16 | 16 | 8 | 61 | 161 | 45 | 45.4 | 53 | 352 | 5.36 | 502058016 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
