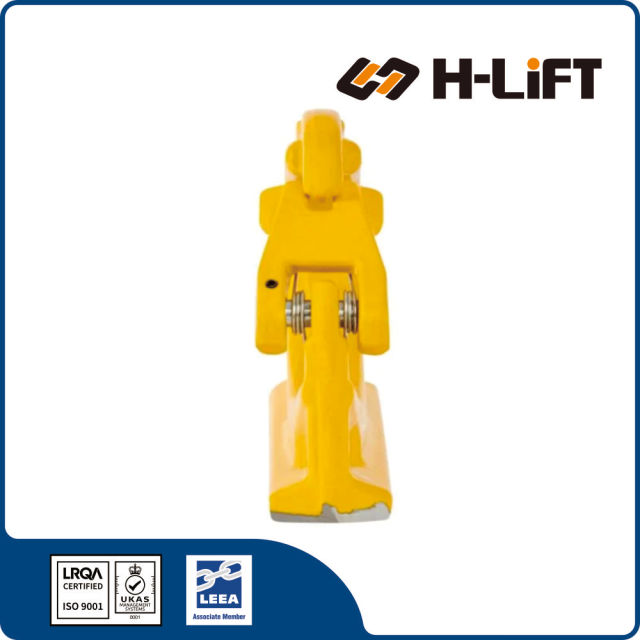

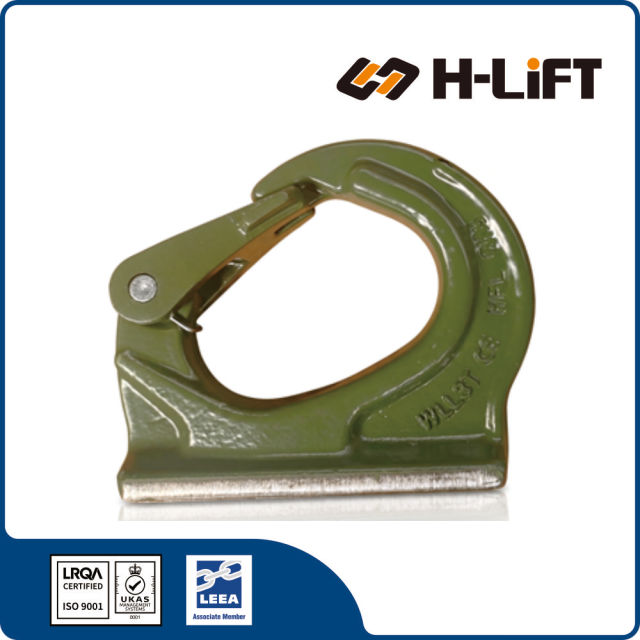

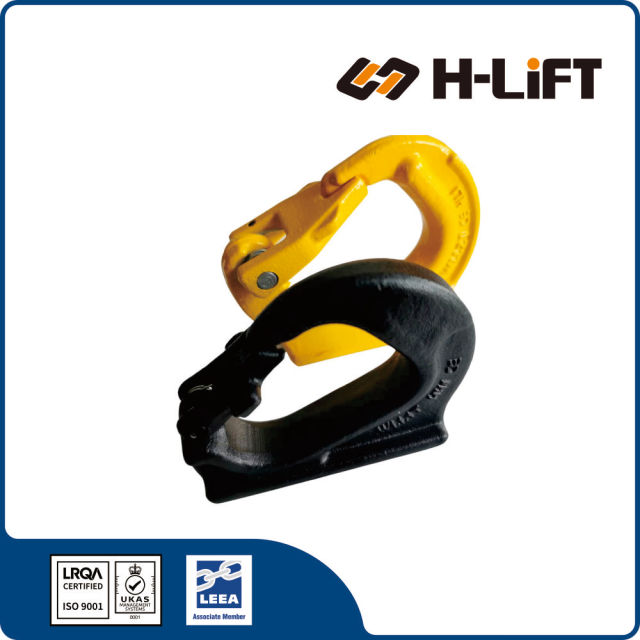

Grade 80 Weld on Hook WOH type
Grade 80 Weld on Hook WOH type Grade 80 Weld on Hook WOH type Grade 80 Weld on Hook WOH type
  • Grade 80 Weld on Hook WOH type

Grade 80 Weld on Hook WOH type

Item No.: 502030
This G80 weld-on hook is designed for attachment to mobile lifting equipment to provide a pick point for easy sling attachment and is very popular with excavators.
Request Quote
Description
Description

H-Lift Grade 80 Weld on Hook, WOH type features:

  • Designed to be a permanent sling attachment point for jibs and arms on mobile excavators.
  • Quenched & tempered.
  • 100% Magnaflux Crack Detection.
  • Standard: EN 1677
  • Material: forged alloy steel
  • Proof load: 2.5 times the Working Load Limit
  • Safety factor: 5:1
  • Surface finish: powder coated
Weld on Hook
Weld on Hook
Grade 8 Alloy Chain Fittings



Item No. WLL Main Dimensions(mm) Weight Product Code
ton B C E L kg
8-WOH-01 1 77.6 61.3 25 101.6 0.49 502030001
8-WOH-02 2 92 67 28 114 0.87 502030002
8-WOH-03 3 106 73.5 30 129 1.13 502030003
8-WOH-05 5 133 94 39 171 2.5 502030005
8-WOH-08 8 137 94 36 177 3.26 502030008
8-WOH-10 10 170 135 48 223 5.2 502030010
