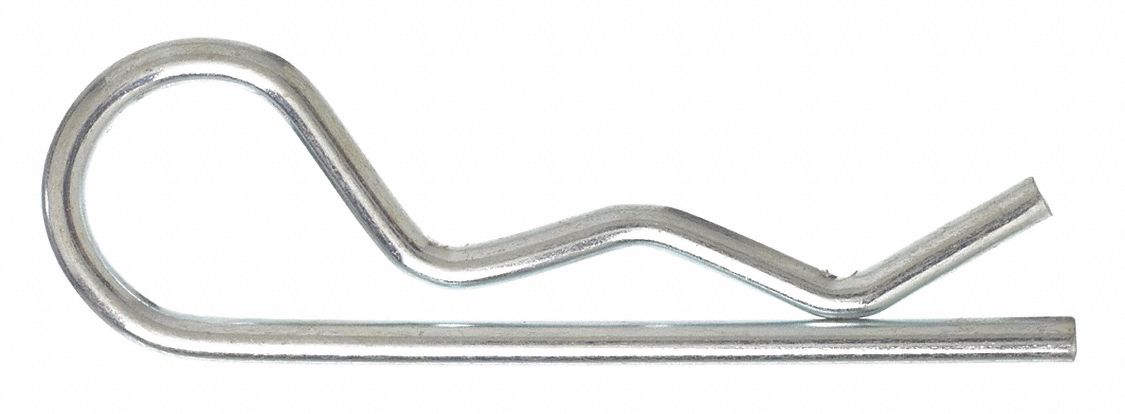

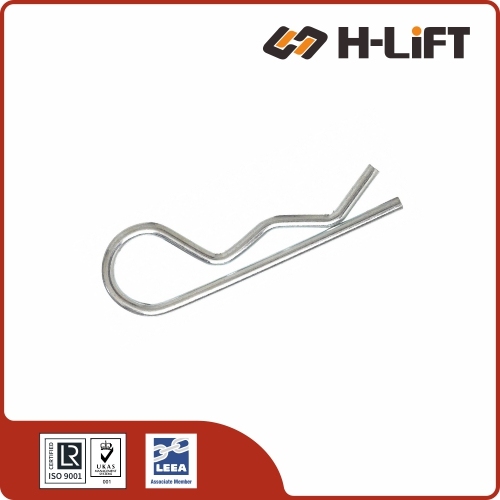

The H-Lift Hair Pin Cotter is a spring-steel R-clip or hairpin-shaped fastener designed to secure pins and shafts through spring tension, providing quick and reliable retention in rigging and mechanical assemblies.
The Hair Pin Cotter (commonly known as an R-Clip or Spring Cotter) is a versatile, reusable fastener designed for securing clevis pins and shafts. Manufactured from high-grade spring steel with a zinc-plated finish, it offers quick, tool-free installation and reliable retention for agricultural and industrial machinery.
Made from high-grade spring steel to ensure the clip maintains consistent tension and grip strength over repeated uses without deformation.
The classic R-shape design allows the straight leg to easily insert into the hole while the curved leg securely grips the shaft, preventing accidental fallout.
Designed for fast, manual installation and removal. Ideal for temporary connections or parts requiring frequent maintenance on tractors and mowers.
Features a durable Zinc Plating (ZP) for excellent corrosion resistance, protecting the pin from rust in harsh outdoor and agricultural environments.
| Item No. | Size (Wire Dia. mm) | Product Code |
|---|---|---|
| HPZP020 | 2 | 704012020 |
| HPZP025 | 2.5 | 704012025 |
| HPZP030 | 3 | 704012030 |
| HPZP037 | 3.7 | 704012037 |
| HPZP040 | 4 | 704012040 |
| HPZP050 | 5 | 704012050 |
| HPZP060 | 6 | 704012060 |
| HPZP080 | 8 | 704012080 |
