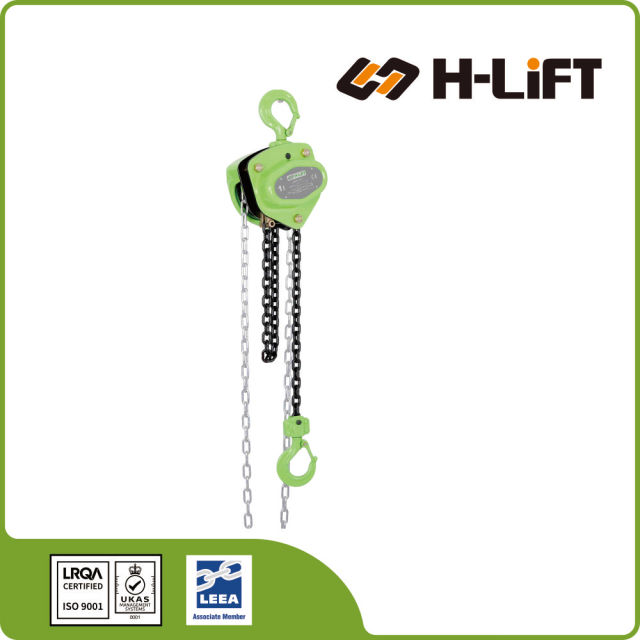

Chain Hoist CH-B type

Item No.: 1101
A chain hoist or a chain block is a mechanical device used for lifting heavy loads of objects and equipment. Our hand chain hoist features light weight robust construction with grade 80 alloy load chain and they comply with EN 13157,AS1418.2 standard.
Description Safe Use of Chain Hoist
Description

H-Lift Chain Hoist, Chain Block, CH-B type:

Chain blocks are a very versatile way to lift loads, and are primarily operated by pulling the chains by hand.

The chain block is a mechanism used to raise or lower heavy loads with relative ease. The internal gears of the chain block wind the chains around, lifting the object that is attached to the end or bottom hook. This means that very little force is required to lift large, heavy loads of up to 50,000 kg.

Chain blocks also have the advantage of not needing electricity in most cases, making it an essential tool for working in remote locations or places with little to no access to power. Chain block lifting equipment can be used for installing machines and repairing goods, and they are great for overhead work and in narrow spaces such as car garages. They also work well in factories, laboratories and power plants.


Chain blocks are a great cost-effective solution for moving heavy loads. They also have the added benefit of not requiring large operating teams as one chain block can be operated by a single person. Chain Blocks are very versatile, making them suitable and effective for a wide hoist of applications.

  • Light weight robust construction.
  • Automatic double pawl braking system.
  • Extra thick asbestos-free friction discs.
  • Drop forged alloy hooks are designed to stretch when overloaded before chain failure and are equipped with integrated heavy duty safety latch.
  • High grade alloy steel load chain and zinc plated hand chain.
  • Each hoist is proof tested at 1.5 times the rated capacity for rated capacities less than 20t and 1.25 the rated capacity equal to or greater than 20t.
  • Complies with EN13157, ASME B30.16, AS1418.2, SANS 1594.
  • Overload protection(optional).
  • Bottom hook with bearing(optional).
  • Chain bag (optional).
  • Needle roller bearing between load sprocket and side plates (optional).

 chain hoist,chain fall,chain lifts,chain block,chain pulley block, load chain

Hand Chain Hoist, H-Lift China Manual Chain Block H-LIFT CHINA

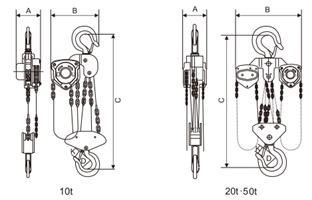

Model Capacity  Standard Lift Proof Load   Effort Required to Lift Rated Load  No. of Falls of Load Chain Load Chain Dimensions(mm)  N.W.  Extra Weight per Metre  Product Code
t m kN N mm A B C D K kg kg
CHB0050 0.5 3 7.35 200 1 6x18 137.5 137 270 35 28 9.5 1.6 110100500
CHB0100 1 3 14.7 320 1 6x18 146.5 162 340 35.5 26 11.6 1.6 110101000
CHB0150 1.5 3 22.1 360 1 8x24 170 183 399 45 32.5 16.3 2.2 110101500
CHB0200 2 3 29.4 365 1 8x24 170 194 414 42.5 32 18 2.2 110102000
CHB0300 3 3 44.1 385 2 8x24 170 220 512 50 37 24.3 3.6 110103000
CHB0500 5 3 73.5 435 2 10x30 190 288 636 64 46 38.7 5.2 110105000
CHB1000 10 3 147 435 4 10x30 190 384 743 85 50 78 9.5 110110000
CHB2000 20 3 245 435X2 8 10x30 209 625 890 110 81 163.6 19 110120000
CHB3000 30 3 367.5 435X2 12 10x30 312 691 1380 110 81 220 27.7 110130000
CHB5000 50 3 612.5 435X2 22 10x30 496 958 2578 170 125 1092 49.4 110150000

Remarks: Hoists with the lift in other length are also available

ALWAYS:
• Store and handle chain hoists correctly.
• Inspect chain hoists and accessories before use and before placing into storage.
• For top hook suspension, use hooks that are fitted with safety catches, or mouse the hook, ensuring the support fits freely into the seat of the hook.
• For trolley suspension ensure the trolley is correctly set for the beam width.
• Check that the bottom hook will reach its lowest point without running the chain fully out.
• Adopt safe slinging practices and follow the instructions for the safe use of the equipment used.


NEVER:
• Expose chain hoists to chemicals, particularly acids, without consulting the supplier.
• Replace the load chain with a longer one without consulting the supplier.
• Use undue effort to force the hoist to operate.
• Throw, drop or drag a chain hoist.
• Allow oil or grease to come into contact with the brake.
• Expose a chain hoist directly to the elements, water spray, steam etc without consulting the supplier.


Selecting the Correct Hoist
Hand chain hoists are available in a range of capacities and with various types of suspension. Select the hoist to be used and plan the lift taking the following into account:
Type of suspension - hook, trolley etc.
Capacity, class of use and range of lift.
Chain hoists are designed for vertical lifting only.
Consult the supplier if the hoist is to be used in areas of high risk, exposed to the elements, water, steam etc, with hazardous substances, e.g. acids or chemicals, or subjected to extremes of temperature.


Storing and Handling Hand Chain Hoists
Never return damaged hoists to storage. They should be dry, clean and protected from corrosion.
Store hoists by their top suspension with chains clear of the ground, the chains may be wrapped together to facilitate this. Non-portable hoists stored outdoors should be covered and protected from corrosion.
Hoists should not be dropped, thrown or dragged across the floor.
Never galvanise or subject the chain, or other load bearing parts, to any other plating process without the express approval of the supplier.


Installing and Commissioning
Follow any specific installation instructions issued by the supplier and the general requirements given overleaf. Try the hoist to ensure that it operates correctly and that the brake is effective. Ensure the chain is not twisted; it must move freely. The bottom hook must reach the lowest position required without the chain running fully out.


Using Hand Chain Hoists Safely
Do not attempt lifting operations unless you understand the use of the equipment and the slinging procedures.
Do not use defective hoists, slings or accessories and never use the chain hoist as a sling.
Check the slinging arrangement, that the hoist is safely rigged and that chains are not twisted, particularly in the case of multi-fall hoists.
Check the load is free to move before commencing and that the landing area has been prepared.
Raise the load just clear, then halt the lift to check the integrity of the hoist, slinging method etc.
Check the travel path is clear and that you have a clear view so as to avoid accidental hook engagement or collision. Follow any particular site safety rules applicable to the movement of suspended loads.
Keep fingers, toes etc clear when lowering loads.


In-service Inspection and Maintenance
Follow any specific maintenance instructions issued by the supplier but in particular keep load chains lubricated and check the operation of the brake. Brakes must be kept free of oil, grease etc. Never replace the load chain with a longer one without consulting the supplier.
Regularly inspect the hoist and, in the event of the following defects, refer the hoist to a Competent Person for thorough examination: wear; damage to trolley, hooks and fittings; damaged or distorted slack end anchor; chains worn, bent, notched, stretched, corroded, do not hang freely, twisted orjump; load slips or will not lift; damaged hoist casing; illegible markings.

Safe Use of Chain Hoist

ALWAYS:
• Store and handle chain hoists correctly.
• Inspect chain hoists and accessories before use and before placing into storage.
• For top hook suspension, use hooks that are fitted with safety catches, or mouse the hook, ensuring the support fits freely into the seat of the hook.
• For trolley suspension ensure the trolley is correctly set for the beam width.
• Check that the bottom hook will reach its lowest point without running the chain fully out.
• Adopt safe slinging practices and follow the instructions for the safe use of the equipment used.


NEVER:
• Expose chain hoists to chemicals, particularly acids, without consulting the supplier.
• Replace the load chain with a longer one without consulting the supplier.
• Use undue effort to force the hoist to operate.
• Throw, drop or drag a chain hoist.
• Allow oil or grease to come into contact with the brake.
• Expose a chain hoist directly to the elements, water spray, steam etc without consulting the supplier.


Selecting the Correct Hoist
Hand chain hoists are available in a range of capacities and with various types of suspension. Select the hoist to be used and plan the lift taking the following into account:
Type of suspension - hook, trolley etc.
Capacity, class of use and range of lift.
Chain hoists are designed for vertical lifting only.
Consult the supplier if the hoist is to be used in areas of high risk, exposed to the elements, water, steam etc, with hazardous substances, e.g. acids or chemicals, or subjected to extremes of temperature.


Storing and Handling Hand Chain Hoists
Never return damaged hoists to storage. They should be dry, clean and protected from corrosion.
Store hoists by their top suspension with chains clear of the ground, the chains may be wrapped together to facilitate this. Non-portable hoists stored outdoors should be covered and protected from corrosion.
Hoists should not be dropped, thrown or dragged across the floor.
Never galvanise or subject the chain, or other load bearing parts, to any other plating process without the express approval of the supplier.


Installing and Commissioning
Follow any specific installation instructions issued by the supplier and the general requirements given overleaf. Try the hoist to ensure that it operates correctly and that the brake is effective. Ensure the chain is not twisted; it must move freely. The bottom hook must reach the lowest position required without the chain running fully out.


Using Hand Chain Hoists Safely
Do not attempt lifting operations unless you understand the use of the equipment and the slinging procedures.
Do not use defective hoists, slings or accessories and never use the chain hoist as a sling.
Check the slinging arrangement, that the hoist is safely rigged and that chains are not twisted, particularly in the case of multi-fall hoists.
Check the load is free to move before commencing and that the landing area has been prepared.
Raise the load just clear, then halt the lift to check the integrity of the hoist, slinging method etc.
Check the travel path is clear and that you have a clear view so as to avoid accidental hook engagement or collision. Follow any particular site safety rules applicable to the movement of suspended loads.
Keep fingers, toes etc clear when lowering loads.


In-service Inspection and Maintenance
Follow any specific maintenance instructions issued by the supplier but in particular keep load chains lubricated and check the operation of the brake. Brakes must be kept free of oil, grease etc. Never replace the load chain with a longer one without consulting the supplier.
Regularly inspect the hoist and, in the event of the following defects, refer the hoist to a Competent Person for thorough examination: wear; damage to trolley, hooks and fittings; damaged or distorted slack end anchor; chains worn, bent, notched, stretched, corroded, do not hang freely, twisted orjump; load slips or will not lift; damaged hoist casing; illegible markings.
