Hand-Operated Strap Tensioner & Pneumatic Strap Tensioner

No.4074, 4075

The Hand-Operated and Pneumatic Strap Tensioners are professional-grade tools engineered to efficiently grip, tighten, and cut polyester strapping, offering tailored solutions based on operational volume and power availability.

  • Hand-Operated Portability: Features a heavy-duty manual ratchet mechanism for tensioning and cutting straps, making it highly portable and ideal for lower-volume securing in large yards or off-site locations.
  • Pneumatic Power: Utilizes compressed air to deliver exceptionally high tension forces (up to 6500N) at rapid speeds, designed specifically for high-volume, fixed-station securing of heavy materials like timber and steel.
  • Versatile Operation: Both tool variations are designed to operate effectively in horizontal or vertical orientations on flat surfaces, ensuring neatly tensioned straps that improve appearance and prevent load damage.
  • Broad Compatibility: Available in multiple models to seamlessly accommodate a wide range of standard polyester strapping dimensions, supporting widths from 6mm up to 50mm and varying thicknesses.

Technical Data

Manual & Pneumatic Strap Tensioners - For Cord & Woven Strapping

Efficient Tensioning Tools for Cargo Securing
Heavy Duty Ratchet Manual & Pneumatic For 19mm - 50mm Straps Integrated Cutter

Product Features

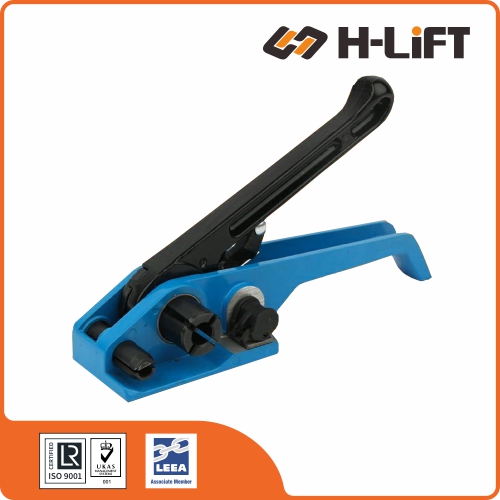

  • Manual Tensioners (HST Series):
    • Ultimate Portability: Lightweight and requires no power source, perfect for securing cargo in shipping containers, rail cars, or remote outdoor yards.
    • Heavy Duty Ratchet: Features a robust steel ratchet mechanism capable of applying high tension to 19mm up to 50mm woven lashings.
    • Integrated Cutter: Built-in cutter allows for quick trimming of excess strap after tensioning.

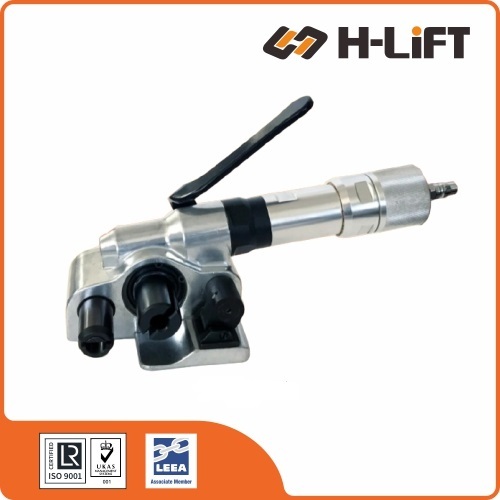

  • Pneumatic Tensioner (PST Series):
    • High Efficiency: Powered by compressed air to deliver a massive 6,500N of tension in seconds, ideal for high-volume packaging lines.
    • Consistent Tension: Ensures every load is secured with the exact same force, eliminating operator fatigue and variability.
    • Push-Button Operation: Tensions and cuts the strap with a simple press of a button, significantly speeding up the packing process.

Manual Tensioners (HST Series)

Item No. Strap Width
(mm)
Strap Thickness
(mm)
Weight
(kg)
Product Code
HST19 6-19 0.4-1.0 1.2 407400019
HST25 19-25 0.6-1.2 1.3 407400025
HST32 25-32 0.6-1.2 1.9 407400032
HST40 32-40 0.6-1.2 2.0 407400040
HST50 32-50 0.6-1.5 2.2 407400050

Pneumatic Tensioner (PST Series)

Item No. Strap Width
(mm)
Strap Thickness
(mm)
Tension Force Air Pressure Tension Speed Weight Product Code
PST40 25-32-40 0.8-1.6 4500-6500N 0.6-0.8 Mpa 70-80 mm/s 1.2 kg 407500040
