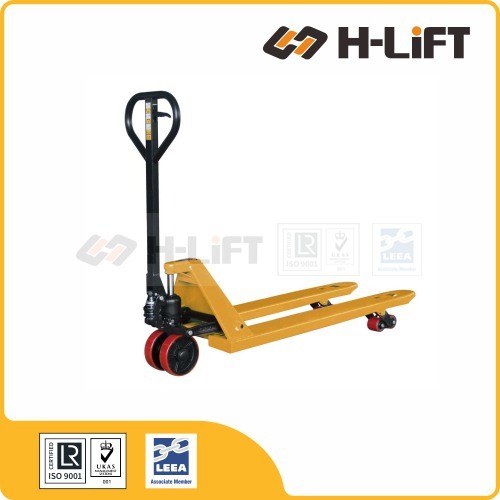

The H-Lift PT-DF Hand Pallet Truck is a durable and versatile material handling solution designed for the efficient movement of palletized loads in warehouses, factories, and distribution centers. Constructed with a heavy-duty frame and an integrated hydraulic pump, this pallet truck offers smooth lifting and lowering capabilities for loads ranging from 2 to 3 tons. Its ergonomic design and rugged wheels ensure ease of maneuverability and long-lasting reliability in demanding industrial environments.
The H-Lift PT-DF Hand Pallet Truck is a reliable and cost-effective material handling solution featuring a robust welded oil pump design. Engineered for durability and ease of maintenance, this pallet jack is available in capacities ranging from 2T to 3T, making it ideal for warehouses, logistics centers, and industrial facilities.
Features a unique oil pump body created by welding prefabricated parts and then machining, ensuring high structural integrity and leak resistance compared to standard cast pumps.
Available in 2000kg (2T), 2500kg (2.5T), and 3000kg (3T) capacities to handle both standard pallets and heavy industrial loads with ease.
Designed with an excellent 190-degree turning angle, making it effortless to navigate tight warehouse aisles and confined spaces.
Equipped with a built-in Overload Valve to prevent damage from lifting excessive weight, protecting both the operator and the equipment.
Q: What is the difference between PT-DF and standard pallet trucks?
A: The PT-DF type features a specific pump construction where the body is welded from prefabricated parts and then machined. This offers a robust and cost-effective alternative to integrated cast pumps found on premium models.
Q: What wheel type should I choose?
A:

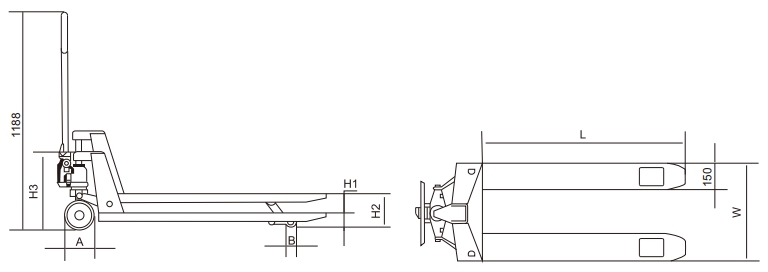

| Item No. | Capacity (t) | Heights (mm) | Forks (mm) | Wheels (mm) | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| Lowered (H1) | Total Lift (H2) | Handleless (H3) | Length (L) | Width (W) | Fork (B) | Steering (A) | |||
| PT-DF520 | 2 | 75/85 | 190/200 | 408 | 1150 | 520 | 75/80 | 180/200 | 803002520 |
| PT-DF525 | 2.5 | 75/85 | 190/200 | 408 | 1150 | 550 | 75/80 | 180/200 | 803002525 |
| PT-DF625 | 2.5 | 75/85 | 190/200 | 408 | 1150 | 685 | 75/80 | 180/200 | 803002625 |
| PT-DF530 | 3 | 75/85 | 190/200 | 408 | 1150 | 550 | 75/80 | 180/200 | 803002530 |
| PT-DF630 | 3 | 75/85 | 190/200 | 408 | 1150 | 685 | 75/80 | 180/200 | 803002630 |
Ensure the load is balanced evenly on both forks. Do not lift loads on the tips of the forks. Always check the floor condition before moving heavy loads to prevent tipping or wheel damage.

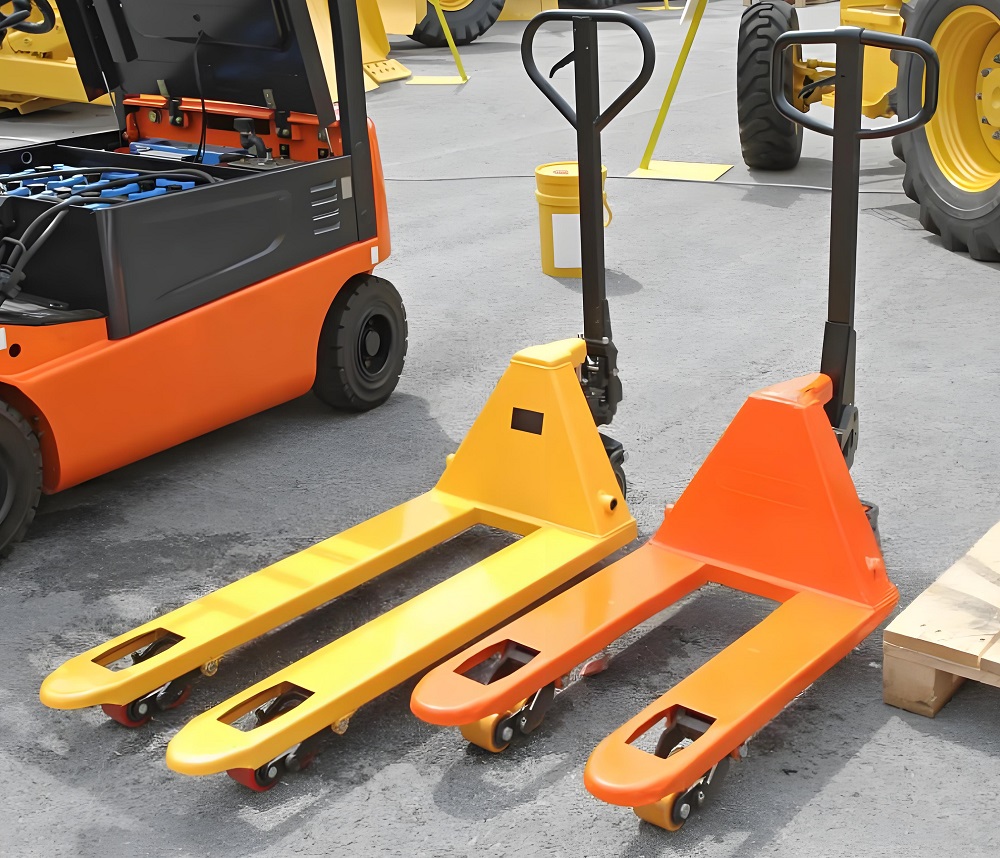

A hand pallet truck, also known as a pallet jack, is a manually operated material handling device used to lift and move palletized loads within a warehouse or other industrial setting. It is a simple yet effective tool for transporting heavy loads horizontally over short distances.
Primary Applications:
Operated by the handle to lift the load effortlessly. Some models feature a quick-lift mechanism for faster initial lifting.
Consists of a forked platform that slides underneath the pallet. Fork length and dimensions vary to suit different pallet standards (e.g., Euro vs. Standard).
Features small steering wheels at the front for navigation and larger load wheels at the back for stability under heavy loads.
Designed with a small turning radius, making them highly suitable for confined spaces and narrow warehouse aisles.
Proper operation is essential for safety:
Regular maintenance ensures smooth and safe operation:
| Specification | Standard Duty | Heavy Duty |
|---|---|---|
| Load Capacity | 2,000 kg - 2,500 kg | 3,000 kg - 5,000 kg |
| Fork Length | 1,150 mm (Standard) | 1,220 mm (Extended) |
| Fork Width (Overall) | 540 mm (Euro) / 685 mm (Wide) | 540 mm / 685 mm |
| Wheel Material | Polyurethane / Nylon | Steel / Heavy Duty Poly |
