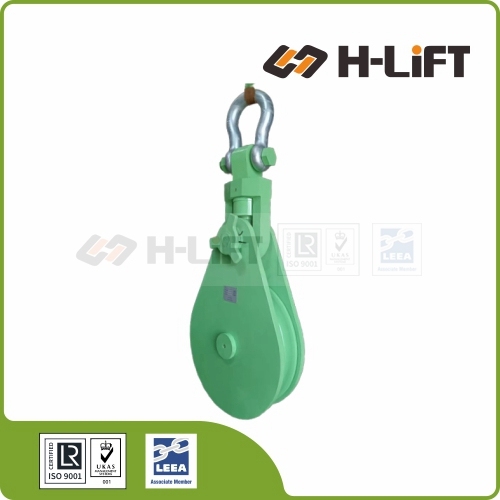

The H-Lift Heavy Duty Snatch Block is a robust pulley system designed for intermittent lifting and pulling. It safely redirects wire rope to provide a mechanical advantage, effectively increasing the pulling power of hoists and winches.

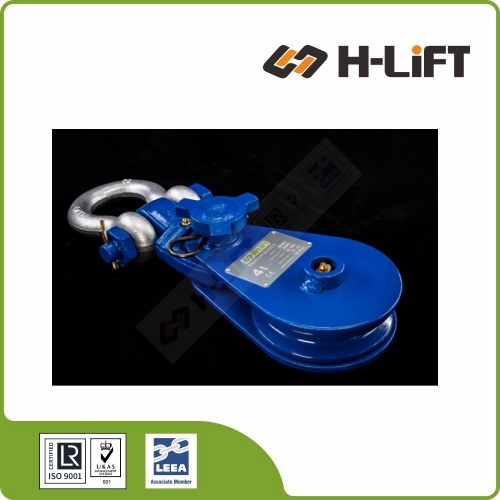

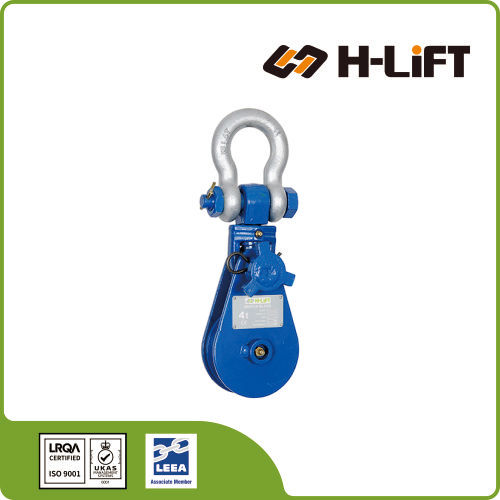

Attachment Options: Available with either a secure Hook (HB Type) or a heavy-duty Shackle (SB Type) for flexible rigging.
High Capacity: Engineered for extreme loads, offering working capacities ranging from 2 tonnes up to 125 tonnes.
Quick Rigging: Highly portable and designed for fast, easy installation across various work sites.
Industrial Durability: Built to withstand high stress in demanding environments like construction, shipyards, and off-road recovery.
*Versatile Heads: Choose Swivel Hook (HB) for quick attachment or Shackle Eye (SB) for secure rigging.
*Bearing Options: Bronze Bushings for static loads; Roller Bearings for high-speed dynamic loads.
Product Features
Massive Capacity Range: Offers one of the widest capacity ranges in the market, from 2 Ton up to 125 Ton (WLL), catering to everything from light towing to heavy offshore lifting.

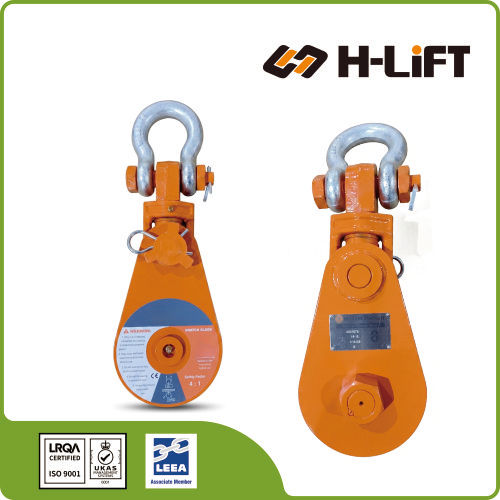

Versatile Head Fittings: Available with two head styles: Swivel Hook (HB Type) with safety latch for quick attachment, or Shackle Eye (SB Type) for secure, long-term rigging.
Bearing Options: Choose between Bronze Bushings (for 2T & 4T / static loads) or heavy-duty Roller Bearings (for 8T+ / high-speed dynamic loads) fitted with grease nipples for easy maintenance.
Quick Reeving System: Features a classic side-opening design (snatch) that allows for fast insertion of the wire rope without removing the end fitting.
Wide Sheave Selection: Sheave diameters range from 3 inches (75mm) up to 38 inches (950mm), compatible with wire ropes from 7mm to 76mm.
Durable Construction: Made with a lightweight yet robust steel body and high-strength sheaves to withstand 4:1 safety factors.
Multi-Purpose: Ideal for changing load direction (doubling line pull) in towing, 4x4 recovery, construction, and logging operations.
Technical Specifications

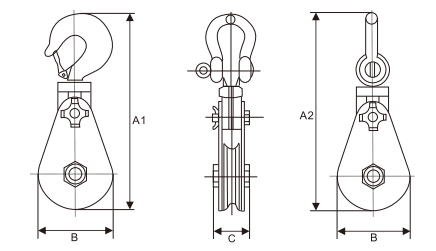

*Refer to the diagram above to identify dimensions A1 (Hook Height), A2 (Shackle Height), B, and C in the table below.
Item No.
Sheave Dia.
W.L.L.
Dimensions (mm)
Wire Rope Dia.
Net Weight (kg)
Product Code
Hook
Shackle
(mm)
(t)
A1 (Hook)
A2 (Shackle)
B
C
(mm)
Hook
Shackle
HB07502
SB07502
75
2.0
292
286
82
70
7-9
3.9
3.8
170107502
HB11504
SB11504
115
4.0
358
345
120
70
10-12
6.2
6.2
170111504
HB15004
SB15004
150
4.0
412
399
160
70
16-18
8.4
8.3
170115004
HB15008
SB15008
150
8.0
498
475
160
93
20-22
14.1
14.1
170115008
HB20008
SB20008
200
8.0
549
528
210
93
20-22
19.0
18.7
170120008
HB20015
SB20015
200
15.0
672
663
210
102
22-24
34.0
33.0
170120015
HB25010
SB25010
250
10.0
695
679
260
115
24-26
36.0
34.7
170125010
HB25012
SB25012
250
12.0
701
679
260
115
24-26
36.0
34.7
170125012
HB30012
SB30012
300
12.0
797
767
310
133
24-26
56.0
54.0
170130012
HB30015
SB30015
300
15.0
800
788
310
133
24-26
58.0
55.0
170130015
HB35522
SB35522
355
22.0
960
952
365
140
28-32
112.0
109.0
170135522
HB40022
SB40022
400
22.0
1027
1019
415
140
28-32
122.0
118.0
170140022
HB40030
SB40030
400
30.0
1085
1126
415
155
32-35
170.0
164.0
170140030
HB50030
SB50030
500
30.0
1177
1256
514
162
32-35
213.0
208.0
170150030
HB60050
SB60050
600
50.0
1445
1525
625
240
46-50
418.0
418.0
170160050
HB76085
SB76085
760
85.0
1960
1910
800
288
56-64
810.0
840.0
170176085
-
SB95125
950
125.0
-
2528
965
278
70-76
-
1363.0
170195125
Heavy Duty Snatch Block Guide
Overview, Calculations & Safety Instructions
What is a Snatch Block?
A heavy-duty snatch block is a pulley system designed to handle large loads and provide mechanical advantage during heavy-duty lifting and pulling operations. It consists of a sheave (grooved wheel) enclosed in a housing with an opening side plate, allowing the wire rope to be threaded without removing the end fitting.
Commonly used in off-road recovery, forestry, construction, shipyards, and industrial settings, snatch blocks allow operators to:
Change Load Direction: Navigate obstacles or align the pull with the winch.
Double Pulling Power: By running the cable through the block and back to an anchor point, you effectively double the mechanical advantage of the winch or hoist.
WLL & Load Calculation
⚠️ Important: Line Pull vs. Total Load
The Working Load Limit (WLL) marked on the snatch block is the maximum load allowed on the block and its connection point. The total load on the block is often different from the weight being lifted.
It is necessary to determine the total load imposed on the block to select the correct capacity. Use the formula:
Total Load = Line Pull Force × Angle Factor
*Refer to the chart above to find the Angle Factor based on the angle between the rope lines.
Instructions for Use
Selection: Ensure a block with the correct WLL is selected. The WLL applies to static loads only; shock loading must be accounted for.
Inspection: Verify all markings are legible and the block is free from nicks, gouges, and cracks.
Alignment: The block must never be side-loaded. It is designed for in-line use only. Ensure the rope enters the sheave in the same plane to prevent damage.
Connection: Always ensure the hook, eye, or shackle supporting the load is correctly positioned and secured.
Operation: Ensure the sheaves rotate freely and functional properly.
Modifications: Never modify, repair, or reshape a block by machining, welding, heating, or bending, as this affects the WLL. Heat treatment is strictly prohibited.
⚠️ PROHIBITED: Do not use the block for lifting or transporting people. Do not lift loads over people.
Connection & Maintenance
Connecting the Block:
Shackle Type: Remove the shackle to attach the block. Reassemble ensuring the load bolt, nut, and safety cotter pin are secure.
Hook Type: Attach via the hook and ensure the safety latch closes completely.
Inserting Rope: Remove the safety hair needle pin and unscrew the quick bolt (or trunnion). Rotate the side plate to insert the wire rope onto the sheave, then reassemble securely.
Inspection Schedule:
Blocks must be inspected regularly in accordance with local safety standards. Wear, misuse, and overloading can lead to deformation. Inspection should take place at least every six months, or more frequently in severe operating conditions.
