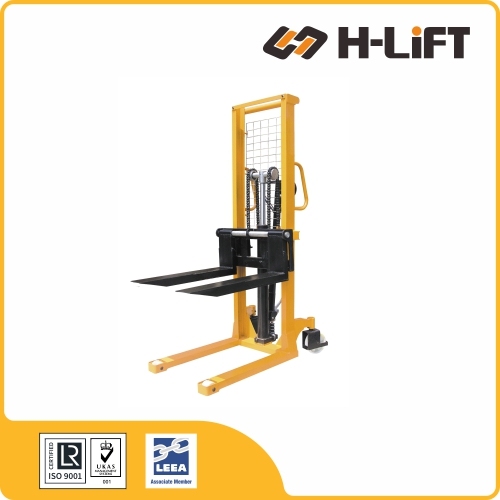

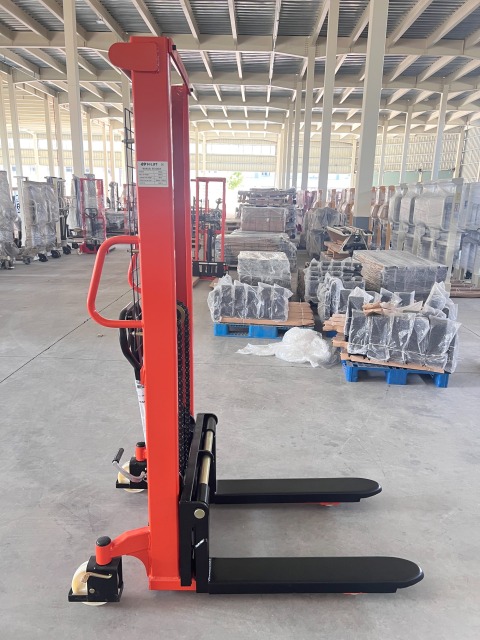

The H-Lift HMS Hydraulic Manual Stacker is a robust, manually operated lifting solution designed for moving and stacking palletized loads in warehouses and workshops. Operated via a hand pump or foot pedal, it eliminates the need for electric power, offering a cost-effective and reliable alternative for low-frequency lifting tasks. Its compact design allows for easy maneuvering in narrow aisles, while the adjustable forks ensure compatibility with various pallet sizes.
The H-Lift HMS Series Manual Stacker is a cost-effective and robust solution for lifting, stacking, and positioning pallets in warehouses where electric equipment is not required. Featuring a heavy-duty hydraulic pump and adjustable straddle forks, this stacker provides a reliable lifting height of up to 1600mm for various load sizes.
Features adjustable straddle forks (330mm–740mm width), allowing the unit to handle various pallet sizes, including Standard and Euro pallets.
Equipped with a heavy-duty hydraulic pump operated via hand lever or foot pedal, offering a maximum lifting height of 1600mm.
Includes wheel brakes to secure the unit during operation and a protective metal screen to shield the operator from the mast mechanism.
Built with a high-strength C-channel steel mast and frame, ensuring stability and safety even when handling loads up to 2000kg.
Q: Can this stacker lift open and closed pallets?
A: The adjustable forks are perfect for open-bottom pallets (skids). If using closed-bottom pallets (with bottom boards), ensure the fork height allows entry. If the bottom boards interfere with the outriggers, this stacker may not be suitable.
Q: How do I operate the lift?
A: The HMS stacker features a dual-operation pump. You can pump the handle by hand or use the foot pedal to raise the forks. To lower the load, simply pull the release lever on the handle.

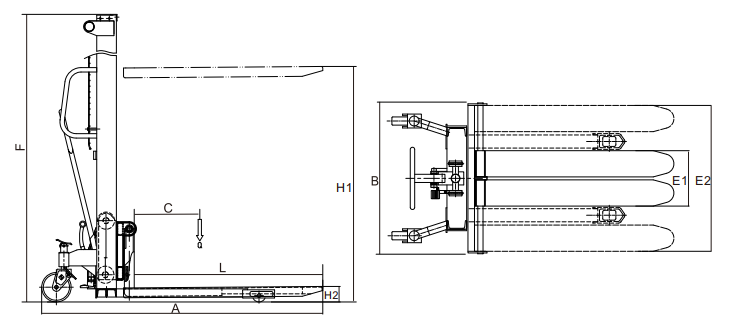

| Model | Capacity | Lift Height | Load Center | Min Fork Height | Fork Length | Width Over Forks | Overall Dimensions | Lift Speed | Weight | Product Code | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H2 | C | H1 | L | Min (E1) | Max (E2) | Length (A) | Width (B) | Height (F) | |||||
| kg | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |||
| HMS05-16 | 500 | 1600 | 400 | 90 | 1150 | 260 | 540 | 1300 | 760 | 1960 | Adjustable | 137 | 805010516 |
| HMS10-16 | 1000 | 1600 | 400 | 90 | 1150 | 330 | 740 | 1350 | 720 | 1960 | Adjustable | 200 | 805011016 |
| HMS15-16 | 1500 | 1600 | 400 | 90 | 1150 | 330 | 740 | 1380 | 720 | 1960 | Adjustable | 212 | 805011516 |
| HMS20-16 | 2000 | 1600 | 400 | 90 | 1150 | 330 | 740 | 1380 | 800 | 2060 | Adjustable | 265 | 805012016 |
This stacker works best with Open Bottom Pallets (Skids). Standard closed-bottom pallets (like CHEP pallets) have bottom boards that may collide with the stacker's support legs (outriggers). Please check your pallet type before purchasing.
A manual pallet stacker (also known as a hand stacker) is a material handling device designed to lift, lower, and transport palletized loads. Unlike powered stackers, these units are manually operated via a hydraulic pump handle or foot pedal, making them an ideal, cost-effective solution for lighter duty applications.
Primary Applications:
Operates via a manual hydraulic pump (hand lever or foot pedal). Some models feature a quick-lift function for light loads.
Many models feature adjustable fork widths, allowing the operator to handle various pallet sizes (Euro, Standard, etc.) with a single machine.
Equipped with rear swivel casters and brakes, allowing for precise steering and secure positioning during lifting operations.
Constructed with a steel mast and frame to ensure stability while lifting loads ranging from a few hundred kilograms to several tons.
Ensure safe operation by following these rules:
Regular maintenance extends the unit's lifespan:
| Parameter | Standard Stacker | Heavy Duty Stacker |
|---|---|---|
| Load Capacity | 500 kg - 1,000 kg | 1,500 kg - 2,000 kg |
| Lifting Height | 1,600 mm (1.6m) | 2,500 mm - 3,000 mm (3.0m) |
| Fork Width | Fixed or Adjustable | Adjustable |
| Operation Mode | Hand/Foot Pump | Hand/Foot Pump |
