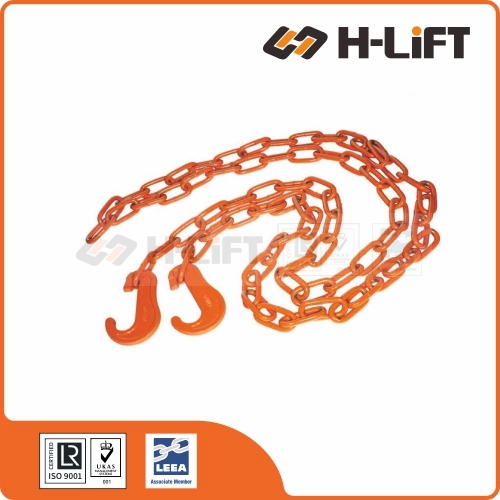

Lashing Chain with C Hooks

No.413002

The H-Lift Lashing Chain with C Hooks is a premium cargo securing solution available in 9mm, 11mm, and 13mm diameters with customizable lengths. Equipped with C hooks at both ends for secure attachment, these high-strength chains ensure reliable load restraint during transportation, compatible with chain tensioners for optimal tensioning.

  • Available in 9mm, 11mm, and 13mm diameters
  • C hooks at both ends for secure fastening
  • Customizable chain lengths for various applications
  • High-strength construction for heavy-duty cargo
  • Compatible with H-Lift chain tensioners
  • Technical Data

  • Lashing Chain with C Hook and D Ring

The Ro-Ro Lashing Chains are specialized securing assemblies designed for the fast-paced environment of Roll-on/Roll-off vessels. Fitted with C-Hooks at both ends, they instantly latch onto deck D-Rings or vehicle lashing points, facilitating rapid turnaround times. Manufactured from high-tensile steel, these chains ensure the safety of heavy trucks, excavators, and project cargo at sea.

Ro-Ro Lashing Chain with C-Hook
⚡ Quick Connection

Specialized C-Hooks at both ends allow for instant latching onto deck D-Rings. Essential for rapid securing and releasing of vehicles where time is critical.

⚓ High Breaking Load

Available in 10T, 15T, and 20T breaking loads. Provides robust security for heavy machinery and vehicles against the dynamic forces of the ocean.

🔗 Versatile Terminals

While C-Hooks are standard, we offer customization with Elephant Foot fittings or other marine terminals to match your vessel's specific lashing pots.

⚙️ Complete System

Designed to work seamlessly with our Ro-Ro Lashing Chain Tensioners (Speed Lash Levers) to create a complete, secure, and compliant lashing solution.

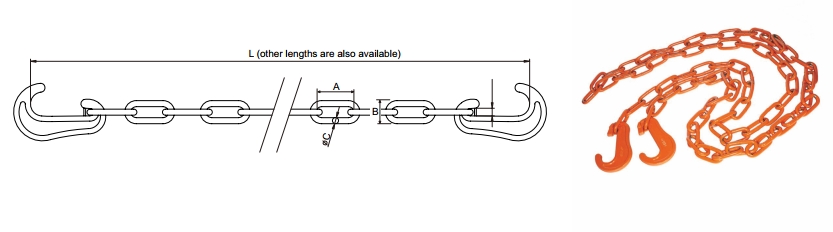

Technical Specifications

Item No. Size (mm) Breaking Load (t) Dimensions (mm) Weight (kg) Product Code
L A B C
LC0910 9 10 3500 57 34 10 5.6 413002009
LC1115 11 15 3500 64 40 12 8.5 413002011
LC1320 13 20 3500 82 49 14 12 413002013

The Lashing Chain with C-Hook and D-Ring is a robust cargo securing assembly specifically designed for the transportation industry. By combining high-strength chain with specialized attachment hardware, this system ensures that heavy cargo remains stable and safe on flatbed trailers, ships, and other cargo-carrying vehicles.

Lashing Chain with C Hook and D Ring Application
🔗 Lashing Chain

A robust and durable chain designed for securing cargo. Manufactured from high-strength steel, these chains are available in various lengths and weight capacities to accommodate different cargo sizes and operational requirements.

🪝 C-Hook Attachment

Named for its "C" shape, this hook is designed to easily latch onto specific points on the cargo or transportation equipment. It provides a quick and reliable connection method for lashing operations.

⚓ D-Ring Anchor

A "D" shaped hardware piece typically welded or attached to the vehicle structure (trailer or ship deck). It acts as the primary anchor point, allowing chains to be tied down securely to prevent load shifting.

How It Works

The system works by creating a secure link between the transport vehicle and the cargo:

  1. Connect: The C-Hook attaches directly to the D-Ring (or compatible anchor point) on the vehicle structure.
  2. Secure: The other end of the lashing chain is fastened to the cargo being transported.
  3. Tension: When properly tensioned (using a load binder), this setup stabilizes the cargo, preventing movement during transit.
⚠️ Safety & Compliance: Proper cargo securing techniques are crucial. Always ensure that the equipment used complies with relevant industry standards and is rated for the specific weight of the cargo to guarantee safety for everyone involved.
