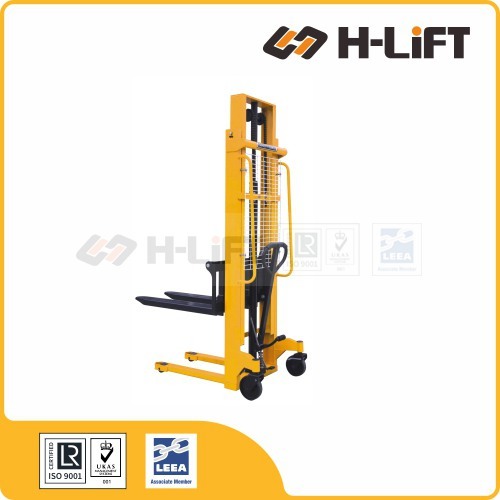

The H-Lift HMSD Type Manual Pallet Stacker is a robust, hand-operated hydraulic forklift designed to safely raise, lower, and transport palletized loads in warehouses and industrial settings.

Provides a lifting capacity ranging from 1,000 kg up to 2,000 kg, making it ideal for standard material handling and stacking operations.
Capable of reaching lifting heights from 1,600 mm up to 3,000 mm, easily accommodating various racking and distribution requirements.
Features an adjustable lifting speed mechanism and standard 1,150 mm fork lengths for versatile load positioning.
Operated manually via a dependable hydraulic pump, offering an economical and emission-free alternative to powered stackers.

Technical Data
Pallet Stacker

The HMSD Manual Hydraulic Pallet Stacker is a robust, cost-effective solution for light-to-medium duty warehouse racking and stacking. Featuring dual lifting operation via hand tiller or foot pedal, and a reinforced steel mast, it offers superior stability for vertical reach up to 3.0 meters. Its adjustable fork width ensures full compatibility with both Euro and standard pallets.

⚠️ SAFETY WARNING: OPERATION ON LEVEL FLOORS ONLY.
Manual stackers are designed strictly for operation on hard, level industrial surfaces. NEVER use on ramps or uneven terrain. Load capacity decreases as fork height increases—always consult the mast-mounted capacity chart before lifting.

⚙️ Dual Hydraulic Operation

Operate the high-efficiency hydraulic pump using the ergonomic hand tiller or the integrated foot pedal. This dual-action design allows operators to choose the most comfortable lifting position for the task at hand.

📏 Adjustable Fork Width

Equipped with a sliding fork rail, widths can be adjusted from 330mm to 740mm. This makes the HMSD compatible with a vast array of pallet types and specialized crates across different logistical standards.

🏗️ High-Reach Stability

Featuring a heavy-duty steel mast and a low center of gravity frame, the HMSD can safely lift loads up to 3,000mm. Rear swivel casters with protective brakes ensure precise positioning and stationary security during stacking.

🛠️ Zero-Maintenance Reliability

As a fully manual hydraulic unit, it requires no batteries, chargers, or motor maintenance. This makes it an ideal, always-ready standby or primary tool for facilities with low-to-medium frequency warehouse cycles.

Technical Specifications

← Swipe table left and right to view all data →

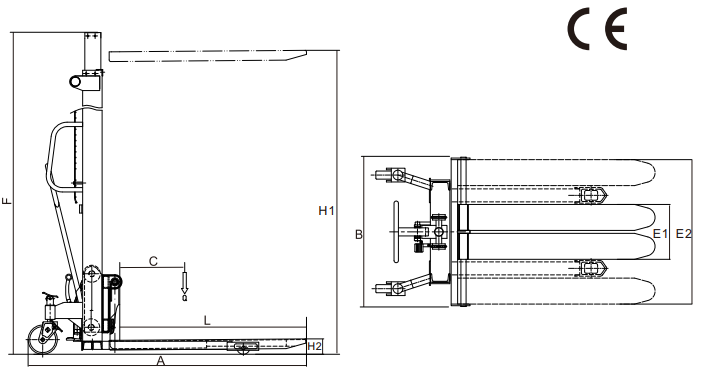

Model	Capacity	Lifting Height	Load Center	Min. Fork Height	Fork Length	Min. Fork Width	Max. Fork Width	Overall Length	Overall Width	Overall Height	Lifting Speed	Unit Weight	Product Code
	Capacity	H1	C	H2	L	E1	E2	A	B	F		Unit Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)		(kg)
HMSD10-25	1000	2500	400	90	1150	330	740	1340	950	1810	Adjustable	355	805021025
HMSD10-30	1000	3000	400	90	1150	330	740	1340	950	2060	Adjustable	370	805021030
HMSD20-16	2000	1600	400	90	1150	340	710	1525	790	2090	Adjustable	275	805022016

Q: Does the lifting capacity change as the forks go higher? A: Yes. For safety, the Working Load Limit (WLL) typically decreases as the forks reach higher elevations to maintain stability and prevent tipping. Always check the specific load capacity plate on the mast of your stacker before performing a high-lift operation.

Q: Can the forks be adjusted to fit different pallet types? A: Absolutely. The HMSD series features sliding forks that can be manually adjusted on the carriage rail. This allows the stacker to handle Euro pallets, US standard pallets, and custom skids or crates of varying widths.

Manual Pallet Stacker

Hand-Operated Hydraulic Lifter for Vertical Stacking

Vertical Lifting Hydraulic Pump Compact Design Cost-Effective

Product Overview

A manual pallet stacker (also known as a hand stacker) is a material handling device designed to lift, lower, and transport palletized loads. Unlike powered stackers, these units are manually operated via a hydraulic pump handle or foot pedal, making them an ideal, cost-effective solution for lighter duty applications.

Primary Applications:

Stacking & De-stacking: Placing pallets onto racks or shelves.
Loading/Unloading: Lifting goods onto trucks or vans.
Positioning: Raising materials to ergonomic working heights.
Tight Spaces: Operating in aisles where larger forklifts cannot fit.

Key Features & Components

Lifting Mechanism

Operates via a manual hydraulic pump (hand lever or foot pedal). Some models feature a quick-lift function for light loads.

Adjustable Forks

Many models feature adjustable fork widths, allowing the operator to handle various pallet sizes (Euro, Standard, etc.) with a single machine.

Maneuverability

Equipped with rear swivel casters and brakes, allowing for precise steering and secure positioning during lifting operations.

Robust Design

Constructed with a steel mast and frame to ensure stability while lifting loads ranging from a few hundred kilograms to several tons.

⚠️ Safety Guidelines

Ensure safe operation by following these rules:

Load Capacity: Never exceed the rated capacity. Be aware that capacity may decrease at higher lift heights.
Stable Surface: Only operate on hard, level floors. Manual stackers cannot handle ramps or uneven terrain well.
Braking: Always engage the wheel brakes before lifting or lowering a load.
Training: Operators must be trained on proper handling and load center gravity.

Maintenance & Care

Regular maintenance extends the unit's lifespan:

Lubrication: Grease the mast rollers, chains, and wheel axles regularly.
Inspection: Check the hydraulic system for leaks and ensure the lifting chain is not stretched or damaged.
Wear Check: Inspect wheels for flat spots or debris damage.

Typical Specifications

Parameter	Standard Stacker	Heavy Duty Stacker
Load Capacity	500 kg - 1,000 kg	1,500 kg - 2,000 kg
Lifting Height	1,600 mm (1.6m)	2,500 mm - 3,000 mm (3.0m)
Fork Width	Fixed or Adjustable	Adjustable
Operation Mode	Hand/Foot Pump	Hand/Foot Pump
