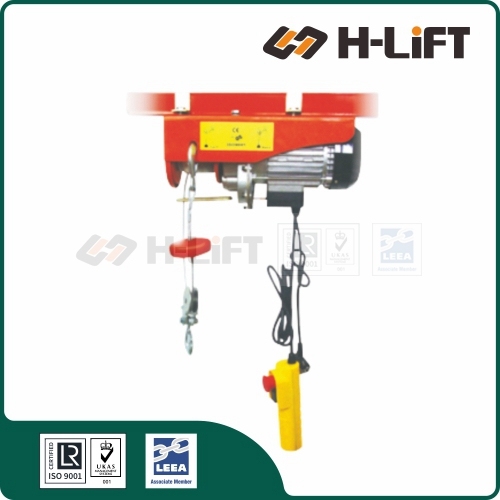

Name: Mini Electric Wire Rope Hoist Fast Speed EWH-L type
Brand: H-Lift Industries Co Ltd
SKU: 2503
Availability: InStock
Rating: 5 (1 reviews)

No.2503

The H-Lift Mini Electric Wire Rope Hoist (Fast Speed, EWH-L type) is a highly compact and efficient motorized lifting device engineered for safe, rapid material handling in space-constrained environments such as workshops, warehouses, and construction sites.

Enhanced Lifting Speed: Designed to deliver significantly faster lifting speeds compared to standard EWH models, optimizing productivity for small to medium material handling tasks requiring capacities up to 1,000 kg.
Advanced Safety Mechanisms: Equipped with a specialized stop bracket to prevent cable over-retraction, a thermal protection device to prevent motor overheating, and a pendant control handset featuring an emergency stop button.
Durable Motor & Construction: Features a high-conductivity copper motor protected to IP54 standards against dust and water spray, paired with a heavy-duty, non-rotating wire rope for stable and secure lifting.
Versatile & Easy Operation: Offers simple installation with standard electrical compatibility, operating via an intuitive pendant handset with optional remote control and hoist frame configurations available to suit diverse applications.

Technical Data
Features & Applications

Versatile Configuration: Use a Single Hook for max speed (20m/min) or a Double Hook for max capacity (500kg).

Smart Protection: Built-in limit switch automatically cuts power to prevent over-lifting.

Product Features

Double the Efficiency: Offers a rapid lifting speed of 20m/min (Single Hook) and 10m/min (Double Hook)—twice as fast as standard PA/EWH models, significantly reducing downtime.
Compact & Powerful: Designed for light-duty lifting from 100kg up to 500kg, perfect for workshops, garages, and fast-paced logistics environments.
Premium Motor: Equipped with a 100% Copper Motor for superior electrical conductivity and durability, featuring built-in Thermal Protection to prevent overheating.
Enhanced Safety: Comes with a Non-Rotating Wire Rope to keep loads stable and prevent spinning. Includes an Emergency Stop button on the pendant control.
Smart Protection: The Limit Switch and stop bracket automatically cut off power if the load is lifted too high, preventing damage to the hoist body and cable.
Easy Installation: Lightweight design running on standard single-phase power (220V/230V) makes it easy to mount on scaffolding, beams, or swing arms.

Compare Electric Hoist Models

Model Type	Lifting Speed (Single Hook)	Capacity Range	Best Application
Standard Mini Hoist Standard Speed	10 m/min	100kg - 1000kg	General home/workshop use, cost-effective lifting.
Fast Speed Mini Hoist (EWH-L) Fast Speed	20 m/min	100kg - 500kg	High efficiency tasks, frequent lifting of lighter loads.
Industrial Chain Hoist Heavy Duty	Variable / Slow	0.5T - 50T	Continuous industrial use, heavy loads, precise positioning.

Technical Specifications

Item No.	Voltage / Freq	Capacity (kg)		Input Power (W)	Lifting Speed (m/min)		Lifting Height (m)		Packing	Product Code
Item No.	Voltage / Freq	Single Hook	Double Hook	Input Power (W)	Single Hook	Double Hook	Single Hook	Double Hook	Size (mm)	Product Code
EWH200L	220-240V 50/60Hz	100	200	1020	20	10	12	6	520x420x170	250300200
EWH300L	220-240V 50/60Hz	150	300	1300	20	10	12	6	520x450x170	250300300
EWH400L	220-240V 50/60Hz	200	400	1600	20	10	12	6	560x250x350	250300400
EWH500L	220-240V 50/60Hz	250	500	1800	20	10	12	6	560x250x350	250300500

A mini electric wire rope hoist is a compact lifting device designed for handling lighter loads in various settings. Combining a lightweight structure with powerful lifting capabilities, it is the ideal solution for confined spaces in both industrial and domestic environments.

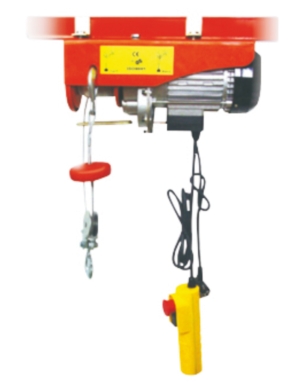

Compact Design: Illustrated above is a standard PA-style mini hoist, typically mounted on a fixed bar or swivel arm for vertical lifting.

Overview & Key Characteristics

Design & Portability: Characterized by a small footprint and lightweight structure, these hoists are easy to install and operate in confined spaces. They are often mounted on fixed structures or overhead tracks.
Lifting Capacity: Specifically tailored for lighter tasks compared to heavy industrial hoists. Capacities typically range up to 1000 kg (2200 lbs), perfect for tools, small engines, and materials.
Standard Power Supply: Operates on standard household or industrial electricity (e.g., AC 220V/230V Single Phase), drastically simplifying installation without the need for specialized 3-phase power.
Safety Features: Equipped with essential safety mechanisms, including thermal protection devices to prevent motor overheating and limit switches to ensure safe operation limits.

Main Applications

Mini electric wire rope hoists are versatile lifting devices used across various sectors due to their ease of use. Common applications include:

Workshops & Garages Ideal for lifting car engines, lightweight machinery, or heavy tools, making them essential for DIY projects and small-scale repairs.

Warehousing Commonly employed for loading and unloading goods in smaller storage areas or mezzanines, helping streamline inventory management.

Home Use Suitable for household tasks such as hoisting items into attics, lifting lawnmowers, or managing storage in personal garages.

Construction Sites Used to lift materials (cement, bricks, tools) to upper floors in tight spaces where large cranes cannot access.

Agriculture Useful for moving equipment, feed bags, or supplies within barns and farms, enhancing efficiency in daily operations.

Light Manufacturing Utilized in small factories for lifting components onto assembly lines or positioning parts during the manufacturing process.

Overall, mini electric wire rope hoists offer a practical, cost-effective solution for lifting lighter loads in confined spaces across multiple industries.
