The H-Lift Pear Shaped Wire Rope Socket (sometimes called a "Pear Socket" or "Gold Nose") is a specialized high-strength termination designed for use with specific connecting links, such as quick-release links, to allow smooth passage over sheaves and rollers. Commonly used in dragline, dredging, and heavy construction operations, this socket features a compact, streamlined profile that minimizes wear and snagging while delivering 100% of the wire rope's breaking strength when installed with resin or zinc.

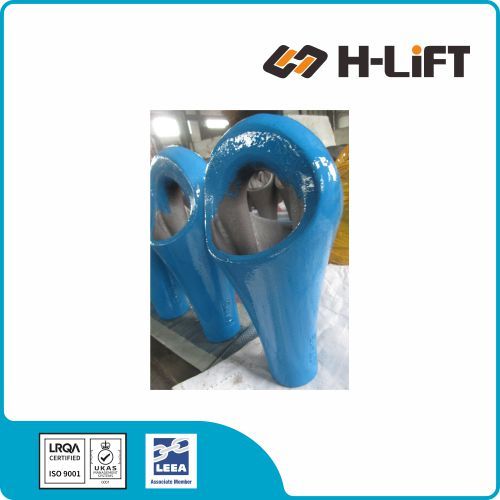

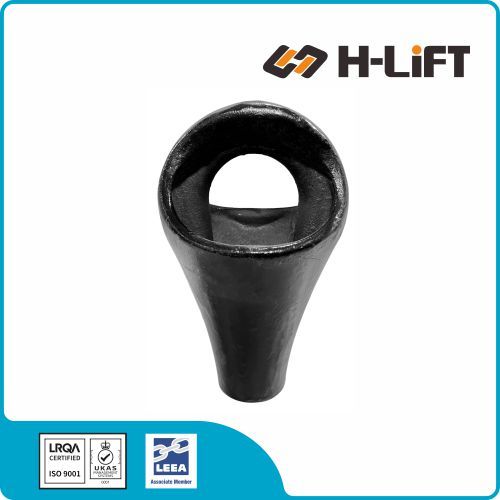

The Pear-shaped Wire Rope Socket (WRS-PS) is a specialized termination designed with a streamlined profile to pass smoothly over sheaves and pulleys. Manufactured from high-tensile or manganese steel, it offers exceptional durability for draglines, mining, and applications involving Quick-Release Links.
Engineered with a streamlined profile that allows the socket to pass smoothly over sheaves and pulleys without catching or damaging equipment.
Often cast from Austenitic Manganese Steel. This material work-hardens under impact, making it incredibly resistant to abrasion in mining environments.
When installed with resin or molten zinc, these sockets achieve 100% of the wire rope's breaking load. Designed with a 5:1 safety factor.
The standard connection point for Quick-Release Links. Ideal for draglines, offshore towing, and heavy recovery operations.
Refer to the diagram above for dimensions: A, B, C, D, E, F, G, H, I| Item No. | Pear No. | Wire Rope (mm) |
W.L.L. (kg) |
Dimensions (mm) | Weight (kg) |
Product Code | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | ||||||
| WRSPS19 | 5 | 18-19 | 4500 | 135 | 84 | 33 | 245 | 21 | 19 | 30 | 42 | 20 | 0.8 | 6070004019 |
| WRSPS21 | 6 | 20-21 | 5000 | 152 | 84 | 36 | 310 | 23 | 21 | 33 | 38 | 20 | 1.02 | 6070004021 |
| WRSPS24 | 7 | 22-24 | 7000 | 166 | 100 | 40 | 310 | 26 | 23 | 37 | 48 | 26 | 1.94 | 6070004024 |
| WRSPS27 | 8 | 25-27 | 8000 | 186 | 100 | 43 | 350 | 28 | 25 | 39 | 44 | 29 | 2.6 | 6070004027 |
| WRSPS30 | 9 | 28-30 | 11000 | 202 | 120 | 45 | 350 | 32 | 28 | 40 | 58 | 31 | 3.38 | 6070004030 |
| WRSPS33 | 10 | 31-33 | 13000 | 222 | 120 | 52 | 445 | 32 | 28.5 | 45 | 56 | 35 | 4.42 | 6070004030 |
| WRSPS36 | 11 | 34-36 | 15000 | 239 | 142 | 55 | 445 | 36 | 31.5 | 50 | 70 | 37 | 5.82 | 6070004036 |
| WRSPS39 | 12 | 37-39 | 17000 | 264 | 142 | 60 | 495 | 39 | 34.5 | 51 | 64 | 40 | 6.3 | 6070004039 |
| WRSPS42 | 13 | 40-42 | 21000 | 285 | 166 | 63 | 555 | 43 | 36.5 | 59 | 80 | 43 | 9.3 | 6070004042 |
| WRSPS45 | 14 | 41-45 | 26000 | 312 | 166 | 68 | 595 | 47 | 40 | 62 | 72 | 47 | 11 | 6070004055 |
| WRSPS48 | 15 | 46-48 | 30000 | 337 | 170 | 75 | 595 | 51 | 44 | 66 | 68 | 51 | 12.1 | 6070004048 |
| WRSPS56 | 17 | 52-56 | 42500 | 400 | 220 | 84 | 880 | 60 | 54 | 75 | 90 | 59 | 21.3 | 6070004056 |
