Polyester Round Sling AS 4497

Item No.: 3070-au
H-Lift endless type round slings are made to Australian Standard AS 4497. Round slings are an all-purpose lifting sling enabling a strong and non-damaging lift of a load.
Description Safe Use of Roundsling
Description
H-Lift Endless type Roundsling to AS 4497

Round slings are an all-purpose lifting sling enabling a strong and non-damaging lift of a load. They are extremely light weight and flexible in multiple directions, allowing easy and quick manipulation even when fragile loads are being lifted. Round slings are a continuous loop made from polyester yarn encased in a sleeve of polyester fabric. The sleeve is constructed, so that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times. The yarn fibre (core) is free to spread out where the round sling is in contact with its load. This provides a broad support, which cushions the load against damage and reduces slipping. The low stretch characteristics of the polyester yarn also prevent load bounce when lifting.

  • A roundsling is a sling comprising a core enclosed in a protective cover.
  • Made from high-tenacity polyester yarn (PES).
  • Roundsling sleeve is made by extra strong PU-impregnated webbing.
  • Colour coded for easy capacity recognition. Black roundslings are also available.
  • Capacity stripes: each stripe is equal to 1 tonne capacity.
  • Standard roundsling length(EWL): 0.5m ~ 10m, longer length available on request.
  • Low elongation, extremely lightweight, flexible and pliable.
  • It is less damaging on contacting load surfaces than metal slings.
  • Standard: AS 4497.1
  • Safety factor :7:1

H-Lift Polyester Round Sling AS 4497




Item No. WLL of Roundsling in Straight Lift/
Colour of Roundsling Cover
Working Load Limits in tonnes Product Code
Straight Lift Choked Lift Basket Hitch
Parallel β=
0˚ to 45˚
β=
45˚to 60˚
M=1 M=0.8 M=2 M=1.4 M=1
RS01-001 1t/Violet 1 0.8 2 1.4 1 307001001

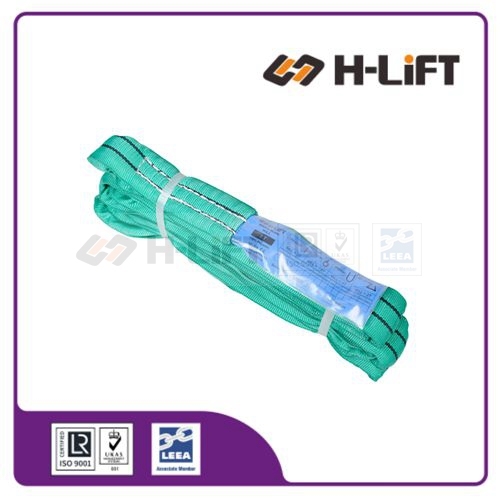

RS01-002 2t/Green 2 1.6 4 2.8 2 307001002
RS01-003 3t/Yellow 3 2.4 6 4.2 3 307001003

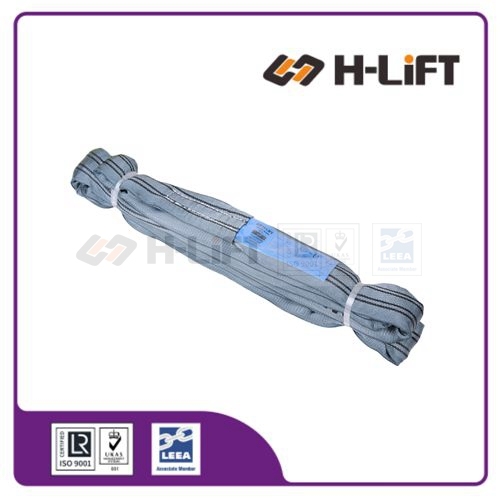

RS01-004 4t/Grey 4 3.2 8 5.6 4 307001004
RS01-005 5t/Red 5 4 10 7 5 307001005
RS01-006 6t/Brown 6 4.8 12 8.4 6 307001006
RS01-008 8t/Blue 8 6.4 16 11.2 8 307001008
RS01-010 10t/Orange 10 8 20 14 10 307001010
RS01-012 12t/Orange 12 9.6 24 16.8 12 307001012
RS01-015 15t/Orange 15 12 30 21 15 307001015
RS01-020 20t/Orange 20 16 40 28 20 307001020
RS01-025 25t/Orange 25 20 50 35 25 307001025
RS01-030 30t/Orange 30 24 60 42 30 307001030
RS01-035 35t/Orange 35 28 70 49 35 307001035
RS01-040 40t/Orange 40 32 80 56 40 307001040
RS01-045 45t/Orange 45 36 90 63 45 307001045
RS01-050 50t/Orange 50 40 100 70 50 307001050
RS01-060 60t/Orange 60 48 120 84 60 307001060
RS01-080 80t/Orange 80 64 160 112 80 307001080
RS01-100 100t/Orange 100 80 200 140 100 307001100
RS01-120 120t/Orange 120 96 240 168 120 307001120
RS01-200 200t/Orange 200 160 400 280 200 307001200
M = Mode factor for symmetrical loading. Handling tolerance for slings or parts of slings indicated as vertical =6˚


When ordering it is important to make clear whether the length specified is effective working length or circumference length.

Roundsling Effective Working Length

Safe Use of Roundsling

ALWAYS
• Store and handle roundslings correctly.
• Inspect roundslings and accessories before use and before placing into storage.
• Follow safe slinging practices, as given overleaf.
• Position the bight for choke lift at 120°(natural angle).
• Apply correct mode factor for the slinging arrangement.
• Use protection (to avoid cutting, friction etc) and fittings which allow the sling to form smooth radii.

NEVER:

• Attempt to shorten, knot or tie roundslings.
• Expose roundslings to direct heat or flames.
• Use roundslings at temperatures above 80°C or below 0°C without consulting the supplier.
• Expose roundslings to chemicals without consulting the supplier.
• Shock load roundslings.
• Use roundslings with cut or damaged outer covers.
• Use a sling with a missing/damaged label or illegible markings


Selecting the Correct Sling
Roundslings are available in a range of materials and sizes in endless sling form. Select the slings to be used and plan the lift taking the following into account:
Material – polyester, identified by a blue label, is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) identified by a green label, is virtually immune to alkalis but is damaged by acids; polypropylene, identified by a brown label, is little affected by acids or alkalis but is damaged by some solvents, tars and paints and therefore suitable for appliances where the highest resistance to chemicals other than solvents is required.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method.
For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions.
For round slings made to BS EN 1492-2:2000 + A1: 2008 *
Polyester and Polymide -40ºC to 100ºC Proypropylene -40ºC to 80ºC

Ranges vary in a chemical environment, in which case the advice of the manufacturer or supplier should be sought.
If the slings are to be used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°.
If abrasion, heat generated by friction or cutting from edges or corners which may damage the sling are likely, select a sling fitted with additional protective sleeves and/or use suitable packing.
Slings with grade 8 fittings and multi-leg master links should not be used in acidic conditions. Contact with acids or acidic fumes causes embrittlement to grade 8 materials. If exposure to chemicals is likely, the manufacturer or supplier should be consulted.


Storing and Handling Roundslings
Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried naturally. Never force dry roundslings.
Store roundslings by hanging on non-rusting pegs which allow the free circulation of air.
The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight.
Do not alter, modify or repair a roundsling but refer such matters to a Competent Person.



NOTE: The material from which the roundsling is manufactured may be identified by the colour of the label or printing on the label: Polyester = Blue, Polyamide (Nylon) = Green, Polypropylene = Brown. The outer sleeve of the sling will also be colour coded to indicate the SWL in straight pull.

Using Roundslings Safely

Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied.
Do not use defective slings or accessories.
Check for correct engagement with fittings and appliances, ensuring smooth radii are formed which allow the sling to assume its naturally flattened form under load. Do not overcrowd fittings.
Position the bight for a choke lift at the natural (120°) angle to prevent friction being generated.
Keep labels away from hooks and fittings.
Take the load steadily and avoid shock loads.
Do not leave suspended loads unattended. In an emergency cordon off the area.

In-service Inspection and Maintenance
Maintenance requirements are minimal. Roundslings may be cleaned with clear water. Remember weak chemical solutions will become increasingly stronger by evaporation
Before each use inspect roundslings and, in the event of the following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged or cut outer cover; damaged stitching; exposed inner core; heat damage; burns; chemical damage.
