A quick link is a type of metal connector that is similar in design to a carabiner or snap hook. It consists of a looped end with a threaded nut that can be screwed onto the other end to secure it in place. Quick links are typically made from steel or other metals and come in a range of sizes and strengths to accommodate various load capacities.
Quick links are commonly used in a variety of applications, including rock climbing, caving, and industrial rigging. They are often used to connect components of a system together, such as ropes, chains, or cables. They can also be used to attach equipment to fixed anchors, such as bolts or pitons.
Quick links are easy to use and can be quickly attached or detached from a fixed object or other equipment. However, it's important to choose the right size and strength for the intended use to ensure safe and secure attachment. It's also important to inspect quick links regularly for signs of wear or damage, as they can be subject to fatigue and stress over time.

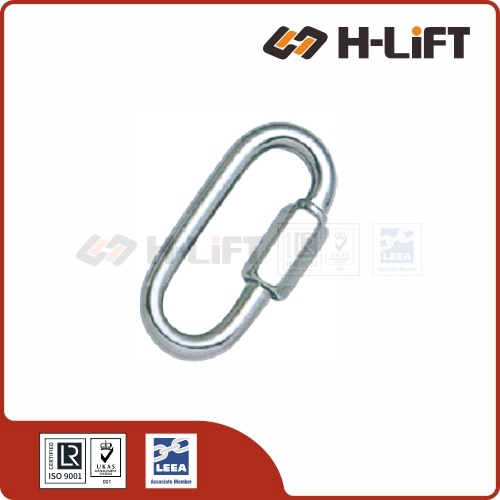

H-Lift Quick Link, Zinc Plated
Item No. | Size/mm | WLL/lbs | Product Code | |
QLZ030 | 3 | 130 | 704004030 | |
QLZ035 | 3.5 | 175 | 704004035 | |
QLZ040 | 4 | 500 | 704004040 | |
QLZ050 | 5 | 650 | 704004050 | |
QLZ060 | 6 | 875 | 704004060 | |
QLZ070 | 7 | 1200 | 704004070 | |
QLZ080 | 8 | 1525 | 704004080 | |
QLZ090 | 9 | 1975 | 704004090 | |
QLZ100 | 10 | 2300 | 704004100 | |
QLZ120 | 12 | 2500 | 704004120 | |
QLZ140 | 14 | 2800 | 704004140 | |
QLZ160 | 16 | 3000 | 704004160 |
H-Lift Wide Jaw Quick Link, Zinc Plated
Item No. | Size/mm | WLL/lbs | Product Code | |
WQL035 | 3.5 | 175 | 704009035 | |
WQL050 | 5 | 650 | 704009050 | |
WQL060 | 6 | 875 | 704009060 | |
WQL080 | 8 | 1525 | 704009080 | |
WQL100 | 10 | 2300 | 704009100 | |
WQL120 | 12 | 2500 | 704009120 |
H-Lift Delta Shaped Quick Link, Zinc Plated
Item No. | Size/mm | WLL/lbs | Product Code | |
DQL035 | 3.5 | 120 | 704010035 | |
DQL050 | 5 | 450 | 704010050 | |
DQL060 | 6 | 600 | 704010060 | |
DQL080 | 8 | 1100 | 704010080 | |
DQL100 | 10 | 1500 | 704010100 | |
DQL120 | 12 | 1650 | 704010120 | |
DQL140 | 14 | 1900 | 704010140 |
H-Lift Pear Shaped Quick Link, Zinc Plated
Item No. | Size/mm | WLL/lbs | Product Code | |
PQLZ035 | 3.5 | 120 | 704011035 | |
PQLZ040 | 4 | 350 | 704011040 | |
PQLZ050 | 5 | 450 | 704011050 | |
PQLZ060 | 6 | 600 | 704011060 | |
PQLZ080 | 8 | 1100 | 704011080 | |
PQLZ090 | 9 | 1300 | 704011090 | |
PQLZ100 | 10 | 1500 | 704011100 | |
PQLZ120 | 12 | 1650 | 704011120 |
