Folding Handle Ratchet Load Binders
Superior Safety, Maximum Leverage, and Compact Lashing
Anti-Injury Folding Design DOT & CVSA Compliant 4:1 Safety Factor
Folding Handle Ratchet Binders represent the pinnacle of cargo securement safety. By combining the precise, effortless tensioning of a traditional ratchet binder with a revolutionary folding handle, these binders eliminate protruding hazards, prevent dangerous "snap-backs," and offer maximum leverage for heavy-duty transport.
Product Features & Safety Innovations
🛡️

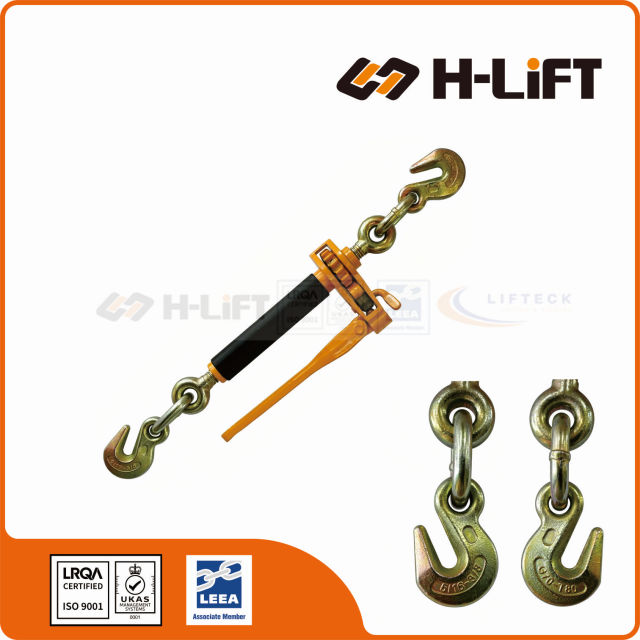

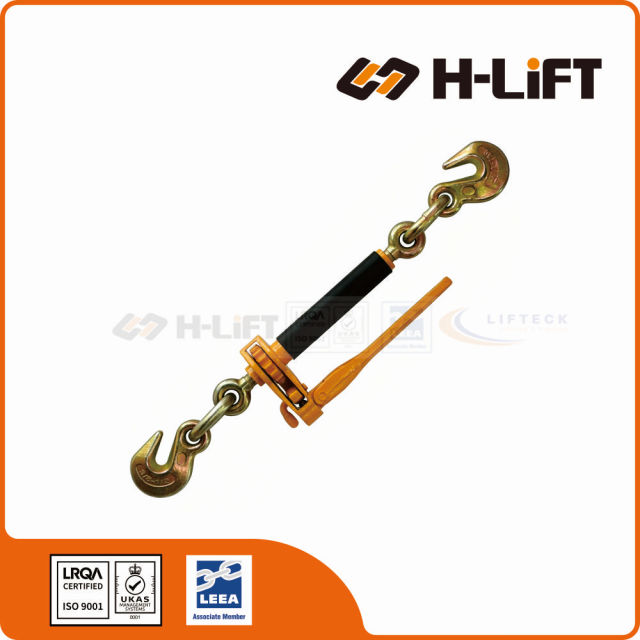

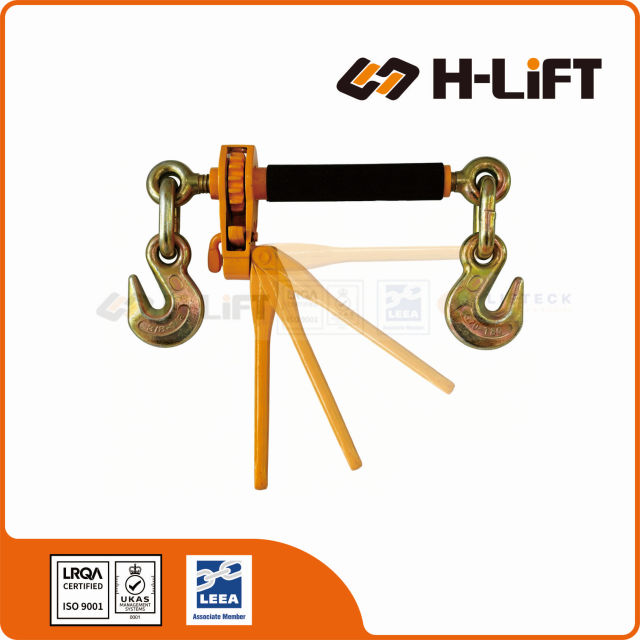

Anti-Injury Folding Handle
The forged handle folds completely down against the barrel once tension is set. This eliminates the risk of a protruding handle striking a passerby and prevents the dangerous "snap-back" hazards common in traditional lever-style binders.
📐
Space-Saving Design
Ideal for tight spots on trailers, inside equipment toolboxes, or multi-chain configurations. The low profile prevents the handle from being damaged by passing debris or shifting cargo during transit.
🏗️
Forged Industrial Strength
Built with heat-treated, drop-forged alloy steel. The barrel, take-up screws, and 360-degree swivel grab hooks feature baked-on powder coating and zinc-dichromate plating for maximum weather resistance.
🔒
Tamper Resistance
When securely folded, the handle is significantly more difficult to accidentally disengage or catch on external objects, providing an extra layer of reliable security during long-haul transport.
⚙️ Advanced Operation & Control
- 3-Position Gear Lever: Switch seamlessly between extension, final tightening, and free-spin modes with a quick turn of the vinyl-coated lever.
- Free-Spin Mode: Intended for extremely fast adjustment in either direction. The vinyl-coated body provides a solid, comfortable grip so you can quickly take up chain slack before switching to ratcheting mode.
- Maximum Leverage: When extended, the heavy-duty handle provides exceptional leverage, allowing you to achieve proper tension on your tie-down chain every time with minimal physical effort.
- Chain Compatibility: Swivel grab hooks engage easily with transport chain. Always match the binder to the grade and size of the chain you are using (compatible up to Grade 100).
🚨 BEWARE: The 4:1 Safety Factor Standard
H-Lift binders are properly rated with your ultimate safety in mind. Our ratings are based strictly on a 4:1 Safety Factor, which is the correct standard recommended by the NACM (National Association of Chain Manufacturers).
Beware of cheaper binders on the market that advertise high capacities but base their numbers on a risky 3:1 safety factor. This is highly misleading to the user and structurally unsafe for heavy transport. Our binders meet or exceed all CVSA and DOT specifications.
Dimensional Specifications & WLL
| Item No. |
Min-Max Chain Size (inch) |
Working Load Limit (lbs) |
Proof Load (lbs) |
Min. Ultimate Load (lbs) |
Weight (kg) |

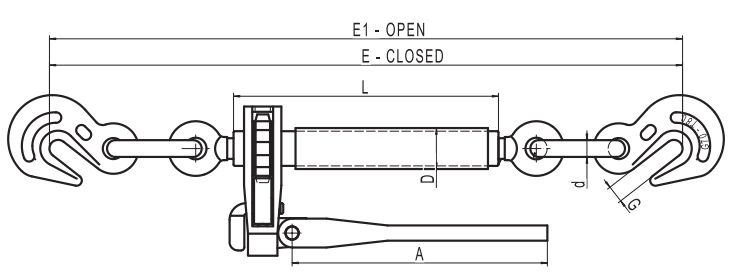

Dimensions (mm) |
Product Code |
| A |
L |
d |
D |
E |
E1 |
G |
| RLBF10 |
5/16 - 3/8 |
7,100 |
14,200 |
28,400 |
5.10 |
242.5 |
252 |
14 |
38.5 |
568 |
733 |
12.8 |
411007038 |
| RLBF13 |
3/8 - 1/2 |
12,000 |
24,000 |
48,000 |
6.10 |
242.5 |
252 |
16 |
38.5 |
599 |
764 |
16.0 |
411007012 |
| RLBF16 |
1/2 - 5/8 |
18,100 |
36,200 |
72,400 |
8.43 |
242.5 |
252 |
19 |
42.0 |
663 |
828 |
19.0 |
411007058 |
Frequently Asked Questions
Q: Is a folding handle binder as strong as a fixed handle binder?
A: Yes. The load-bearing components (the screw threads, barrel body, and grab hooks) are identical in forged strength. The folding mechanism is purely an ergonomic and safety feature; it does not reduce the Working Load Limit (WLL) of the assembly in any way.
Q: Does this binder meet DOT and CVSA requirements?
A: Yes. H-Lift load binders are designed, forged, and explicitly marked in accordance with FMCSA and CVSA standards. Just ensure that the WLL of the binder matches or exceeds the WLL of the transport chain you are tensioning.
