Rigging Screw

Item No.: 702005
A closed body rigging screw, also known as a turnbuckle, is a mechanical device used to adjust the tension or length of a cable, wire, rope, or rod in applications such as rigging, construction, maritime, and various other industries.
Description Closed Body Rigging Screw
Description

H-Lift Rigging Screw/Closed Body Turnbuckle
A closed body rigging screw, also known as a turnbuckle, is a mechanical device used to adjust the tension or length of a cable, wire, rope, or rod in applications such as rigging, construction, maritime, and various other industries. It consists of two threaded eye bolts, each with a right-hand or left-hand thread, which are connected by a central body.

  • Compact, lightweight and durable construction.
  • Easy to adjust the length using standard tools.
  • The adjusted length is securely locked by closing the locking nuts.
  • All parts are hot dip galvanized for long service life.
  • The closed body design protects the threads from damage and at the same time prevent dirt from entering into the center body.
  • End fitting: hook & hook, hook & eye, eye & eye, jaw & jaw, jaw & eye
Closed Body Rigging Screw

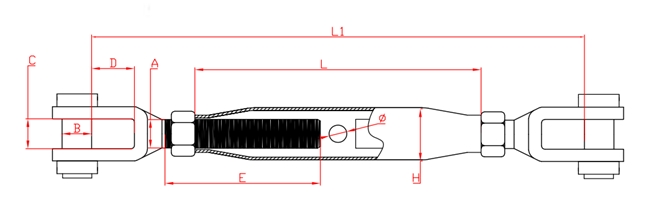

Item No. Size WLL Main Dimensions mm Weight Product Code
A ton L B C D E φ H L1 min L1 max kg
TBRS06 M6 0.2 102 6 8.5 17.5 50 6 12 180 250 0.12 702005006
TBRS08 M8 0.3 127 6 12 18.5 55 6 16 205 275 0.21 702005008
TBRS10 M10 0.5 152 8 14 25 65 8 20 240 340 0.46 702005010
TBRS12 M12 0.7 229 10 16 27 100 10 25 320 480 0.9 702005012
TBRS16 M16 1.2 229 12 18 35 105 12 28 360 500 1.5 702005016
TBRS20 M20 1.5 229 16 23 38 115 12 32 375 515 2 702005020
TBRS22 M22 2.2 305 20 27 41 145 13 34 465 665 2.5 702005022
TBRS24 M24 5 356 22 29 42 165 13 42 530 770 4.3 702005024
TBRS33 M33 7 381 27 38 58 180 14 49 590 850 8 702005033
TBRS39 M39 10 406 33 44 63 210 16 60 660 925 14.1 702005039
TBRS50 M50 17 407 42 55 100 230 18 76 740 1010 30 702005050
Closed Body Rigging Screw

A closed body rigging screw, also known as a turnbuckle, is a mechanical device used to adjust the tension or length of a cable, wire, rope, or rod in applications such as rigging, construction, maritime, and various other industries. It consists of two threaded eye bolts, each with a right-hand or left-hand thread, which are connected by a central body.

The body can be turned, effectively changing the distance between the two eye bolts and thus adjusting the tension in the connected material.

Closed body rigging screws are designed to provide a reliable and adjustable means of tensioning without exposing the internal components to environmental elements like dust, dirt, or moisture. The closed design helps protect the threaded components from corrosion, which can be particularly important in outdoor or marine environments.


These devices are commonly used in scenarios where it's necessary to maintain a specific tension or length in cables, wires, or ropes, such as in sailboat rigging, wire fencing, shade structures, and more. They offer a simple yet effective way to tighten or loosen lines as needed for optimal performance or structural integrity.


When using closed body rigging screws, it's important to follow proper guidelines and safety procedures to ensure the correct level of tension and to prevent over-tightening, which could lead to damage or failure of the material being tensioned.
