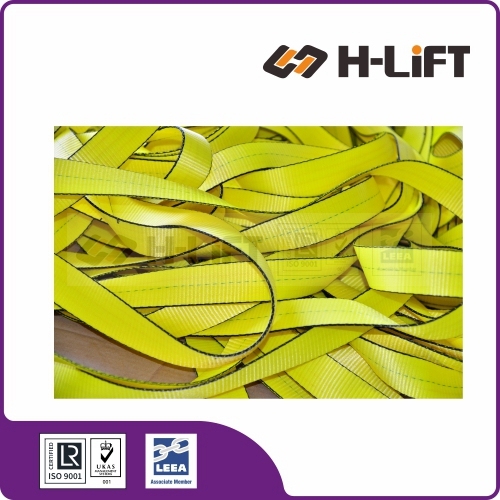

Single Ply Eye and Eye Synthetic Web Sling Class 5
| Item No. | Webbing Width (inch) | Working Load Limit (lbs) Single Leg Hitch Types | Product Code | ||
| Vertical | Choker | Vertical Basket | |||
 |
 |
 |
|||
| WS03-1-6010 | 1 | 1,100 | 880 | 2,200 | 303016010 |
| WS03-1-6015 | 1-1/2 | 1,600 | 1,280 | 3,200 | 303016015 |
| WS03-1-6017 | 1-3/4 | 1,900 | 1,520 | 3,800 | 303016017 |
| WS03-1-6020 | 2 | 2,200 | 1,760 | 4,400 | 303016020 |
| WS03-1-6030 | 3 | 3,300 | 2,640 | 6,600 | 303016030 |
| WS03-1-6040 | 4 | 4,400 | 3,520 | 8,800 | 303016040 |
| WS03-1-6050 | 5 | 5,500 | 4,400 | 11,000 | 303016050 |
| WS03-1-6060 | 6 | 6,600 | 5,280 | 13,200 | 303016060 |
The rated capacities are based on stuffer weave construction webbing with a minimum certified tensile strength of 6800 pounds per inch of webbing width.
Basic Sling Types
Type I
Sling made with a triangle fitting on one end and a slotted triangle choker fitting on the other end. It can be used in a vertical, basket, or choker hitch.
Type II
Sling made with a triangle fitting on both ends. It can be used in a vertical or basket hitch only
Type III
Sling made with a flat loop eye on each end with loop eye opening on same plane as sling body. This type of sling is sometimes called a flat eye-and-eye, eye-and-eye, or double-eye sling.
Type IV
Sling made with both loop eyes formed as in Type III, except that the loop eyes are turned to form a loop eye which is at a right angle to the plane of the sling body. This type of sling is commonly referred to as a twisted-eye sling
Type V
Endless sling, sometimes referred to as a grommet. It is a continuous loop formed by joining the ends of the webbing together.
Type VI
Return-eye (reversed-eye) sling is formed by using multiple widths of webbing held edge-to-edge. A wear pad is attached on one or both sides of the sling body and on one or both sides of the loop eyes to form a loop eye at each end which is at a right angle to the plane of the sling body.
How to measure the length of the web sling ?
