Single Ply Eye & Eye Synthetic Web Sling Class 7

Description Basic Sling Types

Description

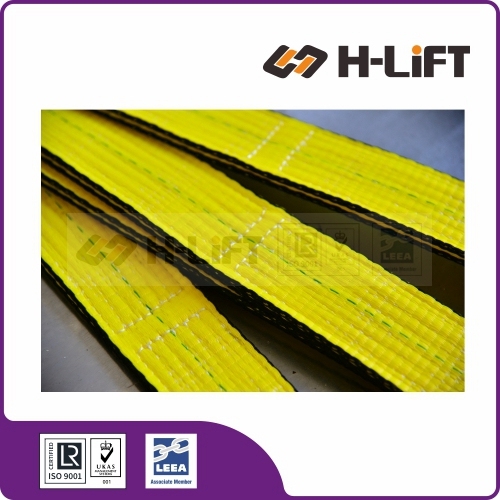

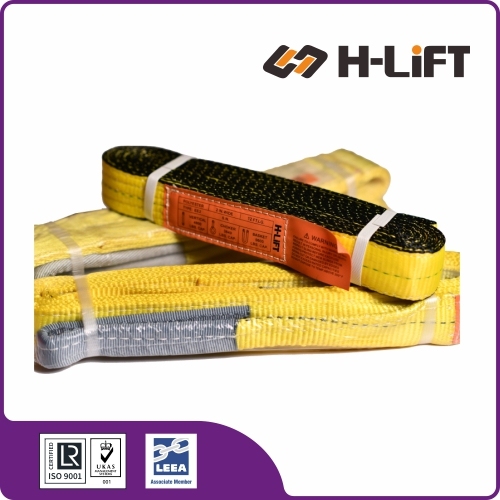

Single Ply Eye & Eye Synthetic Web Sling Class 7

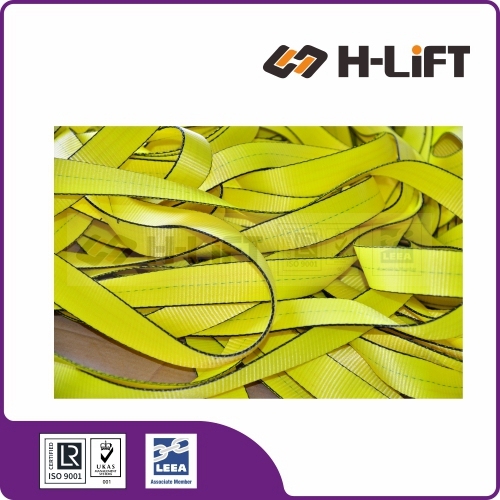

A single ply eye & eye synthetic web sling Class 7 is a type of lifting sling made from high-tenacity polyester yarn, designed for heavy-duty applications. Here are the key specifications:
Material: High tensile strength polyester yarn
Ply: Single (one ply)
Class: Class 7, which indicates a minimum certified tensile strength of 9,800 lbs per inch of width
Safety Factor: 5:1
Standard: Conforms to ASME/ANSI B30.9 and WSTDA-WS-1 standards
Applications: Suitable for a variety of lifting tasks, including construction, manufacturing, and shipping, where heavy loads need to be safely lifted and transported.
Advantages: The single ply design allows for easy handling and reduces the risk of damage to the load's surface. The eye & eye design allows for secure attachment to hooks or other lifting devices, providing versatility in various lifting configurations.Single ply eye & eye synthetic web slings Class 7 are an excellent choice for heavy-duty lifting applications, offering both strength and reliability in demanding conditions.

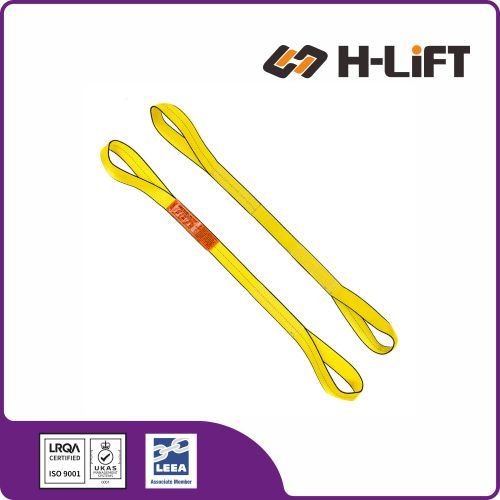

Single Ply Eye and Eye Synthetic Web Slings, classified as Class 7, are designed for various lifting applications. These slings typically feature flat loop eyes on both ends, allowing for use in multiple hitch configurations, including choker, vertical, and basket hitches.

Flat Eyes (Type 3): The eyes are oriented in the same plane as the sling body, suitable for general use.

Twisted Eyes (Type 4): The eyes are turned to form a loop at a right angle to the sling body, which can enhance performance in certain hitch configurations.
Lightweight: They are easier to handle compared to metal slings.
Flexibility: They can conform to various load shapes.
Reduced Damage: The soft webbing is less likely to damage the load or surfaces compared to steel slings

It is crucial to adhere to the specified work load limits to ensure safety during lifting operations. Overloading can lead to sling failure, posing risks to personnel and equipment

Single Ply Eye and Eye Synthetic Web Sling Class 7

Item No.	Webbing Width (inch)	Working Load Limit (lbs) Single Leg Hitch Types			Product Code
		Vertical	Choker	Vertical Basket


WS03-1-9010	1	1,600	1,280	3,200	303019010
WS03-1-9015	1-1/2	2,300	1,840	4,600	303019015
WS03-1-9017	1-3/4	2,700	2,160	5,400	303019017
WS03-1-9020	2	3,100	2,480	6,200	303019020
WS03-1-9030	3	4,700	3,760	9,400	303019030
WS03-1-9040	4	6,200	4,960	12,400	303019040
WS03-1-9050	5	7,800	6,240	15,600	303019050
WS03-1-9060	6	9,300	7,440	18,600	303019060
WS03-1-9080	8	11,800	9,440	23,600	303019080
WS03-1-9100	10	14,700	11,760	29,400	303019100
WS03-1-9120	12	17,600	14,080	35,200	303019120

The rated capacities are based on stuffer weave construction webbing with a minimum certified tensile strength of 9800 pounds per inch of webbing width.

Related Products

Flat webbing sling to en1492-1 China manufacturer

Flat Webbing Sling EN 1492-1

Polyester Roundsling EN1492-2

ratchet tie down lashing strap en12195-2 China supplier

Ratchet Tie Down Strap EN 12195-2

Lifting Webbing Belt

Basic Sling Types

Basic Sling Types

Type I
Sling made with a triangle fitting on one end and a slotted triangle choker fitting on the other end. It can be used in a vertical, basket, or choker hitch.
Basic Sling Type 1, H-Lift

Type II
Sling made with a triangle fitting on both ends. It can be used in a vertical or basket hitch only
Basic Sling Type 2, H-Lift China

Type III
Sling made with a flat loop eye on each end with loop eye opening on same plane as sling body. This type of sling is sometimes called a flat eye-and-eye, eye-and-eye, or double-eye sling.
eye and eye webbing sling, h-lift China

Type IV
Sling made with both loop eyes formed as in Type III, except that the loop eyes are turned to form a loop eye which is at a right angle to the plane of the sling body. This type of sling is commonly referred to as a twisted-eye sling
Flat webbing sling with twisted eyes

Type V
Endless sling, sometimes referred to as a grommet. It is a continuous loop formed by joining the ends of the webbing together.
Endless type webbing sling

Type VI
Return-eye (reversed-eye) sling is formed by using multiple widths of webbing held edge-to-edge. A wear pad is attached on one or both sides of the sling body and on one or both sides of the loop eyes to form a loop eye at each end which is at a right angle to the plane of the sling body.
Synthetic web sling with reverse eye, h-lift China

How to measure the length of the web sling ?
H-Lift Web Sling Length
