Product Features

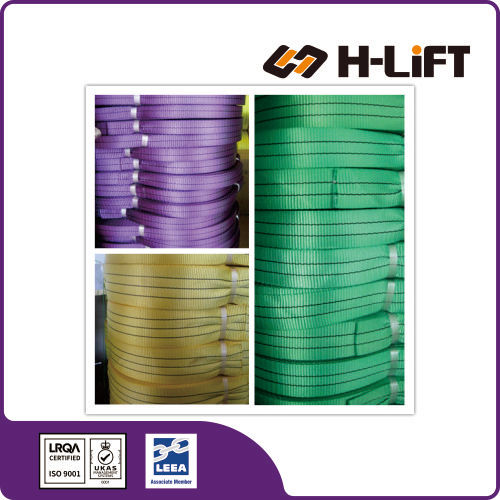

- Premium Raw Material Manufactured from 100% high-tenacity polyester (PES) yarn, offering low elongation, high tensile strength, and excellent UV resistance for long-lasting sling performance.
- Complete Manufacturing Range Available in a full range of widths from 25mm (1 inch) up to 300mm (12 inches) to produce slings with Working Load Limits (WLL) from 1 Tonne to 12 Tonnes.
- Global Standard Compatibility Stocked in multiple weave constructions to meet 5:1 (US ASME B30.9), 6:1, 7:1 (EU EN 1492-1), and 8:1 (Australian AS 1353) safety factor requirements.
- International Color Coding The webbing is dyed to strict international color codes (Violet, Green, Yellow, Grey, Red, Brown, Blue, Orange) for easy capacity identification of the finished product.
- Customization Ready Can be supplied with custom printing (e.g., your company logo, WLL markings) directly on the webbing to enhance your brand visibility.
- Industrial Grade Heavy-duty woven structure designed specifically for the rigorous demands of industrial lifting and construction applications.
| Safety Factor |
Target Standard |
Common Market |
Breaking Strength Example (1T Webbing) |
5:1
US / General |
ASME B30.9 |
USA, Asia |
~5,000 kg |
7:1
EU Standard |
EN 1492-1 |
Europe, Global |
~7,000 kg |
8:1
High Duty |
AS 1353 |
Australia |
~8,000 kg |
1T Sling Webbing (Violet)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB1T5F |
Purple |
5:1 |
25 |
3125 |
306050001 |
| WB1T6F |
Purple |
6:1 |
25 |
3750 |
306060001 |
| WB1T7F |
Purple |
7:1 |
25/30/50 |
4500 |
306070001 |
| WB1T8F |
Purple |
8:1 |
50 |
5000 |
306080001 |

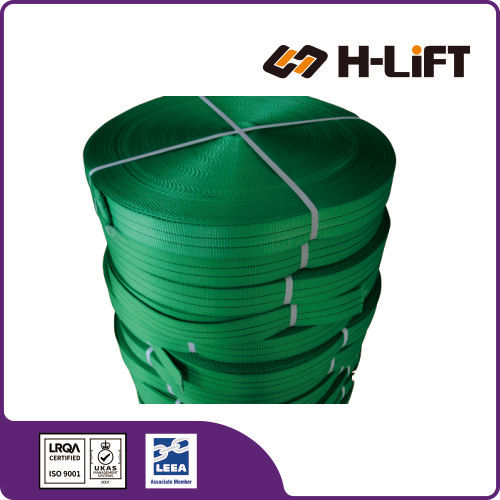

2T Sling Webbing (Green)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB2T5F |
Green |
5:1 |
50 |
6250 |
306050002 |
| WB2T6F |
Green |
6:1 |
50 |
7500 |
306060002 |
| WB2T7F |
Green |
7:1 |
50/60 |
9000 |
306070002 |
| WB2T8F |
Green |
8:1 |
60 |
10000 |
306080002 |
3T Sling Webbing (Yellow)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB3T5F |
Yellow |
5:1 |
75 |
9375 |
306050003 |
| WB3T6F |
Yellow |
6:1 |
75 |
11250 |
306060003 |
| WB3T7F |
Yellow |
7:1 |
75/90 |
13500 |
306070003 |
| WB3T8F |
Yellow |
8:1 |
90 |
15000 |
306080003 |
4T Sling Webbing (Grey)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB4T5F |
Grey |
5:1 |
100 |
12500 |
306050004 |
| WB4T6F |
Grey |
6:1 |
100 |
15000 |
306060004 |
| WB4T7F |
Grey |
7:1 |
100/120 |
18000 |
306070004 |
| WB4T8F |
Grey |
8:1 |
120 |
20000 |
306080004 |

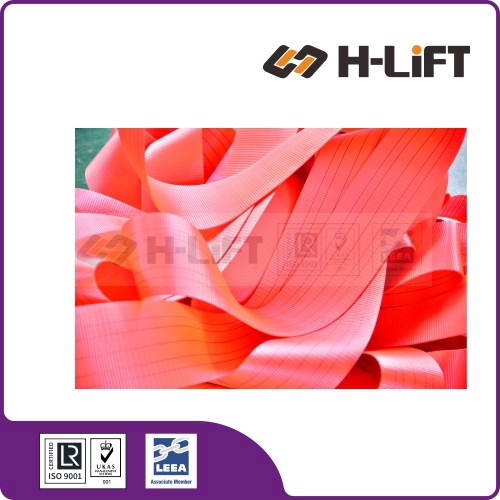

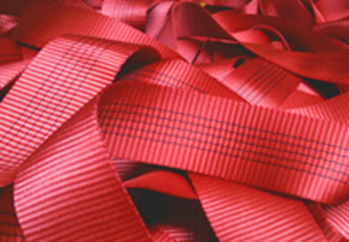

5T Sling Webbing (Red)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB5T5F |
Red |
5:1 |
125 |
15625 |
306050005 |
| WB5T6F |
Red |
6:1 |
125 |
18750 |
306060005 |
| WB5T7F |
Red |
7:1 |
125/150 |
22500 |
306070005 |
| WB5T8F |
Red |
8:1 |
150 |
25000 |
306080005 |

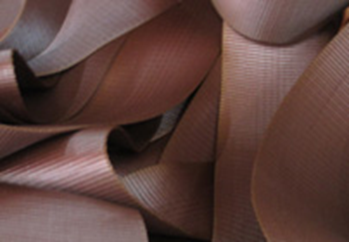

6T Sling Webbing (Brown)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB6T5F |
Brown |
5:1 |
150 |
18750 |
306050006 |
| WB6T6F |
Brown |
6:1 |
150 |
22500 |
306060006 |
| WB6T7F |
Brown |
7:1 |
150/180 |
27000 |
306070006 |
| WB6T8F |
Brown |
8:1 |
180 |
30000 |
306080006 |

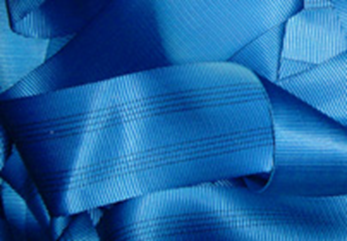

8T Sling Webbing (Blue)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB8T5F |
Blue |
5:1 |
200 |
25000 |
306050008 |
| WB8T6F |
Blue |
6:1 |
200 |
30000 |
306060008 |
| WB8T7F |
Blue |
7:1 |
200/240 |
36000 |
306070008 |
| WB8T8F |
Blue |
8:1 |
240 |
40000 |
306080008 |

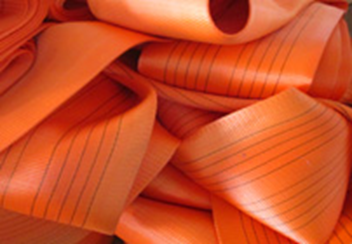

10T Sling Webbing (Orange)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB10T5F |
Orange |
5:1 |
250 |
31250 |
306050010 |
| WB10T6F |
Orange |
6:1 |
250 |
37500 |
306060010 |
| WB10T7F |
Orange |
7:1 |
250/300 |
45000 |
306070010 |
| WB10T8F |
Orange |
8:1 |
300 |
50000 |
306080010 |

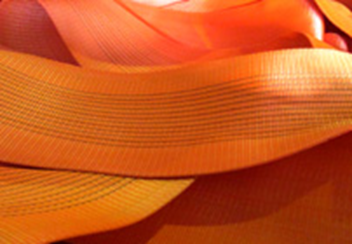

12T Sling Webbing (Orange)
| Illustration |
Item No. |
Color |
Safety Factor |
Width (mm) |
M.B.S. (kg) |
Product Code |
 |
WB12T5F |
Orange |
5:1 |
250 |
37500 |
306050012 |
| WB12T6F |
Orange |
6:1 |
250 |
45000 |
306060012 |
| WB12T7F |
Orange |
7:1 |
300 |
54000 |
306070012 |
| WB12T8F |
Orange |
8:1 |
300 |
60000 |
306080012 |
