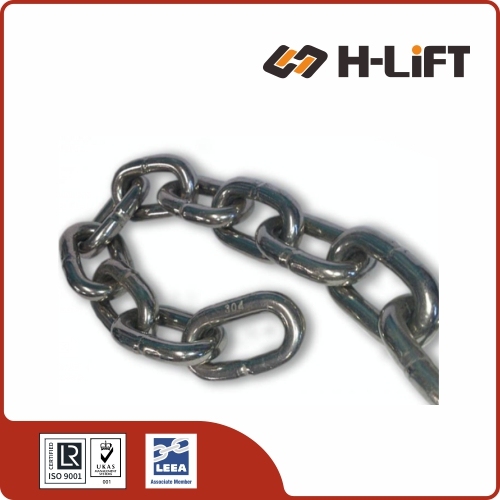

The H-Lift Stainless Steel Australian Standard Chain is a commercial-grade, medium-link chain manufactured and proof-tested to Australian specifications, designed specifically for rigorous marine and outdoor environments.
Constructed from high-quality AISI 316 marine-grade or AISI 304 stainless steel, providing exceptional resistance to corrosion and saltwater.
Features an electropolished surface that delivers a superior, smooth finish for both enhanced durability and aesthetic appeal.
Available in medium link wire diameters ranging from 4mm to 10mm to accommodate a wide variety of architectural, securing, and general utility needs.
Strictly designed for static loading and general outdoor applications; it is not approved or rated for industrial overhead lifting.
AISI 304 / 316 | Electropolished | Medium & Short Link
The Stainless Steel Australian Standard Chain is a premium commercial-grade link chain manufactured and proof-tested to comply specifically with Australian regional specifications. Featuring a superior electropolished surface, it is available in AISI 304 and marine-grade AISI 316 to withstand Australia's harsh coastal, marine, and industrial environments.
⚠️ SAFETY WARNING: NOT FOR OVERHEAD LIFTING. This chain is designed for static anchoring, securing, and conveying. It is an uncalibrated commercial-grade product and is NOT suitable for industrial lifting purposes or overhead suspension operations.
✅ Standard Compliance
Manufactured and tested to adhere strictly to Australian Standard specifications for commercial-grade welded link chains, ensuring reliable and consistent performance.
🛡️ Premium Material Grades
AISI 304: Ideal for general outdoor, architectural, and industrial applications. AISI 316: Provides superior resistance to rust and chloride pitting, making it the required choice for marine and saltwater environments.
✨ Electropolished Finish
Features a superior electropolished surface that delivers a high-shine aesthetic while maximizing the stainless steel's innate resistance to atmospheric effects and corrosion.

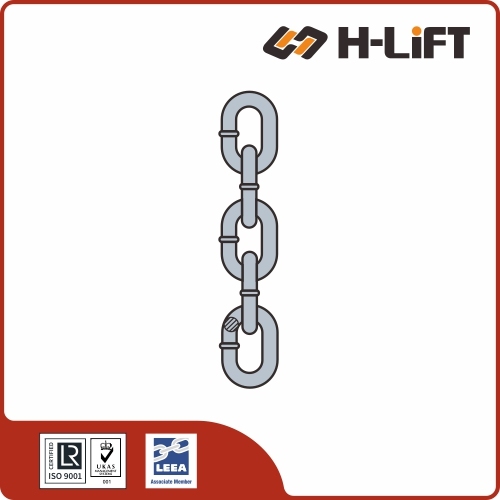

🔗 Link Configurations
Supplied in medium link (standard sizes 4mm to 10mm) and short link variations. This allows you to choose the perfect balance of flexibility and hardware clearance for your specific attachment needs.
Q: Should I choose AISI 304 or AISI 316 for outdoor use in Australia? [Image comparing AISI 304 and AISI 316 stainless steel corrosion resistance in coastal environments] A: If you are located within 5km of the coast or in a harsh industrial area, you should always choose AISI 316 (Marine Grade). It contains molybdenum, which prevents saltwater and atmospheric chlorides from pitting the steel. For inland, less demanding outdoor applications, AISI 304 is usually sufficient and more economical.
Q: Is this chain rated for lifting?A: No. This is an uncalibrated commercial chain designed for general-purpose securing, boundary marking, and marine mooring. It is not proof-tested to handle dynamic shock loads and must never be used for hoists, cranes, or overhead lifting operations.
Chain Grade Guide
What is the Difference Between Welded Chain Grades?
🚫 Carbon Steel ChainGrades 30, 43, 70 Used for tie-downs, towing, and securement. NEVER used for overhead lifting.
✅ Alloy Steel ChainGrades 80, 100 Specifically designed and heat-treated for Overhead Lifting and Sling Assemblies.
How is "Grade" Calculated?
The grade number represents the chain's tensile strength (mean stress value). It is calculated by dividing the tensile force (Newtons) by the cross-sectional area of the two links ($mm^2$).
As the Grade Increases:
The material becomes harder and more resistant to abrasion.
The Strength-to-Weight ratio increases (more lifting power, less weight).
The Working Load Limit (WLL) increases significantly.
Towing, general utility, load securement. Stronger than G30.
NO
Grade 70 (Transport)
Heat-Treated Carbon
Heavy Duty Securement. Standard for trucking tie-downs. Identified by Gold/Yellow finish.
NO
Grade 80 (Alloy)
Alloy Steel
Standard Lifting Slings. High ductility (stretch) to absorb shock.
YES
Grade 100 (Premium)
Alloy Steel
Heavy Lifting. 25% stronger than G80. Harder surface for abrasion resistance.
YES
Common Problems & Critical Safety Warnings
Even with the correct grade, misuse can lead to catastrophic failure. Ensure your riggers are trained to avoid these three common hazards:
⚠️ 1. The Hoist Chain Trap
A frequent and dangerous mistake is using the load chain inside a hoist to wrap around a load.
The Design: Hoist load chain is hardened specifically to fit internal sprockets (tight tolerances). It lacks the ductility (stretch) required for a sling.
The Risk: Wrapping it around a load deforms the links. When retracted, the deformed links can snap or destroy the internal hoist mechanism.
⚠️ 2. The "Gold Chain" Error
Using Grade 70 (Gold) chain for overhead lifting is a common error because the chain looks robust.
Why it Fails: Grade 70 is heat-treated for abrasion resistance (for rubbing against truck beds), not for the elongation needed to absorb the dynamic shock of a crane lift. It may snap suddenly without warning.
⚠️ 3. General Neglect
Alloy chain is tough, but not invincible. Proper storage and inspection are vital.
Corrosion: Leaving chain on damp shop floors promotes pitting and stress corrosion cracking.
Inspection: Chains must be inspected regularly for nicks, gouges, and elongation (stretching).
