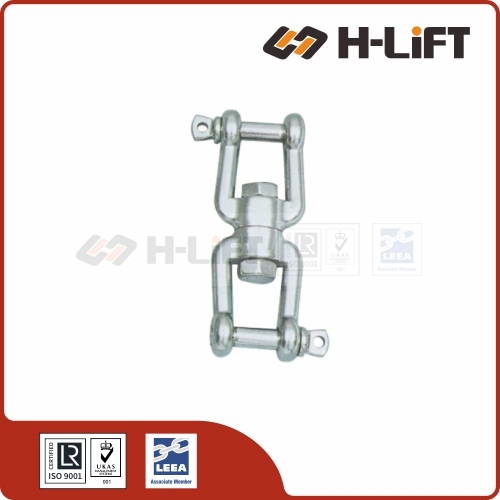

The H-Lift Stainless Steel European Swivel Jaw and Jaw is a rotating rigging connector featuring double clevis ends, designed to prevent twisting and tangling of ropes, cables, or chains in marine and architectural applications.
The Stainless Steel European Swivel (Jaw & Jaw) is an essential rigging component designed to relieve torsion in lifting and mooring systems. Featuring a central pivot point that allows for full 360-degree rotation under load, it prevents cables, wire ropes, and anchor chains from twisting and knotting. The dual jaw (fork) ends with removable pins allow for direct, secure connections to closed loops without the need for additional shackles.
Features a heavy-duty central pivot point that enables full 360-degree rotation under load. This design actively relieves torque, preventing your rigging lines from tangling or sustaining structural damage.
Both ends feature a U-shaped "jaw" (or fork) fitting complete with removable pins. This allows you to securely attach the swivel directly to closed anchor rings, D-rings, and continuous chain links.
Available in AISI 304 for general use, and marine-grade AISI 316 for maximum resistance to saltwater corrosion. The highly polished surface also deters marine fouling and rust.
Manufactured in a comprehensive range of metric sizes from M6 to M20. These robust swivels are capable of supporting Working Load Limits (WLL) ranging from 200 kg up to 3,200 kg.
| Item No. | Size (mm) | Ø (mm) | A (mm) | B (mm) | C (mm) | Product Code |
|---|---|---|---|---|---|---|
| S-SJJ006 | M6 | 6 | 11.0 | 12.0 | 65.0 | 704146006 |
| S-SJJ008 | M8 | 8 | 15.5 | 16.0 | 86.5 | 704146008 |
| S-SJJ010 | M10 | 10 | 20.5 | 20.0 | 111.0 | 704146010 |
| S-SJJ012 | M12 | 13 | 25.5 | 26.0 | 144.5 | 704146012 |
| S-SJJ016 | M16 | 16 | 36.0 | 32.0 | 178.0 | 704146016 |
| S-SJJ020 | M20 | 19 | 41.0 | 38.0 | 213.0 | 704146020 |
