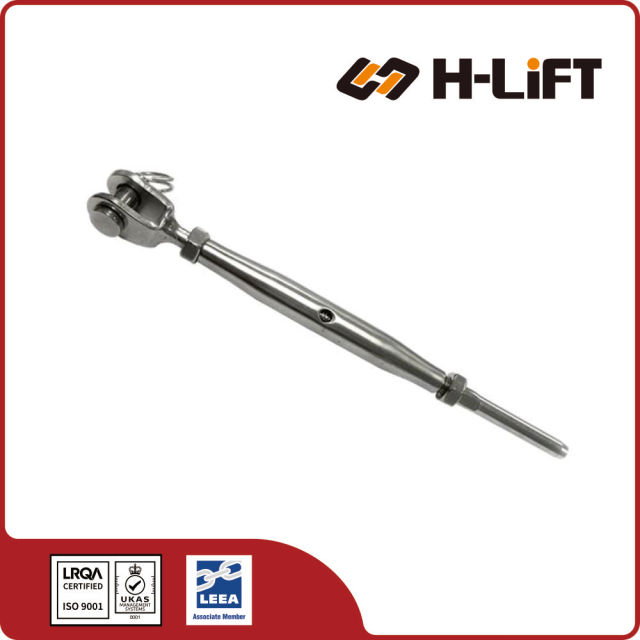

The H-Lift Stainless Steel Rigging Screw Jaw/Swage Stud type is a sleek, highly durable wire rope tensioning device designed to provide a permanent, tamper-resistant connection for architectural and marine rigging.
The Stainless Steel Rigging Screw (Jaw & Swage Stud) is a professional-grade turnbuckle designed for sleek, high-strength wire rope assemblies. Featuring an openable jaw on one end and a permanent swage stud on the other, it provides an ultra-clean termination while allowing for precise tension adjustments. It is the industry standard for architectural wire balustrades, shade sail tensioning, and sailboat stays.
Features a versatile Jaw (fork) fitting with a removable pin for easy attachment to eye bolts or anchor plates, paired with a Swage Stud terminal for a clean, streamlined connection directly to the cable.
The swage stud is designed to be mechanically cold-welded (crimped) onto a stainless steel wire rope. This creates an ultra-strong, non-removable, and aesthetically pristine termination.
The central enclosed rigging screw body (turnbuckle) allows you to easily rotate the barrel to adjust the length and tension of the load-bearing wire, making it perfect for applications requiring precise, taut lines.
Manufactured from highly polished premium stainless steel. Available in marine-grade AISI 316, providing exceptional durability and rust resistance for severe marine environments and coastal architecture.
| Item No. | Thread Size | Cable Dia. (mm) | Length Adjustment Range (mm) | Product Code |
|---|---|---|---|---|
| S-TBJ005 | M5 | 2.5 | 130 - 190 | 704120005 |
| S-TBJ006 | M6 | 3 | 150 - 220 | 704120006 |
| S-TBJ008 | M8 | 4 | 180 - 225 | 704120008 |
| S-TBJ010 | M10 | 5 | 200 - 300 | 704120010 |
| S-TBJ012 | M12 | 6 | 270 - 385 | 704120012 |
| S-TBJ014 | M14 | 7 | 300 - 425 | 704120014 |
| S-TBJ016 | M16 | 8 | 350 - 475 | 704120016 |
| S-TBJ020 | M20 | 10 | 390 - 540 | 704120020 |
