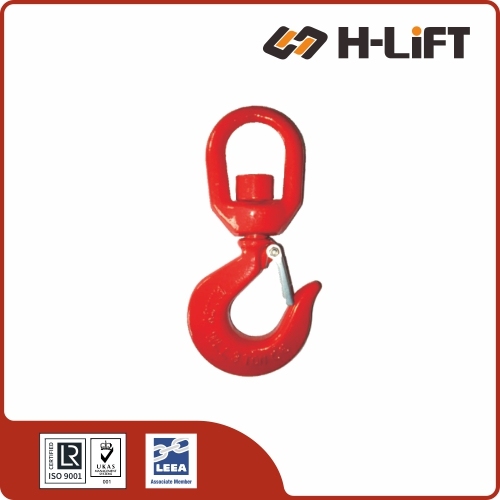

The H-Lift Swivel Hook with Latch is a rotating lifting hook that allows 360-degree manual positioning before load application, combining flexibility with secure load retention for rigging and hoisting operations.
The Swivel Hook with Latch is a versatile rigging hook featuring a positioning swivel mechanism. This allows the hook to rotate under non-load conditions for easy alignment. Available in Carbon Steel (Grade 43) for general utility and Alloy Steel (Grade 70) for heavy-duty cargo control.
Carbon (G43): 5:1 Safety Factor. For general utility.
Alloy (G70): 4.5:1 Safety Factor. High-strength for heavy transport.

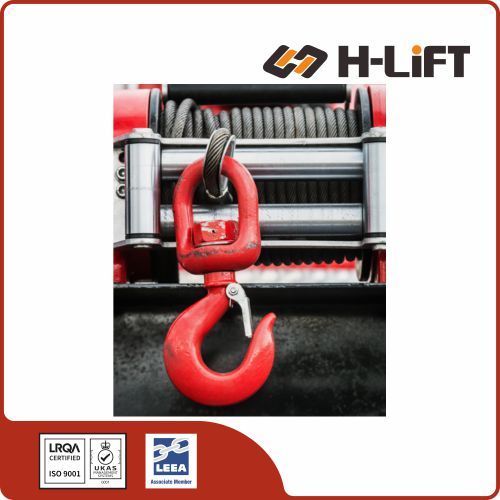

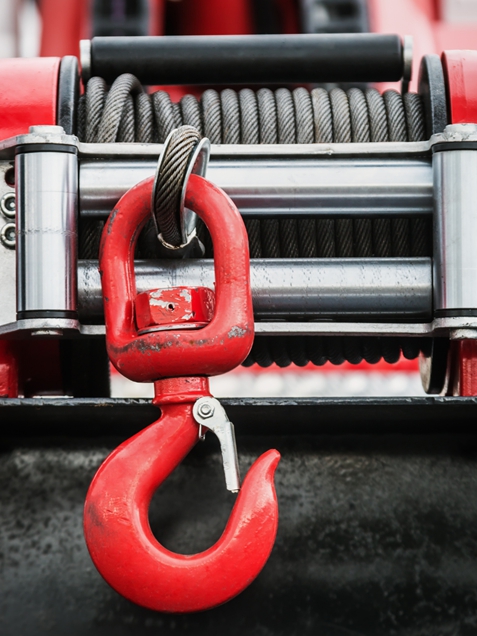

The swivel top allows for easy rotation and alignment of the hook before tension is applied, preventing twists in the rigging line.
Equipped with a durable spring-loaded latch to securely retain the sling or load, preventing accidental disengagement during operation.
Drop forged, quenched, and tempered construction ensures maximum durability, structural integrity, and shock resistance.
Refer to table for dimensions B, C, O, R, S, T| Item No. | W.L.L. (ton) | Dimensions (inch) | Weight | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | Carbon | Alloy | B | C | O | R | S | T | (lbs) | |
| HK0901C | HK0901A | 3/4 | 1 | 0.93 | 1.25 | 0.87 | 4.46 | 0.37 | 0.82 | 0.77 | 703009001 |
| HK0902C | HK0902A | 1 | 1-1/2 | 1.31 | 1.50 | 0.96 | 5.28 | 0.50 | 0.82 | 1.27 | 703009002 |
| HK0903C | HK0903A | 1-1/2 | 2 | 1.62 | 1.75 | 1.00 | 6.01 | 0.62 | 0.84 | 2.28 | 703009003 |
| HK0904C | HK0904A | 2 | 3 | 1.56 | 1.75 | 1.12 | 6.37 | 0.62 | 1.19 | 2.60 | 703009004 |
| HK0905C | HK0905A | 3 | 4-1/2 | 1.75 | 2.00 | 1.34 | 7.40 | 0.75 | 1.37 | 4.81 | 703009005 |
| HK0906C | HK0906A | 5 | 7 | 2.31 | 2.50 | 1.68 | 9.59 | 1.00 | 1.78 | 10.40 | 703009006 |
| HK0907C | HK0907A | 7-1/2 | 11 | 2.37 | 2.75 | 2.06 | 11.12 | 1.12 | 2.12 | 16.42 | 703009007 |
| HK0908C | HK0908A | 10 | 15 | 2.81 | 3.12 | 2.25 | 11.93 | 1.25 | 2.50 | 23.40 | 703009008 |
| HK0909C | HK0909A | 15 | 22 | 4.00 | 4.00 | 2.34 | 16.83 | 1.50 | 2.83 | 54.90 | 703009009 |
