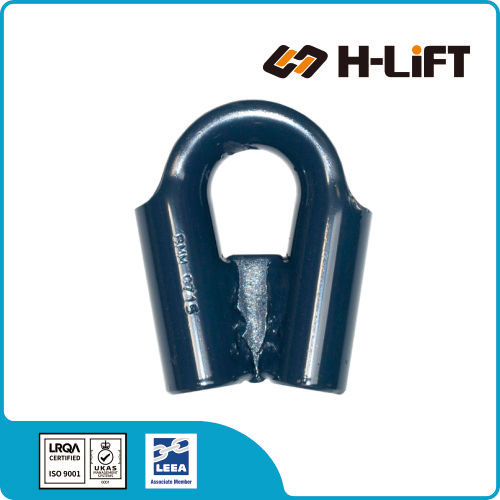

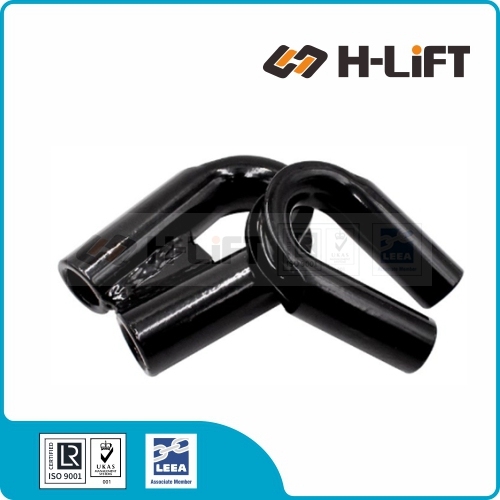

The H-Lift Tube Thimble with Gusset is a high-performance rigging reinforcement engineered for extreme durability in towing, marine, and off-road recovery applications. Featuring a fully enclosed tubular body reinforced with a central welded gusset plate, it offers unmatched resistance to eye crushing and deformation under heavy shock loads, providing superior protection for both wire and synthetic rope eyes compared to standard open thimbles.

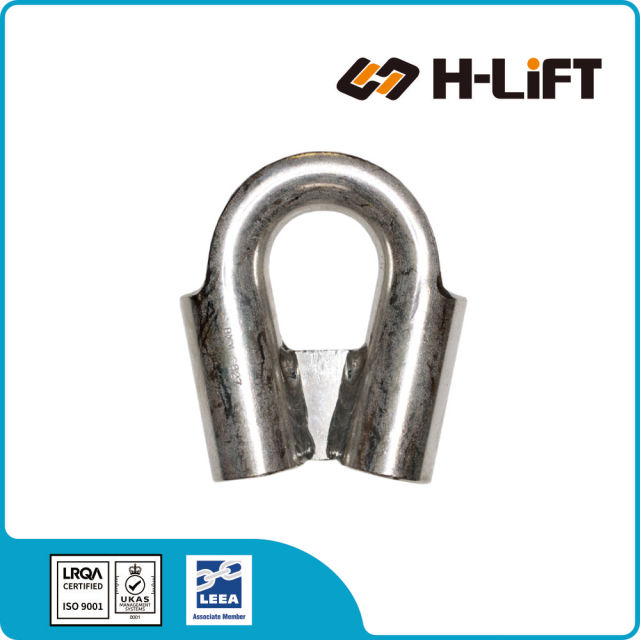

The Reinforced Tube Thimble with Gusset is the ultimate solution for heavy-duty eye protection. Featuring a fully enclosed tubular body and a welded steel gusset plate, it offers exceptional structural rigidity to prevent crushing under high tension, making it ideal for towing, recovery, and marine applications.
Equipped with a welded steel gusset plate between the legs. This critical addition adds structural rigidity, preventing the eye from deforming or collapsing under extreme loads.
Features a fully enclosed tubular body. This design wraps completely around the rope loop, providing superior protection against abrasion and cutting compared to open thimbles.
Perfect for both Wire Rope and Synthetic Ropes (e.g., Dyneema). The smooth tubular surface eliminates sharp edges that could damage fibers.
Available in Self-Color, Electric Galvanized, Hot Dip Galvanized, or Painted finishes to suit various environmental conditions and marine requirements.
| Item No. | For Wire Max. | Dimensions (mm) | Weight | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | A | B | C | D | E | F | kg | ||
| WRTTG712 | 10 | 12 | 84 | 23 | 4 | 8 | 28 | 0.28 | 604009712 |
| WRTTG715 | 12 | 15 | 95 | 27 | 5 | 8 | 32 | 0.46 | 604009715 |
| WRTTG717 | 14 | 17 | 100 | 27 | 5 | 8.5 | 32 | 0.52 | 604009717 |
| WRTTG719 | 16 | 19 | 112 | 32 | 5 | 12 | 37 | 0.68 | 604009719 |
| WRTTG722 | 18 | 22 | 125 | 35 | 5 | 13 | 40 | 0.81 | 604009722 |
| WRTTG725 | 22 | 25 | 150 | 45 | 6 | 15 | 50 | 1.41 | 604009725 |
| WRTTG728 | 24 | 28 | 157 | 45 | 7 | 16 | 50 | 1.87 | 604009728 |
| WRTTG730 | 25 | 30 | 170 | 47 | 7 | 18 | 52 | 2.2 | 604009730 |
| WRTTG735 | 32 | 35 | 190 | 60 | 7 | 21 | 65 | 2.79 | 604009735 |
| WRTTG740 | 36 | 40 | 212 | 70 | 7 | 25 | 75 | 3.46 | 604009740 |
| WRTTG745 | 38 | 45 | 228 | 70 | 7 | 26 | 75 | 4.14 | 604009745 |
| WRTTG750 | 42 | 50 | 255 | 75 | 7 | 28 | 80 | 5.12 | 604009750 |
| WRTTG755 | 48 | 55 | 268 | 80 | 7 | 31 | 85 | 6.19 | 604009755 |
