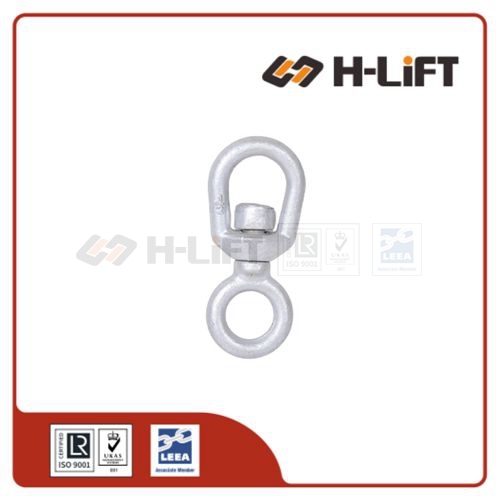

The H-Lift U.S. Type Chain Swivel is a rotating connector that prevents chain twist and tangling in rigging assemblies, allowing free rotation between chain sections or between chain and lifting equipment.

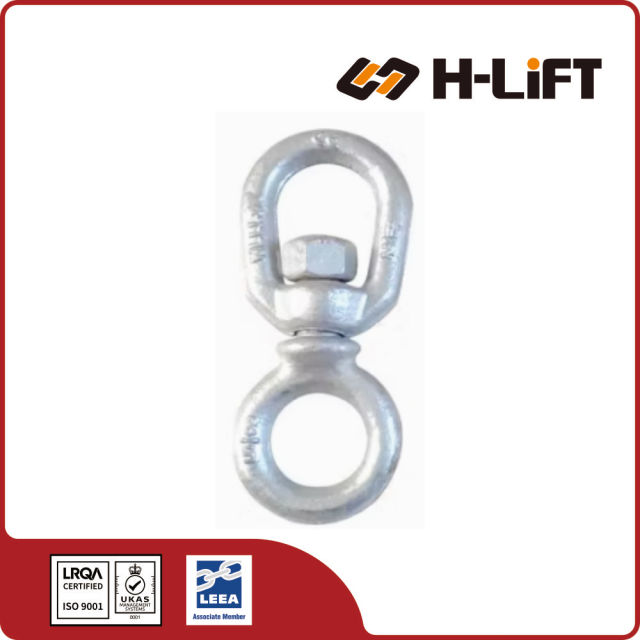

The G401 Chain Swivel is an industrial-standard positioning device manufactured to Federal Specification RR-C-271. Designed with narrow, elongated eyes specifically to fit into chain links, it helps align rigging assemblies and remove twists before a load is applied. Finished with Hot Dip Galvanizing for superior corrosion resistance.
Features narrow, elongated eyes optimized to fit directly into chain links. This maintains a streamlined assembly line, unlike bulky regular swivels.
Manufactured from drop forged carbon steel, quenched and tempered. This process ensures maximum durability and shock resistance for industrial use.
Finished with Hot Dip Galvanizing (HDG), providing a thicker, more durable coating than standard zinc plating for superior rust resistance in harsh environments.
Meets the requirements of Federal Specification RR-C-271 (Type VII, Class 1), ensuring consistent quality and performance specifications.
| Item No. | Size | W.L.L. | Dimensions (inch) | Weight | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (inch) | (lbs) | B | C | D | G | J | R | (kg) | ||
| HK2906 | 1/4 | 850 | 0.69 | 0.75 | 0.62 | 0.25 | 0.69 | 2.25 | 0.06 | 703012006 |
| HK2908 | 5/16 | 1,250 | 0.81 | 1.00 | 0.72 | 0.31 | 0.81 | 2.72 | 0.11 | 703012008 |
| HK2910 | 3/8 | 2,250 | 0.94 | 1.25 | 1.00 | 0.38 | 1.00 | 3.44 | 0.25 | 703012010 |
| HK2913 | 1/2 | 3,600 | 1.31 | 1.50 | 1.25 | 0.50 | 1.31 | 4.25 | 0.51 | 703012013 |
| HK2916 | 5/8 | 5,200 | 1.56 | 1.75 | 1.50 | 0.62 | 1.50 | 5.13 | 0.95 | 703012016 |
| HK2919 | 3/4 | 7,200 | 1.75 | 2.00 | 1.75 | 0.75 | 1.88 | 5.78 | 1.45 | 703012019 |
