U.S. type Jaw End Swivels

U.S. type Jaw End Swivels

Description

Description

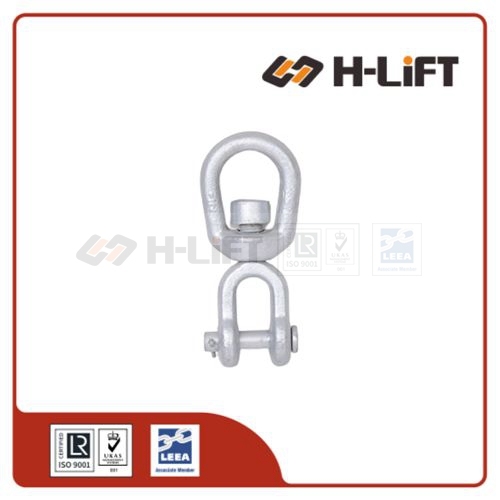

H-Lift U.S. type Jaw End Swivels

Swivels are also known as rigging swivels or chain swivels, these connections are perfect for creating specific connections between two chains or ropes, whether the connections are the same type or not, allow chain or wire ropes to rotate horizontally or vertically. They not only can help to alleviate the issue of twisting and tangling of the chains or ropes but also rotated to the required angle.

Drop forged, quenched & tempered.
Safety factor: 5:1
Electric galvanized or H.D.G.

U.S. type Jaw End Swivels

Item No.	Size	W.L.L.(lbs)	Dimensions (inch))							Weight	Product Code
Item No.	Size	W.L.L.(lbs)	A	B	C	K	N	P	R	kg	Product Code
HK3106	1/4"	850	0.69	0.69	0.75	0.47	0.88	0.25	2.63	0.11	703014006
HK3108	5/16"	1250	0.81	0.81	1.00	0.50	0.88	0.31	2.94	0.17	703014008
HK3110	3/8"	2250	1.00	0.94	1.25	0.63	1.06	0.38	3.63	0.32	703014010
HK3113	1/2"	3600	1.31	1.31	1.50	0.75	1.31	0.50	4.50	0.65	703014013
HK3116	5/8"	5200	1.50	1.56	1.75	0.94	1.50	0.63	5.31	1.12	703014016
HK3119	3/4"	7200	1.88	1.75	2.00	1.13	1.75	0.75	6.06	1.76	703014019
HK3122	7/8"	10000	2.13	2.06	2.25	1.19	2.06	0.88	7.00	2.6	703014022
HK3125	1"	12500	2.38	2.31	2.50	1.75	2.81	1.13	8.56	4.65	703014025
HK3132	1-1/4"	18000	3.00	2.69	3.13	2.06	2.81	1.38	9.44	7.15	703014032
HK3138	1-1/2"	45200	3.75	4.19	4.00	2.88	4.44	2.25	14.74	24.8	703014038
