U.S. type Regular Swivels

No.703013
Swivels are also known as rigging swivels or chain swivels, these connections are perfect for creating specific connections between two chains or ropes, whether the connections are the same type or not, allow chain or wire ropes to rotate horizontally or
  • U.S. type Regular Swivels
  • U.S. type Regular Swivels

Specification

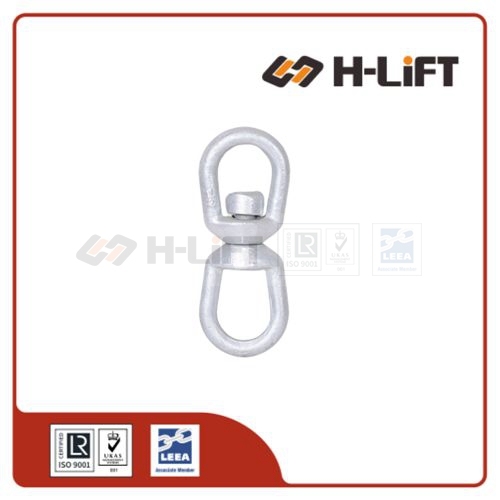

H-Lift U.S. type Regular Swivels

  • Swivels are also known as rigging swivels or chain swivels, these connections are perfect for creating specific connections between two chains or ropes, whether the connections are the same type or not, allow chain or wire ropes to rotate horizontally or vertically. They not only can help to alleviate the issue of twisting and tangling of the chains or ropes but also rotated to the required angle.
  • Drop forged, quenched & tempered.
  • Safety factor: 5:1
  • Electric galvanized or H.D.G.
Rigging Swivel



Item No. Size W.L.L.(lbs) Dimensions (inch) Weight Product Code
A B C D R kg
HK3006 1/4" 850 0.69 0.69 0.75 1.06 2.94 0.10 703013006
HK3008 5/16" 1250 0.81 0.81 1.00 1.25 3.56 0.18 703013008
HK3010 3/8" 2250 1 0.94 1.25 1.50 4.31 0.34 703013010
HK3013 1/2" 3600 1.31 1.31 1.50 2.00 5.44 0.60 703013013
HK3016 5/8" 5200 1.5 1.56 1.75 2.38 6.56 1.12 703013016
HK3019 3/4" 7200 1.88 1.75 2.00 2.63 7.19 1.82 703013019
HK3022 7/8" 10000 2.13 2.06 2.25 3.06 8.38 2.84 703013022
HK3025 1" 12500 2.38 2.31 2.50 3.50 9.63 4.06 703013025
HK3032 1-1/4" 18000 3 2.69 3.13 2.69 11.13 7.43 703013032
HK3038 1-1/2" 45200 3.75 3.88 4.00 4.18 17.13 20.77 703013038
