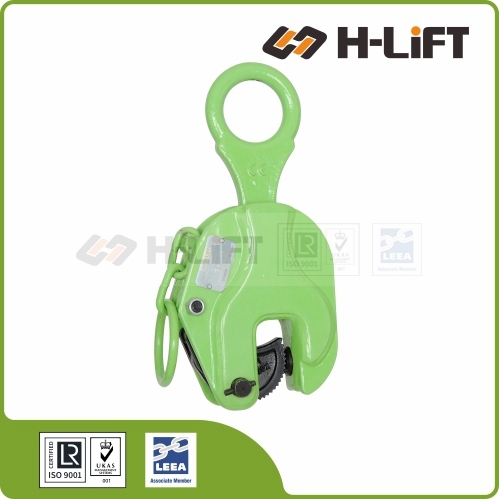

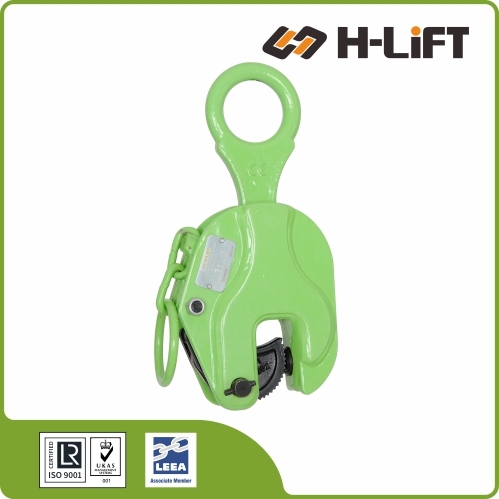

Vertical Lifting Clamp VLC-A type

Item No.: 1601
This vertical lifting clamp is designed for vertical lifting, transporting and turning of all steel plates and structures. Vertical Lifting Clamps make light work of lifting sheet metal in a vertical position by gripping down securely on steel plates.
Description Safe Use of Lifting Clamp
Description
Vertical Lifting Clamp
H-Lift Verical Lifting Clamp, VLC-A type:
This vertical lifting clamp is designed for vertical lifting, transporting and turning of all steel plates and structures. Vertical Lifting Clamps make light work of lifting sheet metal in a vertical position by gripping down securely on steel plates using teeth like jaws.
For vertical lifting, transporting and turning of all steel plates and structures.
Min. WLL is 10% of max. WLL.
Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
Lightweight design for easy handling.
Tough quality heavy duty welded shell body.
Maintenance-friendly, easy to exchange parts which are available upon request.
These clamps are only suitable for lifting single plate with a surface hardness below 30 Rockwell C (HRC).
Vertical Lifting Clamp
Vertical Lifting Clamp
Vertical Lifting Clamp

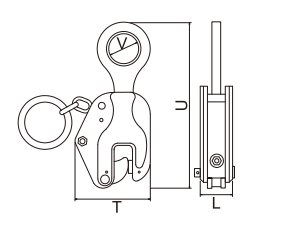

Item No. Capacity Proof Load Jaw Opening Dimensions(mm) N. W. Product Code
t kN mm T U V L kg
VLCA008 0.8 15.68 0-16 123 265 40 44 2.8 160100800
VLCA010 1 19.6 0-22 124 295 50 54 3.6 160101000
VLCA020 2 39.2 0-30 154 385 54 56 5.5 160102000
VLCA030 3 58.8 0-40 180 400 60 72 10 160103000
VLCA050 5 98 0-50 222 483 68 76 17 160105000
VLCA080 8 156.8 0-60 265 535 65 90 26 160108000
VLCA100 10 196 0-90 290 600 80 95 32 160110000
VLCA120 12 235.2 25-90 408 700 80 113 48 160112000
VLCA160 16 313.6 60-125 465 780 100 121 80 160116000
VLCA200 20 392 0-90 563 933 100 140 149 160120000
VLCA300 30 588 10-90 568 918 100 142 155 160130000

Safe Use of Lifting Clamp
Lifting Clamp
Universal Lifting Clamp
Vertical Lifting Clamp

ALWAYS:
• Store and handle lifting clamps correctly.
• Inspect lifting clamps and accessories before use and before placing into storage.
• Put the clamp onto the plate as far as it will go.
• Check that the clamp is directly over the centre of gravity of the load.
• Ensure the clamp is fully locked or tightened onto the plate before lifting.
• Take great care to ensure the plate is fully supported before attempting to release the clamp.


NEVER:
• Use lifting clamps on hard or polished plate unless they have been specifically designed for that purpose.
• Put packing between the plate and the jaws of the clamp.
• Attempt to lift more than one plate in the clamp.
• Lower from the vertical to horizontal or vice-versa unless the clamps have been designed for that purpose.
• Obliquely load vertical lifting clamps.
• Force or wedge the hook of the lifting appliance into the eye of the clamp.



Selecting the Correct lifting clamp
Vertical lifting clamps are available in a range of capacities and designs. They may utilise a lever, cam mechanism, roller or screw to provide friction grip to the plate. Select the lifting clamp to be used and plan the lift taking the following into account:
Type of clamp - lever, cam, roller or screw action.
Capacity and plate thickness.
If a pendant chain sling is required.


NOTE 1: Some designs of clamp, particularly those with a moving cam action jaw where the initial grip is provided by a spring, have a minimum load and minimum plate thickness they can safely lift. Wherever possible refer to the manufacturer’s instructions but in the absence of specific guidance the load should not be less than 20% of the SWL and the plate thickness not less than 20% of the maximum.


NOTE 2: Some designs of lifting clamp are suitable for lifting plates from the horizontal to the vertical and the inclusion of a pendant chain to provide articulation between the clamp and lifting hook is essential. However the use of pendant chains should always be considered to prevent the hook weight being imposed on the clamp as this might cause the clamp to be released.



Storing and Handling lifting clamps
Never return damaged or dirty lifting clamps to storage. They should be dry, clean and protected from corrosion.
lifting clamps should not be dropped or thrown down.



Using lifting clamps Safely
Do not use defective lifting clamps, or accessories.
Do not use the clamp to lift a load less than 20% of the SWL or with a thickness less than 20% of the maximum unless the manufacturer’s instructions permit otherwise.
Position the clamp correctly. Place the clamp over the load centre of the plate. If the plate is long and has a tendency to bend, use two clamps equally disposed about the centre of gravity in conjunction with a spreader beam. Care must be taken to ensure no one clamp takes more than its SWL.
Put the clamp onto the plate as far as it will go.
Under no circumstances should packing be placed between the plate and the jaws nor any attempt made to lift more than one plate in the clamp.
Do not use clamps at an angle to the edge of the plate or for lowering from vertical to horizontal, or vice-versa, unless they are designed for the purpose.
Keep oil, grease and similar contaminates away from jaws which use a friction grip material to hold the plate.



In-service Inspection and Maintenance
Vertical lifting clamps should be cleaned and any moving parts lubricated at appropriate intervals, unless the suppliers specific instructions indicate otherwise.
In the case of clamps with smooth jaws lined with a friction material, care must be taken to ensure no lubricant comes into contact with the friction material.
Regularly inspect the lifting clamp and, in the event of the following defects, refer the clamp to a Competent Person for thorough examination: wear, damage or distortion to fixed and moving jaws; frame opening out or cracked; insecure, worn or bent pins, bolts etc; worn friction grip material; damaged, bent or unsatisfactory acting locking lever; tight, bent or damaged clamping threads etc; corrosion; illegible marking.


WARNING: Teeth of jaws must not be re-sharpened or re-cut unless this has been specifically approved by the maker.
