Wire Rope Pulling Hoist WRH-H type

Item No.: 1901
Wire Rope Pulling Hoist WRH-H type has an aluminium housing construction, which is a versatile and portable unit for pulling, lifting, lowering and securing loads while being easy and safe to use.
800kg x 20m, 1600kg x 20m, 3200kg x 20m, 5400kg x 20m
Description Safe Use of Wire Rope Pulling Hoist
Description

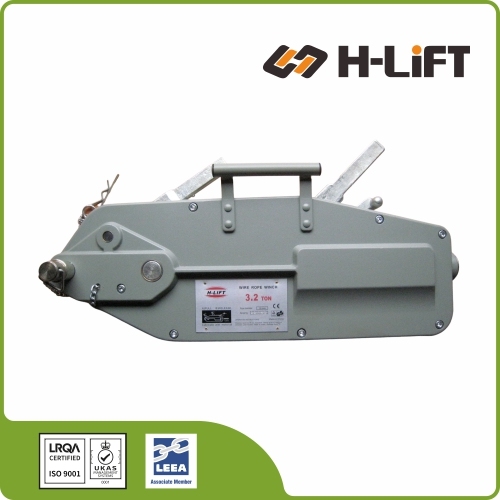

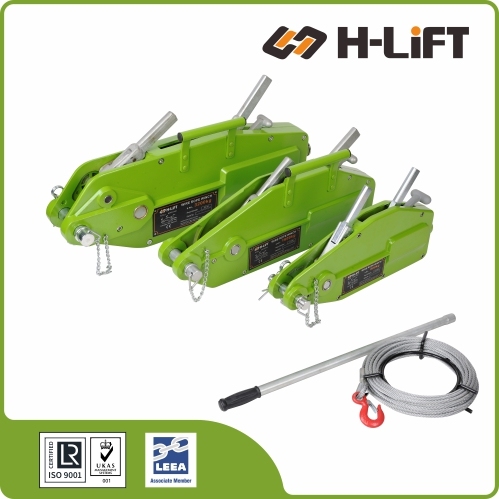

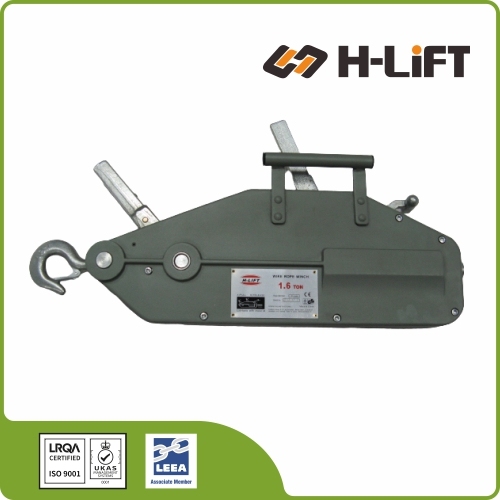

H-Lift Wire Rope Pulling Hoist, WRH-H type, Aluminium Housing Construction
H-Lift Wire rope pulling hoist is a compact and lightweight hoist that can be used for lifting, pulling and tightening over a long distance. It works with a steel wire rope running through the jaws of the hoist. The double sets of jaws open in turns so that the wire rope will always stay tight during the operation.
  • Each hoist is dynamic proof load tested 1.5 x WLL before leaving the factory, except 5400KG(1.25 x WLL).
  • Compact, lightweight construction.
  • Durable construction with powder coated finish and plated frame components.
  • Equipped with replaceable shear safety pin that prevents overloading (3 spare pins included).
  • 20 m coiled steel wire rope with latch hook is included and other lengths can be offered.
  • Spare parts available.
  • Rotating hook attached to the body is optional.
  • Material: Durable aluminium/steel construction
  • Standard: EN 13157
  • Safety Factor: 4:1
Wire Rope Pulling Hoist
Wire Rope Pulling Machine, H-Lift China
Tirfor Hoist
 pulling hoist,wire rope pulling hoist,rope pulling hoist,tirfor hoist,tirfor machine, wire rope pulling machine, wire rope pulling hoist

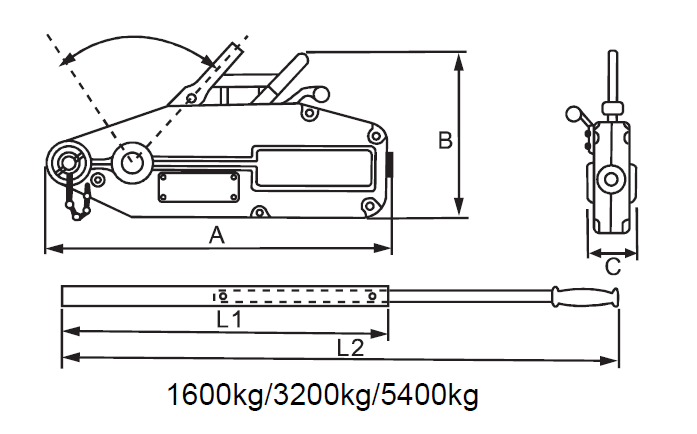

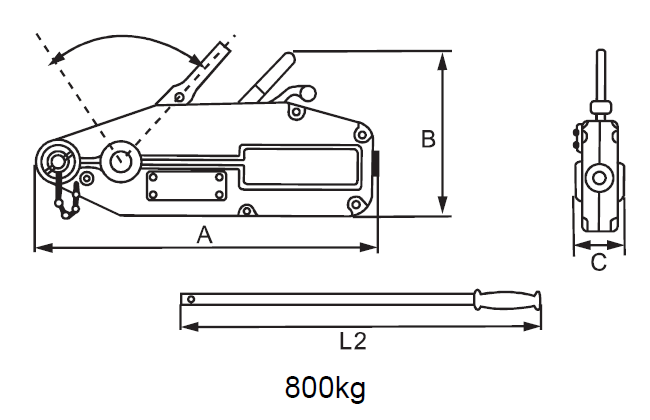

Model Rated Capacity  Rope Advance per Full Stroke  Lever Pull at WLL  Rope Diameter  Standard Length of Wire Rope  Net Weight Without Cable Cable Weight Max.Overall Size(mm) L1(cm) L2(cm) Product Code
kg mm N mm m kg kg A B C
WRH-H008 800 52 343 8.3 20 6.2 6.3 430 240 60 / 80 190100800
WRH-H016 1600 55 441 11 20 11.8 12 556 270 68 80 120 190101600
WRH-H032 3200 28 441 16 20 21.2 22.5 666 320 98 80 120 190103200
WRH-H054 5400 30 745 20 20 56.5 35 940 410 160 88 135 190105400

Safe Use of Wire Rope Pulling Hoist

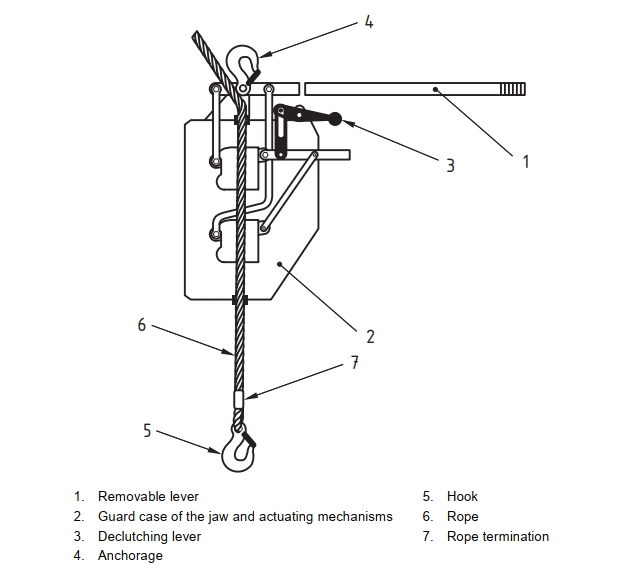

Jaw winch is a device for lifting, lowering and holding a load by means of a rope, where the rope is gripped or moved by jaws using human effort on a lever or levers.

Operation cycles is a lifting movement plus a lowering movement over the minimum vertical distance defined by the rope length corresponding to its passing over all concerned jaw winch parts.

The mechanical strength of jaw winches shall be checked by an appropriate calculation method. Jaw winches shall a coefficient of utilisation of at least 4:1

The lifting lever shall be fitted with a device which limits the effort applied through this lever. The setting of this device shall limit the lifting force to not more than 2 times the rated capacity.

The jaw winch shall withstand 400 cycles with the rated capacity with no failure, no replacement of parts, no resting time, except for lubrication of the rope.

H-Lift Wire Rope Pulling Hoist
H-Lift Jaw Winches


ALWAYS:

• Store and handle wire rope pulling hoists correctly.
• Inspect the machine, rope and accessories before use and before placing into storage.
• Ensure mounting and suspension points are secure and suitable for the full loads that will be imposed.
• Ensure the machine is free to align correctly with the rope and the rope is free of any obstructions.
• Use only the correct rope supplied for the machine.


NEVER:
• Use kinked, damaged ropes or ropes with broken wires.
• Extend or force operating levers.
• Operate raising and lowering levers at the same time.
• Use wire rope pulling hoist if the rope is twisted or trapped.
• Use wire rope pulling hoist for man-riding applications unless they are specifically designed/adapted for that purpose.



Selecting the Correct Wire Rope Pulling Hoist
Wire rope pulling hoists are available in a range of capacities, with manual operation (hydraulic operation is available for certain applications) for both lifting and pulling duties. Various rope lengths are available. Select the machine to be used taking the following into account:
Type of machine - manual, hydraulic - lifting or pulling capacity - length of rope and need for rope collecting/coiling.
Rigging arrangement - diverters, pulley blocks - anchorage and suspension points - imposed loads.
Consult the supplier if the machine is to be used for man-riding applications.



Storing and Handling Wire Rope Pulling Hoists
Never return damaged wire rope pulling hoists, ropes etc to storage.They should be dry, clean and protected from corrosion.
Rope should be carefully coiled onto a suitable drum or frame for storage, taking care to avoid any twists.
Store machines and ropes on a suitable rack, not on the floor where they may be damaged.
Installing and Commissioning
Follow any specific instructions for installation and commissioning issued by the supplier and the general requirements given overleaf.



Using Wire Rope Pulling Hoists Safely
Do not use defective wire rope pulling hoists, ropes, pulleys etc.
Check the rigging arrangement, that anchorage and suspension points are secure and adequate for the imposed loads.
Ensure the correct rope is fitted and that it is not twisted or kinked. The machine must be free to align with the rope.
For lifting operations do not exceed the marked SWL. The line pull must not exceed that stated for pulling applications.
Only use the operating lever provided with the machine and do not extend this with tubes etc. Undue force will damage the machine or cause safety pins to shear.
Do not attempt to operate the raising and lowering levers at the same time.
For man-riding applications only use a machine which has been designed or specially adapted for that purpose, following the suppliers specific instructions. Additional safety equipment will be necessary.



In-service Inspection and Maintenance
Follow the specific instructions for maintenance issued by the supplier. These should be incorporated into the site maintenance programme observing any particular needs due to the site or working conditions. Lack of lubrication will result in a jerky movement or failure to operate. Keep the machine well lubricated. It is impossible to over lubricate wire rope pulling hoists.
Regularly inspect the wire rope pulling hoist and rope and, in the event of the following defects, refer the machine to a Competent Person for thorough examination: casing damaged or distorted; shear pins distorted or broken; operating lever bent or distorted; incorrect diameter sheaves used in association with rope; incorrect rope fitted; rope is kinked, worn, corroded or has broken wires; wire rope termination is damaged, cracked or pulled; terminal fittings damaged, distorted, cracked or gouged; marking illegible; jerky operation; any other visual defects or operational faults.
