Defects to Watch For:
Refer to a Competent Person if you see: damaged casing, distorted shear pins, bent levers, incorrect rope diameter, kinked/corroded rope, broken wires, damaged terminal fittings, or jerky operation.

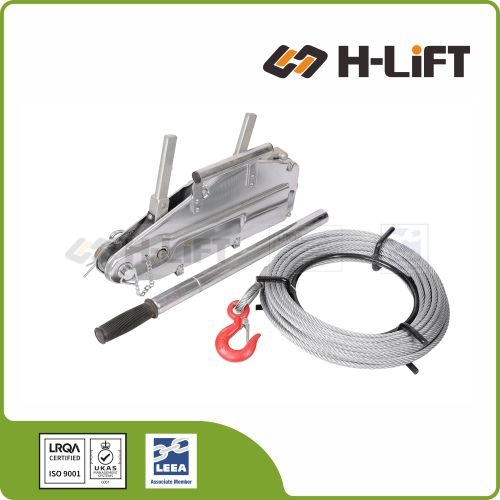

H-Lift Wire Rope Pulling Hoist WRH-HS type features durable steel casing for heavy-duty lifting, pulling, and tensioning in construction and industrial settings.
The H-Lift Wire Rope Pulling Hoist is a compact and lightweight tool designed for lifting, pulling, and tightening loads over long distances. It operates using a steel wire rope running through the body of the hoist. The specialized double sets of jaws open in alternating turns, ensuring the wire rope remains tight and secure throughout the operation.
| Item No. | Rated Capacity | Rope Advance (per stroke) | Lever Pull at WLL | Rope Dia. | Std Rope Length | N.W. (Body) | Cable Weight | Max. Overall Size (mm) | Handle Length (cm) | Product Code | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | mm | N | mm | m | kg | kg | A | B | C | L1 | L2 | ||
| WRH-HS008 | 800 | ≥52 | 353 | 8.3 | 20 | 7 | 6.3 | 435 | 245 | 70 | / | 80 | 190300800 |
| WRH-HS016 | 1600 | ≥55 | 412 | 11.0 | 20 | 12 | 12.0 | 545 | 286 | 92 | 70 | 120 | 190301600 |
| WRH-HS032 | 3200 | ≥28 | 441 | 16.0 | 20 | 23 | 22.5 | 655 | 345 | 105 | 70 | 120 | 190303200 |
* Note: Standard 20m Rope Included. Custom lengths (30m, 50m, 100m) available upon request.
A jaw winch is a portable manual lifting and pulling device. It operates by using jaws to grip and move a wire rope through the unit using human effort on a lever. It is designed for lifting, lowering, and holding loads over unlimited distances (limited only by rope length).
Consider the operation type (manual/hydraulic), required capacity (lifting vs. pulling), rope length, and rigging arrangement (diverters/pulleys). Consult the supplier if man-riding is required, as this demands specific certification.
Never store damaged equipment. Coil the rope carefully on a drum or frame to prevent kinks. Store the machine and rope on a rack, off the floor, to prevent damage and corrosion.
Check the rigging to ensure anchors are secure. Do not exceed the Safe Working Load (SWL). The rope must not be twisted. Only use the provided lever handle—undue force will shear the safety pins. Note: Man-riding requires additional safety equipment.
Follow the supplier's maintenance schedule. Lack of lubrication is a primary cause of jerky movement or failure. It is impossible to over-lubricate a wire rope pulling hoist.
