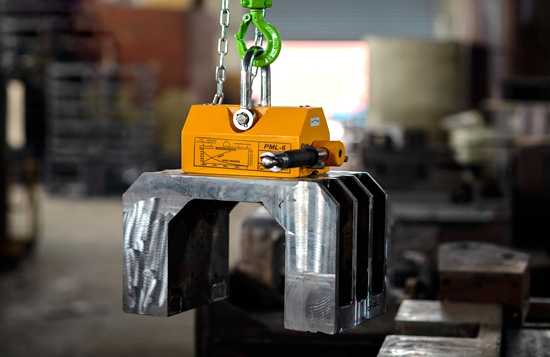

How to Select a Permanent Magnetic Lifter
Selecting the right permanent magnetic lifter requires matching it to the real load and application, then verifying that it meets safety-factor and international standard requirements. Follow this comprehensive engineering guide to ensure safe and efficient material handling.
⚠️ Critical Reality Check: Derating Capacities
A 1-ton rated magnet tested on a thick, clean, flat plate may only be capable of lifting 300–500 kg on a 6 mm rusty sheet in a real-world scenario. You must strictly follow the manufacturer's derating curves for thickness and air gaps, rather than relying solely on the maximum Working Load Limit (WLL).
6-Step Selection Matrix
1
Define Your Application
- Material: Must be ferromagnetic (carbon steel, low-alloy steel). Not suitable for aluminum or austenitic stainless steel.
- Load Range: Determine the minimum, typical, and heaviest single piece weight.
- Geometry: Plates vs. round bar, long beams vs. small blocks, flexible sheets, or flame-cut shapes.
- Handling Method: Single-point pick on a hook, spreader beam with multiple magnets, manual vs. crane operation.
2
Check Load, Thickness & Surface
- Thickness: Each magnet has a minimum steel thickness to reach rated capacity; thin plates achieve only a fraction of the WLL.
- Surface Condition: Gaps from rust, scale, paint, or rough machining drastically reduce holding force.
- Contact Area: Ensure the magnet pole area fully contacts the part.
- Temperature: Standard units are limited to 80–150°C. Select high-temp designs if needed.
3
Capacity & Safety Factor
- 3:1 Ratio: For permanent lifters, manufacturers design to a 3:1 ratio (breakaway force ≥ 3 × rated WLL under ideal conditions).
- Standards: ASME B30.20 requires the rated load to be ≤ 33% of the measured breakaway force on a standard test plate.
- Practical Margin: Choose a capacity that comfortably exceeds your max load, typically maintaining at least a 2:1 margin on actual service loads to allow for imperfect conditions.
4
Match Type and Layout
- Permanent vs Electro: Permanent lifters are simple and energy-free. Electro-permanent units are better for high-cycle or automated applications.
- Flat vs Round: Check separate ratings. Do not use a flat plate rating on round stock.
- Multiple Magnets: Long or flexible plates require multiple magnets on a spreader beam to control sag and avoid dangerous peel loads.
5
Verify Standards & Markings
- Compliance: Ask for compliance with ASME B30.20 and BTH-1 (or EN 13155 for EU norms).
- Clear Markings: Ensure clear permanent marking of WLL, serial number, manufacturer, and applicable standards.
- Documentation: Request documentation of the breakaway/tear-off test and the applied safety factor.
6
Evaluate Safety & Ergonomics
- Operating Handle: Must feature a positive mechanical lock in the ON position to prevent accidental release.
- Indicators: Look for visual indicators that confirm full contact has been achieved.
- Weight & Size: Ensure operators can safely manipulate the lifter by hand when placing and removing it.
- Environment: Choose corrosion-resistant housings for outdoor, humid, or abrasive environments.
