H-Lift Lashing Chain with C Hooks
The lashing chains are available in the 3 standard diameters of 9, 11 and 13mm. Those chains can have various lengths and terminals. Our standard lashing chain is fitted with C hook at each end, elephant foot is available upon request.
H-Lift Chain Tensioner or Lashing Chain Tension Lever is suitable for tensioning and lashing cargo lashing chain, the chain tensioner can shorten the length of the chain so that the chain can always be tensioned to the correct length. The tension lever is always used in combination with cargo lashing chains.

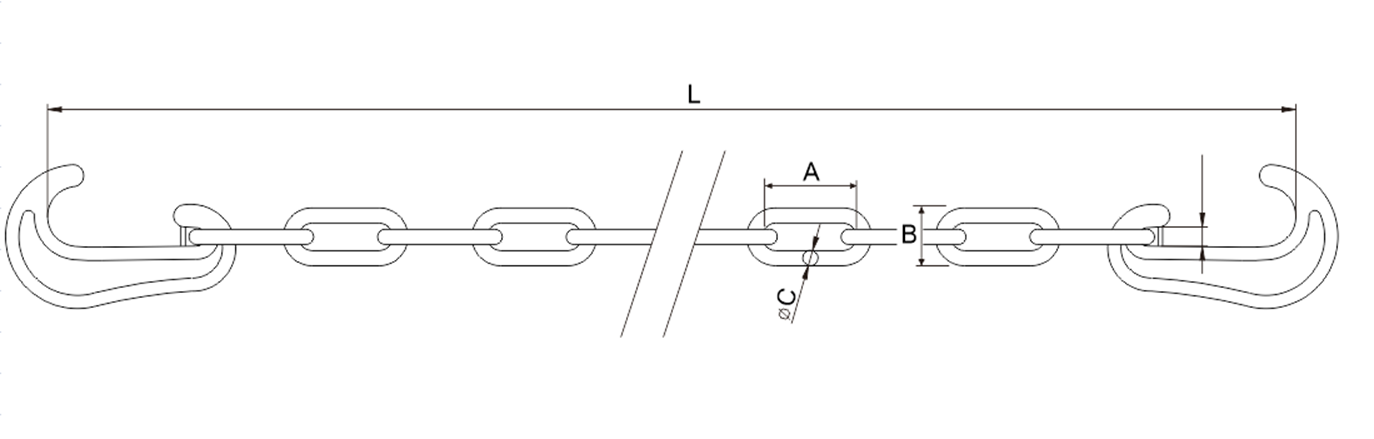

| Item No. | Size | Breaking Load | Dimensions(mm） | Weight | Product Code | |||
| mm | t | L | A | B | C | kg | ||
| LC0910 | 9 | 10 | 3500 | 57 | 34 | 10 | 5.6 | 413002009 |
| LC1115 | 11 | 15 | 3500 | 64 | 40 | 12 | 8.5 | 413002011 |
| LC1320 | 13 | 20 | 3500 | 82 | 49 | 14 | 12 | 413002013 |
