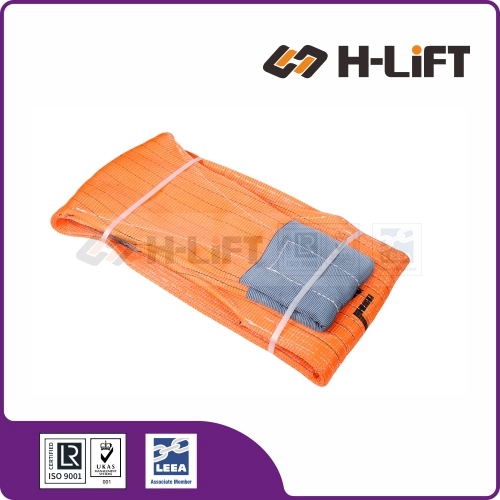

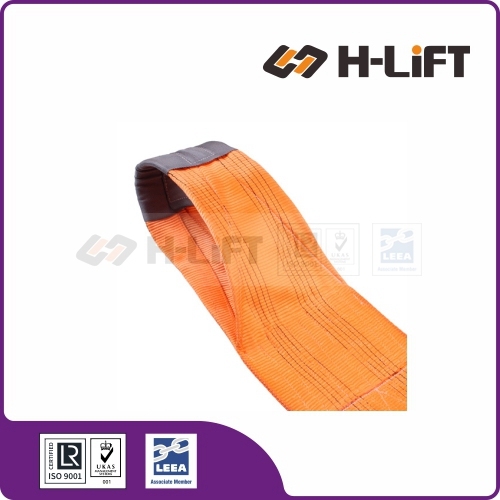

The 10 Tonne Flat Webbing Sling (Orange) is a lightweight and flexible textile lifting strap designed to safely handle ultra-heavy loads up to 10,000 kg while protecting delicate surfaces from damage.
*Diagram illustrates Straight, Choked, and Basket hitches used in the table below.
| Item No. | Color Code (EN 1492-1) |
Width (mm) |
Working Load Limits (Tonnes) by Hitch Type | Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| Straight | Choked | Basket Hitch (Angle β) | ||||||
 M=1 |
 M=0.8 |
 M=2 |
 M=1.4 |
 M=1 |
||||
| WS01-03001 | WLL 1T | 30/50 | 1 | 0.8 | 2 | 1.4 | 1 | 301003001 |
| WS01-06002 | WLL 2T | 60 | 2 | 1.6 | 4 | 2.8 | 2 | 301006002 |
| WS01-09003 | WLL 3T | 90 | 3 | 2.4 | 6 | 4.2 | 3 | 301009003 |
| WS01-12004 | WLL 4T | 120 | 4 | 3.2 | 8 | 5.6 | 4 | 301012004 |
| WS01-15005 | WLL 5T | 150 | 5 | 4 | 10 | 7 | 5 | 301015005 |
| WS01-18006 | WLL 6T | 180 | 6 | 4.8 | 12 | 8.4 | 6 | 301018006 |
| WS01-24008 | WLL 8T | 240 | 8 | 6.4 | 16 | 11.2 | 8 | 301024008 |
| WS01-30010 | WLL 10T (Orange) | 300 | 10 | 8 | 20 | 14 | 10 | 301030010 |
| WS01-30012 | WLL 12T | 300 | 12 | 9.6 | 24 | 16.8 | 12 | 301030012 |
Identify the material by the color of the label. Different materials have different chemical resistances and temperature ranges.
| Material | Label Color | Chemical Resistance | Temperature Range |
|---|---|---|---|
| Polyester (PES) | BLUE | Resistant to moderate acids. Damaged by Alkalis. |
-40ºC to 100ºC |
| Polyamide (Nylon) | GREEN | Immune to Alkalis. Damaged by Acids. |
-40ºC to 100ºC |
| Polypropylene | BROWN | Unaffected by Acids/Alkalis. Damaged by Solvents/Paints. |
-40ºC to 80ºC |
Inspect before each use. Refer to a Competent Person if you see:
