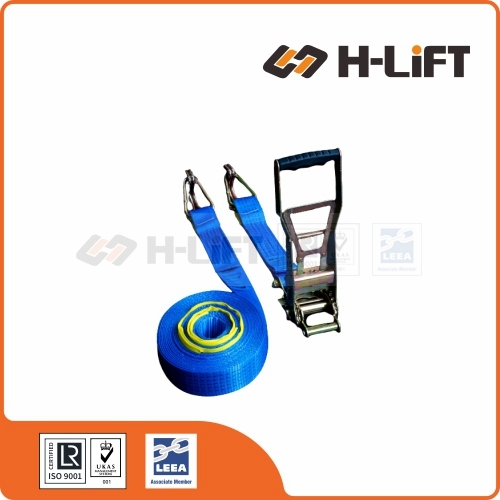

50mm LC 2500kg Ratchet Tie-down Strap with Hook & Keeper AS/NZS 4380

Item No.: 403050091
The 50mm/2500kg x 9m Ratchet Webbing Tie Down Assembly with a hook and keeper at each end is specifically designed for secure load restraint in transportation, complying with AS/NZS 4380 standards.
Description Safe Use of Ratchet Tie Down
Description
The 50mm/2500kg x 9m Ratchet Webbing Tie Down Assembly with a hook and keeper at each end is specifically designed for secure load restraint in transportation, complying with AS/NZS 4380 standards. Here are the key features:
  • Strap Specifications: The assembly includes a 50mm wide strap that is 9m long, providing ample length for securing various loads.
  • Lashing Capacity: It has a lashing capacity of 2500kg, making it suitable for heavy-duty applications.
  • Material: The strap is made from high tenacity polyester webbing, which offers durability and resistance to wear.
  • Hook and Keeper: Each end of the strap is fitted with a heavy-duty hook and keeper, ensuring secure attachment to the load and preventing slippage during transport.
  • Ratchet Mechanism: The ratchet system allows for precise tensioning, ensuring that loads are secured tightly and safely.
  • Compliance: This tie-down assembly meets AS/NZS 4380 standards, ensuring it is suitable for safe load restraint practices.
  • Durability Features: Many models include protective sleeves to enhance abrasion resistance, ensuring longevity even under heavy use.
  • Applications: Ideal for use in trailers and transport vehicles, this assembly is versatile for various load management needs.
  • Identification Tags: The strap typically includes ID tags that display lashing capacity, strap length, safety information, and date of manufacture.
This tie-down assembly is essential for ensuring compliance with safety regulations while providing reliable performance for securing heavy loads during transport

Ratchet Webbing Tie-Downs are now widely used in the transport industry. Webbing tie-downs are light-weight, easy to handle and easy to use. Although not as durable as Grade 70 chain and components webbing tie-downs are kind on the cargo and are well suited to many types of lashing applications. Webbing lashings are more elastic than chains and therefore retain more tension than a chain assembly if the load moves or settles during transport.

Ergo type ratchet or Extra long ratchet available upon request.

Item No. Strap Width(mm) Strap Length(m) Lashing Capacity (kg) End Fitting Product Code
RTD50HK5T9 50 9 2500 Hook & Keeper 403050091
Safe Use of Ratchet Tie Down



ALWAYS:

• Inspect ratchet tie downs before use.
• Calculate the lashing force(s) required for the chosen method of load restraint.
• Select the capacity and number of ratchet tie downs to provide at least the calculated lashing force(s)
• Ensure the lashing points on the vehicle and/or load are of adequate strength.
• Position the ratchet tie down so that the load is uniformly spread over its width and protect the ratchet tie down from small radii, especially sharp edges.
• Ensure the ratchet tie downs are correctly tensioned.
• Exercise care when releasing ratchet tie downs in case the load has become unstable since the lashings were applied.


NEVER:
• Use ratchet tie downs to lift a load.
• Knot or tie ratchet tie downs.
• Overload ratchet tie downs.
• Use ratchet tie downs over a sharp edge without edge protection.
• Expose ratchet tie downs to direct heat or flames.
• Expose ratchet tie downs to chemicals without consulting the supplier.
• Use ratchet tie downs which are cut, have loose or damaged stitching, a damaged tensioner or damaged terminal fittings.


Selecting the Correct Ratchet Tie Down
The standard for ratchet tie downs is AS/NZS 4380.
Ratchet tie downs are available in a range of capacities and lengths and in various configurations. Some are general purpose. Others are intended for specific applications such as securing cars by their wheels.
Next check whether the lashing points on the vehicle and/or load are of adequate strength. If necessary apply a greater number of lashings to spread the force across more lashing points.
Ratchet tie downs are marked with their lashing capacity (LC). expressed in kg.


Using Ratchet Tie Downs Safely
Ensure that the tensioner is free to align and not bent over an edge. Ensure that the webbing is not twisted or knotted and that the terminal fittings engage correctly with the lashing points.
Ensure that the webbing is loaded evenly across its width and protected from sharp and small radius edges by suitable sleeves or edge protectors

Checking the tension after travelling a short distance is recommended.
Ensure that the webbing is protected against sources of friction, abrasion and heat.


In-service Inspection and Storage
Ratchet tie downs can easily be damaged by tensioning the webbing across small radius edges or loading the edge of the webbing instead of ensuring the load is spread over its full width. Avoid this by correct placement of the ratchet tie down and the use of protective sleeves and edge protection. However damage may occur accidentally as a result of the load moving in transit hence the need to inspect before each use.  Ratchet tie downs may accidentally be exposed to chemicals. Most are manufactured from polyester which is resistant to moderate strength acids but is damaged by alkalis. Weak chemical solutions will become increasingly stronger by evaporation. If appropriate, the webbing may be cleaned with clear water and allowed to dry naturally. Never force dry ratchet tie downs.
Ratchet tie downs should be inspected for obvious signs of damage before each use. Do not use the ratchet tie down if any of the following defects are found: illegible markings; damaged, chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation; damaged or deformed end fittings.
Ratchet tie downs will deteriorate gradually over time due to normal wear. We recommends that they should be inspected by a competent person at least every 6 months and a record made of the result.

Ratchet tie downs should only be repaired by someone competent to do so.
For long term storage the storage area should be dry, clean, free of any contaminates and shaded from direct sunlight.
