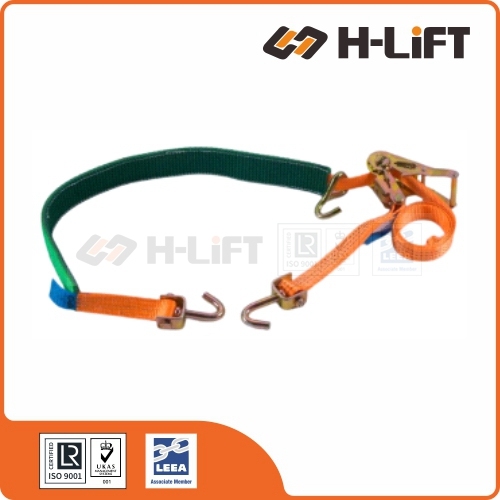

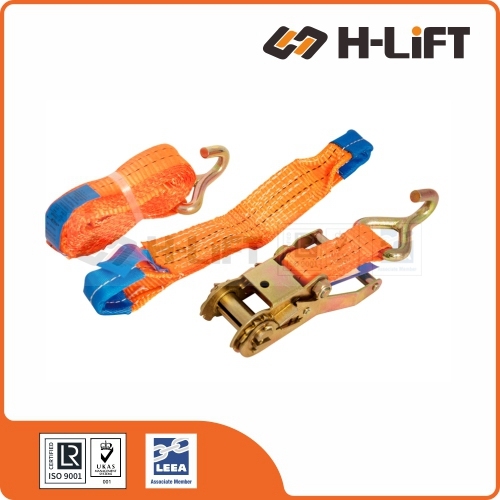

Car Fixing Lashing Strap

No.4050, 4051, 4052, 4053, 4054

The Car Fixing Lashing Strap is a highly specialized load restraint system engineered exclusively for the safe, secure, and damage-free transportation of cars, SUVs, and light commercial vehicles on flatbeds, car carriers, or Ro-Ro vessels.

  • Specialized Securement: Specifically designed for automotive transport, offering tailored securing methods that prevent vehicle shifting during transit without putting unnecessary stress on the chassis.
  • Tire/Wheel Harness Design: Typically configured to strap directly over the tires or through the wheels, allowing the vehicle's own suspension to absorb road shock and prevent tie-down loosening.
  • Heavy-Duty Hardware: Constructed with premium, low-stretch polyester webbing and equipped with robust tensioning ratchets and specialized end fittings like swivel hooks or claw hooks to fit carrier decks.
  • Standard Compliance: Manufactured to meet strict international cargo lashing standards (such as EN 12195-2), guaranteeing the required minimum breaking strength for high-capacity on-road vehicle transport.

Technical Data

Car Carrier Straps & Wheel Lashing Systems

Professional Vehicle Transport Solutions
Car Carrier Safe 3-Point Lashing Tire Protection 1000 - 2500 daN

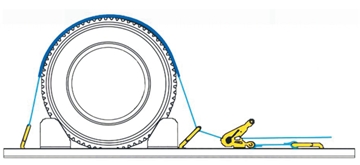

Carfix lashing strap system

Product Features

  • Professional Vehicle Transport: Designed specifically for car carriers, recovery trucks, and flatbed trailers with perforated decking.
  • Over-the-Wheel Security: The 3-point lashing system secures the vehicle by the tires, allowing the car's suspension to absorb shocks freely during transit, preventing chassis damage.
  • Tire Protection:
    • Soft Connecting Belts: Prevent webbing abrasion on expensive alloy wheels.
    • Rubber Tubes & Plastic Blocks: Provide superior grip on the tire tread to prevent slippage in wet conditions.
  • Versatile Hardware: Equipped with Swivel J Hooks (rotate 360°) or Single J Hooks for easy attachment to trailer deck holes.
  • High Capacity: Rated from 1000 daN to 2500 daN to secure everything from compact cars to heavy SUVs and vans.

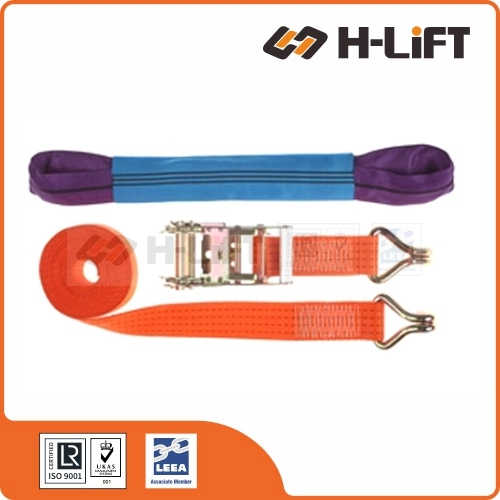

Three-Part System: Eye & Eye Round Sling

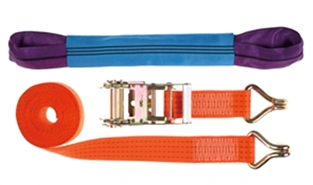

Lashing strap with round sling
Item No. Width
(mm)
Length Components (m) Connecting Belt LC
(daN)
Hook Type Product Code
LGF LGL
CLS3520-1 35 0.3 3.0 35mm / 0.4m 1000 Double J / Single J / Swivel J 405035100
CLS3530-1 35 0.3 3.0 35mm / 0.4m 1500 Double J / Single J / Swivel J 405035150
CLS5030-1 50 0.3 3.0 50mm / 0.3m 1500 Double J / Single J / Swivel J 405050150
CLS5040-1 50 0.3 3.0 50mm / 0.3m 2000 Double J / Single J / Swivel J 405050200
CLS5050-1 50 0.3 3.0 50mm / 0.3m 2500 Double J / Single J / Swivel J 405050250

Three-Part System: Eye & Eye Flat Connecting Belt

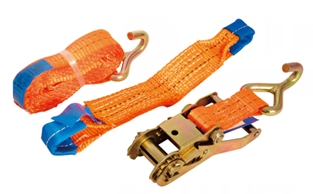

Lashing strap with flat connecting belt
Item No. Width
(mm)
Length Components (m) Connecting Belt LC
(daN)
Hook Type Product Code
LGF LGL
CLS3520-2 35 0.3 3.0 35mm / 0.4m 1000 Double J / Single J / Swivel J 405135100
CLS3530-2 35 0.3 3.0 35mm / 0.4m 1500 Double J / Single J / Swivel J 405135150
CLS5030-2 50 0.3 3.0 50mm / 0.3m 1500 Double J / Single J / Swivel J 405150150
CLS5040-2 50 0.3 3.0 50mm / 0.3m 2000 Double J / Single J / Swivel J 405150200
CLS5050-2 50 0.3 3.0 50mm / 0.3m 2500 Double J / Single J / Swivel J 405150250

Three-Part System: D-Ring Belt

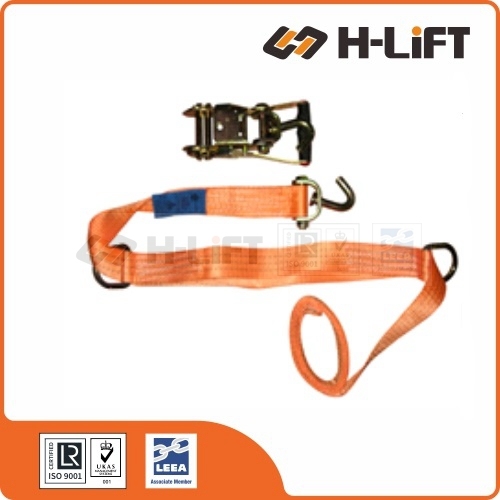

Lashing strap with D-ring belt
Item No. Width
(mm)
Length Components (m) Connecting Belt LC
(daN)
Hook Type Product Code
LGF LGL
CLS3520-3 35 No Belt 3.2 35mm / 0.4m 1000 Double J / Single J / Swivel J 405235100
CLS3530-3 35 No Belt 3.2 35mm / 0.4m 1500 Double J / Single J / Swivel J 405235150
CLS5030-3 50 No Belt 3.2 50mm / 0.3m 1500 Double J / Single J / Swivel J 405250150
CLS5040-3 50 No Belt 3.2 50mm / 0.3m 2000 Double J / Single J / Swivel J 405250200
CLS5050-3 50 No Belt 3.2 50mm / 0.3m 2500 Double J / Single J / Swivel J 405250250

Two-Part Systems: Tube Grip & Plastic Block

Green Tube Grip

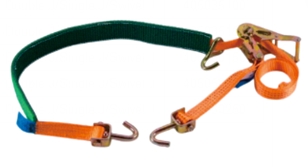

Two-part system with green tube grip

Black Plastic Block

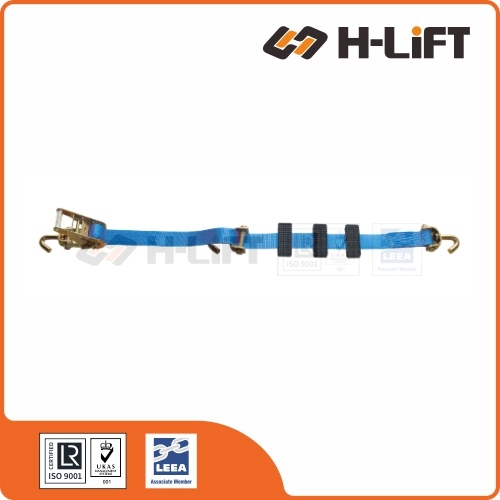

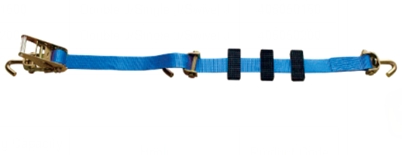

Two-part system with plastic blocks
Item No. Width
(mm)
Length Components (m) Type LC
(daN)
Hook Type Product Code
LGF LGL
CLS3520-4 35 0.3 2.2 Tube Grip 1000 Single J / Swivel J 405335100
CLS3530-4 35 0.3 2.2 Tube Grip 1500 Single J / Swivel J 405335150
CLS5040-4 50 0.3 2.2 Tube Grip 2000 Single J / Swivel J 405350200
CLS5050-4 50 0.3 2.2 Tube Grip 2500 Single J / Swivel J 405350250
CLS3520-5 35 0.3 2.2 Plastic Block 1000 Single J / Swivel J 405435100
CLS3530-5 35 0.3 2.2 Plastic Block 1500 Single J / Swivel J 405435150
CLS5040-5 50 0.3 2.2 Plastic Block 2000 Single J / Swivel J 405450200
CLS5050-5 50 0.3 2.2 Plastic Block 2500 Single J / Swivel J 405450250
